42561x8A - Murray 42" Lawn Tractor (1997) Mower Housing Assembly (part 1) Parts Diagram

42" Lawn Tractor

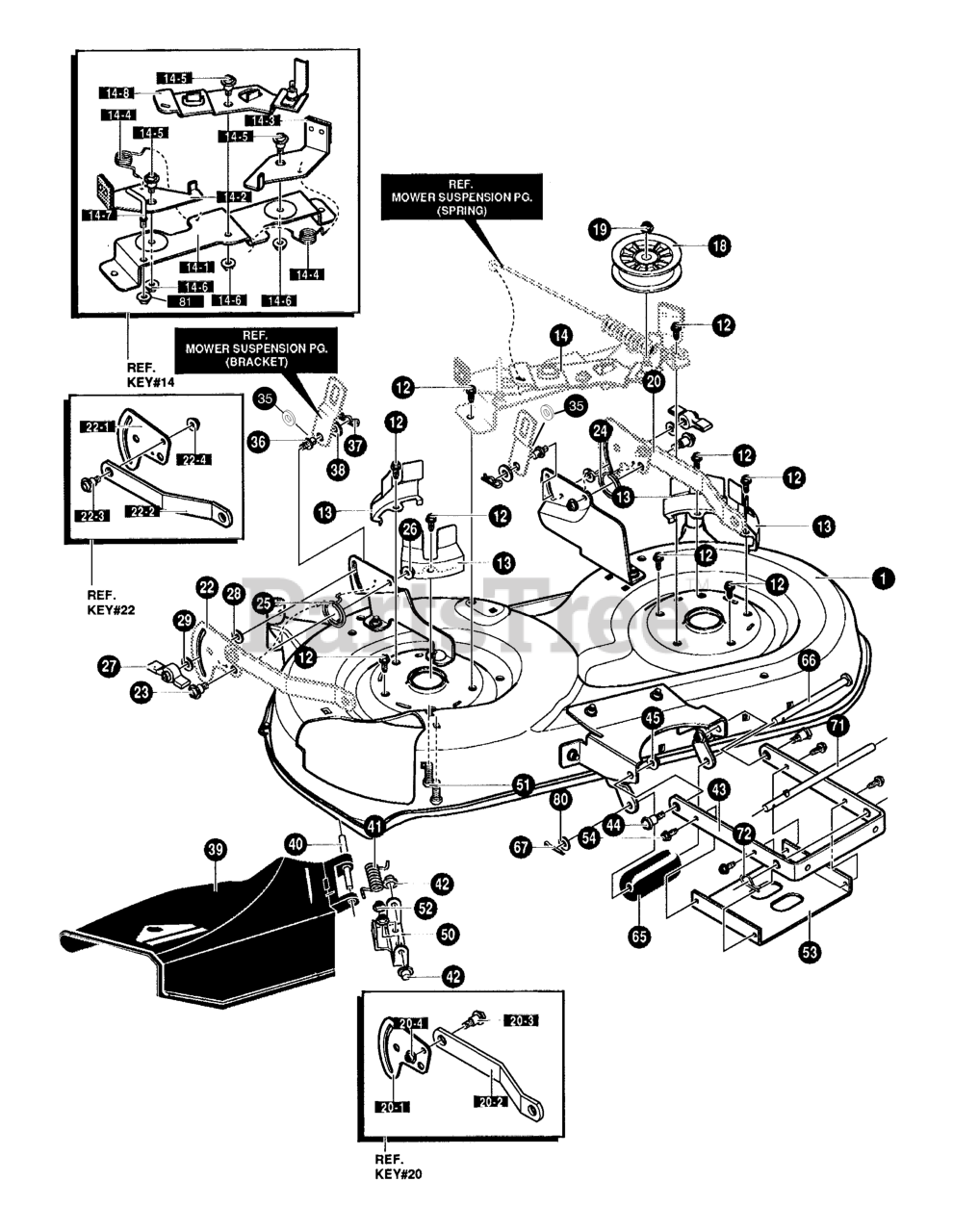

Mower Housing Assembly (part 1) Parts Diagram

  • Title
1

Murray 710774E717

ASSY 42" MOWER DECK

$

$

Currently unavailable

12

Murray 0025X7MA

SCREW, 3/8- 1 6X1 .25
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

13

Murray 94051E717

COVER, SEGMENT BELT GUIDE

$

$

Currently unavailable

14-1

Murray 94193

BRACKET, BRAKE MT

$

$

Currently unavailable

14-2

Murray 94047

ASSY BRAKE RH
(Superseded to 691633)

$4.99

$

In Stock, only 1 left!

0

14-3

Murray 94049

ASSY BRAKE RH

$

$

Currently unavailable

14-4

Murray 166X41MA

TORSION SPRING

$4.99

$

In Stock, only 2 left!

0

14-5

Murray 009X39MA

BOLT.50X.75

$6.49

$

In Stock, Qty 5

0

14-6

Murray 015X84MA

NUT, 3/8- 16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14-7

Murray 94781

SCREW GUIDE

$60.99

$

Usually ships in 2-12 days

0

14-8

Murray 94177

ASSY IDLER ARM

$213.99

$

In Stock, only 1 left!

0

18

Murray 91801

PULLEY, IDLER

$24.99

$

In Stock, Qty 5

0

19

Murray 015X84MA

NUT, 3/8- 16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

20

Murray 341594E717

PLATE, REAR SUS. BRKT. LH

$

$

Not available

20-1

Murray 94128

PLATE - SUSPENSION
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

20-2

Murray 94055

SUSPENSION BRKT REAR

$

$

Currently unavailable

20-3

Murray 009X52MA

BOLT, SHOULDER 3/8- 16

$6.49

$

In Stock, only 1 left!

0

20-4

Murray 015X84MA

NUT, 3/8- 16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

22

Murray 341593E717

PLATE, REAR SUS. BRKT. RH

$11.99

$

Usually ships in 2-12 days

0

22-1

Murray 94128

PLATE - SUSPENSION
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

22-2

Murray 94055

SUSPENSION BRKT REAR

$

$

Currently unavailable

22-3

Murray 009X52MA

BOLT, SHOULDER 3/8- 16

$6.49

$

In Stock, only 1 left!

0

22-4

Murray 015X84MA

NUT, 3/8- 16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

23

Murray 009X51MA

BOLT, SHOULDER

$4.99

$

In Stock, only 2 left!

0

24

Murray 166X43MA

SPRING, TORSION

$4.99

$

In Stock, only 2 left!

0

25

Murray 166X42MA

SPRING, TORSION

$4.99

$

In Stock, Qty 8

0

26

Murray 015X84MA

NUT, 3/8- 16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

27

$

$

Currently unavailable

28

Murray 94137

PAD, FRICTION
(Superseded to 690326)

$6.49

$

Usually ships in 2-12 days

0

29

$

$

Not available

35

Murray 30289MA

WASHER, WAVE

$6.49

$

Usually ships in 2-12 days

0

36

Murray 94064

PIN, HANGER

$

$

Currently unavailable

37

Murray 0031X4MA

PIN, HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

38

Murray 17X103MA

WASHER, FLAT

$4.99

$

In Stock, only 2 left!

0

39

Murray 94707

CHUTE DEFLECTOR
(Superseded to 094707MA)

$108.99

$

In Stock, only 3 left!

0

40

Murray 94957

ROD, CHUTE DEFLECTOR

$10.99

$

In Stock, only 1 left!

0

41

Murray 0166X4MA

SPRING, TORSION

$6.49

$

In Stock, Qty 9

0

42

Murray 028X23MA

NUT, PUSH CAP
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

43

Murray 94058E717

BRACKET, FRT SUSPENSION

$

$

Currently unavailable

44

Murray 009X51MA

BOLT, SHOULDER

$4.99

$

In Stock, only 2 left!

0

45

Murray 015X84MA

NUT, 3/8- 16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

50

Murray 94956E717

BRACKET, CHUTE

$

$

Not available

51

Murray 002X53MA

BOLT, 5/16- 18X.63
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

52

Murray 015X88MA

NUT, 5/16- 18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

53

Murray 94604E717

STIFFENER NLT

$

$

Currently unavailable

54

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

65

$91.99

$

Usually ships in 2-12 days

0

66

Murray 309186

ROD, SUPPORT

$

$

Currently unavailable

67

Murray 030X20MA

PIN, COTTER
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

71

Murray 94158

ROD HANGER

$28.99

$

Usually ships in 2-12 days

0

72

Murray 0031X4MA

HAIR PIN
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

80

Murray 17X103MA

FLATWASHER

$4.99

$

In Stock, only 2 left!

0

81

Murray 015X79MA

NUT, HEX
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0
