42561x8A - Murray 42" Lawn Tractor (1997) Motion Drive Assembly Parts Diagram

42" Lawn Tractor

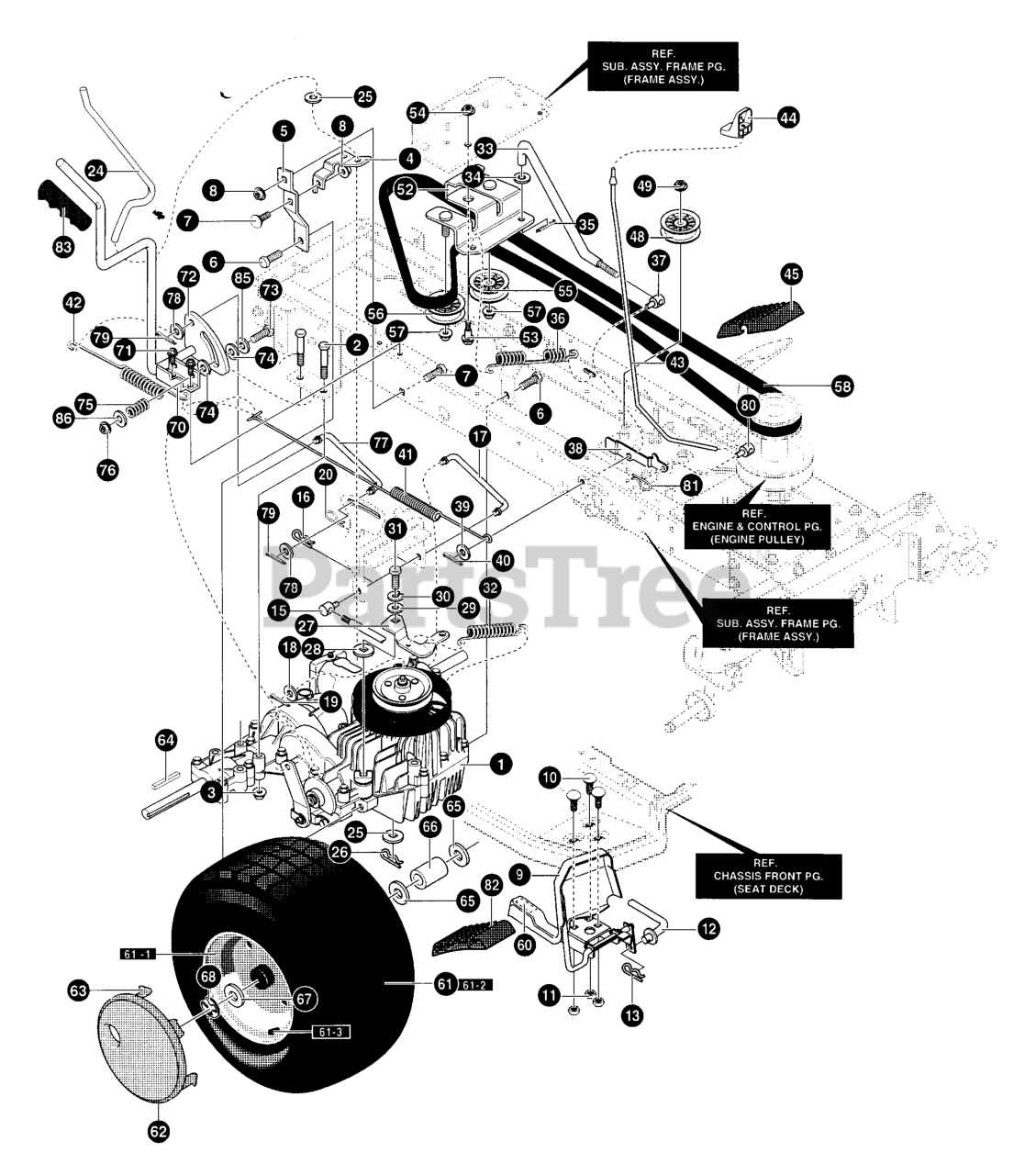

Motion Drive Assembly Parts Diagram

  • Title

1

Transaxle, Peerless **

$

$

Not available

2

Murray 01X155MA

SCREW, 5/16-18 x 2.50
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

3

Murray 015X88MA

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

4

Murray 94429-821

BRACKET, DISCONNECT

$

$

Currently unavailable

5

Murray 94432-821

TORQUE STRAP

$

$

Currently unavailable

6

Murray 26X216MA

SCREW, 5/16-18 x 0.75

$6.99

$

In Stock, Qty 5

0

7

Murray 002X53MA

BOLT
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

8

Murray 015X88MA

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

9

Murray 94422-821

ASSEMBLY, PEDAL

$28.99

$

Usually ships in 2-12 days

0

10

Murray 002X53MA

BOLT
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

11

Murray 015X79MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

12

Murray 694424

ROD, PEDAL LINK

$

$

Currently unavailable

13

Murray 0031X4MA

PIN, HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

15

Murray 92132

ADJUSTING NUT 1/2-13

$14.99

$

Usually ships in 2-12 days

0

16

Murray 0031X6MA

PIN, HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

17

Murray 694426

ROD HYDRO LINK

$10.99

$

Usually ships in 2-12 days

0

18

Murray 017X91MA

WASHER, FLAT

$5.49

$

In Stock, Qty 11

0

19

Murray 030X20MA

PIN, COTTER
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

20

Murray 0031X4MA

PIN, HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

24

Murray 94428

ROD HYRO LINK

$8.49

$

Usually ships in 2-12 days

0

25

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

26

Murray 030X20MA

PIN, COTTER
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

27

Murray 94430

ARM DISCONNECT

$

$

Currently unavailable

28

Murray 17X148MA

WASHER

$3.99

$

Usually ships in 2-12 days

0

29

Murray 17X180MA

WASHER, FLAT

$6.99

$

Usually ships in 2-12 days

0

30

Murray 018X32MA

WASHER

$3.49

$

Usually ships in 2-12 days

0

31

Murray 01X145MA

SCREW

$4.49

$

Usually ships in 2-12 days

0

32

Murray 166X112

SPRING, EXTENSION

$

$

Currently unavailable

33

Murray 94417

ROD, CLUTCH
(Superseded to 691647)

$3.99

$

In Stock, only 4 left!

0

34

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

35

Murray 030X20MA

PIN, COTTER
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

36

Murray 165X123

SPRING, CLUTCH

$

$

Currently unavailable

37

Murray 94815

NUT, ADJUSTING

$21.99

$

Usually ships in 2-12 days

0

38

Murray 94045

LATCH, PARK BRAKE

$45.99

$

Usually ships in 2-12 days

0

39

Murray 710142

WASHER, FLAT

$3.99

$

Usually ships in 2-12 days

0

40

Murray 030X20MA

PIN, COTTER
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

41

Murray 165X115MA

SPRING, EXTENSION

$21.99

$

Usually ships in 2-12 days

0

42

Murray 165X92MA

SPRING, TENSION

$5.49

$

In Stock, only 2 left!

0

43

Murray 94486

ROD, PARKING BRAKE

$6.99

$

Usually ships in 2-12 days

0

44

Murray 94485

KNOB, PARKING BRAKE

$5.99

$

Usually ships in 2-12 days

0

45

Murray 94630

PAD, CLUTCH/BRAKE

$

$

Currently unavailable

48

Murray 91179

PULLEY, IDLER

$17.99

$

In Stock, Qty 16

0

49

Murray 015X84MA

NUT, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

52

Murray 694411

BRACKET IDLER

$8.99

$

Usually ships in 2-12 days

0

53

Murray 009X39MA

BOLT

$6.49

$

In Stock, Qty 6

0

54

Murray 015X84MA

NUT, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

55

Murray 91179

PULLEY, IDLER

$17.99

$

In Stock, Qty 16

0

56

Murray 91178

PULLEY, V- IDLER 3"

$

$

Currently unavailable

57

Murray 015X84MA

NUT, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

58

Murray 037X61MA

BELT, MOTION DRIVE

$34.99

$

In Stock, Qty 17

0

60

Murray 93249

PAD, TOE

$

$

Not available

61

Murray 92300-601

TIRE & RIM 20X10-8

$

$

Currently unavailable

61-1

Murray 338512

VALVE STEM

$

$

Not available

61-2

Murray 338524

RIM, CARL

$

$

Currently unavailable

61-3

Murray 338527

TIRE 20X10-8

$

$

Currently unavailable

62

Murray 94481MA

HUB CAP 8"

$24.99

$

Usually ships in 2-12 days

0

63

Murray 694003MA

CLIP, HUBCAP

$3.99

$

Usually ships in 2-12 days

0

64

Murray 52928MA

KEY, SQUARE

$1.99

$

Usually ships in 2-12 days

0

65

Murray 17X160MA

WASHER, FLAT

$4.99

$

In Stock, Qty 20+

0

66

Murray 87X105 Z

SPACER

$

$

Currently unavailable

67

Murray 17X195MA

WASHER, FLAT

$4.99

$

In Stock, only 4 left!

0

68

Murray 0011X3MA

RING, RETEX

$5.49

$

In Stock, Qty 20+

0

70

Murray 94793-821

BRACKET, HAND CONTROL

$

$

Not available

71

Murray 26X249MA

SCREW 5/16-18X.75

$

$

Not available

72

Murray 694792

LEVER HAND CRUISE

$

$

Currently unavailable

73

Murray 94797

BOLT 5/16-18X.5

$1.99

$

Usually ships in 2-12 days

0

74

Murray 314944

WASHER, FRICTION

$4.99

$

Usually ships in 2-12 days

0

75

Murray 335689

SPRING - COMP

$1.99

$

Usually ships in 2-12 days

0

76

Murray 015X88MA

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

77

Murray 94796 Z

LINK, CRUISE CONTROL

$

$

Currently unavailable

78

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

79

Murray 030X20MA

PIN, COTTER
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

80

Murray 94487

CLEVIS, PARKING BRAKE

$

$

Not available

81

Murray 030X20MA

PIN, COTTER
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

82

Murray 94516

PAD, SPEED CONTROL PEDAL

$14.99

$

Usually ships in 2-12 days

0

83

Murray 94498

GRIP, 7/16" I D
(Superseded to 94498GS)

$14.99

$

Usually ships in 2-12 days

0

85

Murray 845

WASHER, FLAT

$1.49

$

Usually ships in 2-12 days

0

86

Murray 017X53 Z

WASHER, FLAT

$

$

Currently unavailable
