42561x8A - Murray 42" Lawn Tractor (1997) Engine & Control Assembly Parts Diagram

42" Lawn Tractor

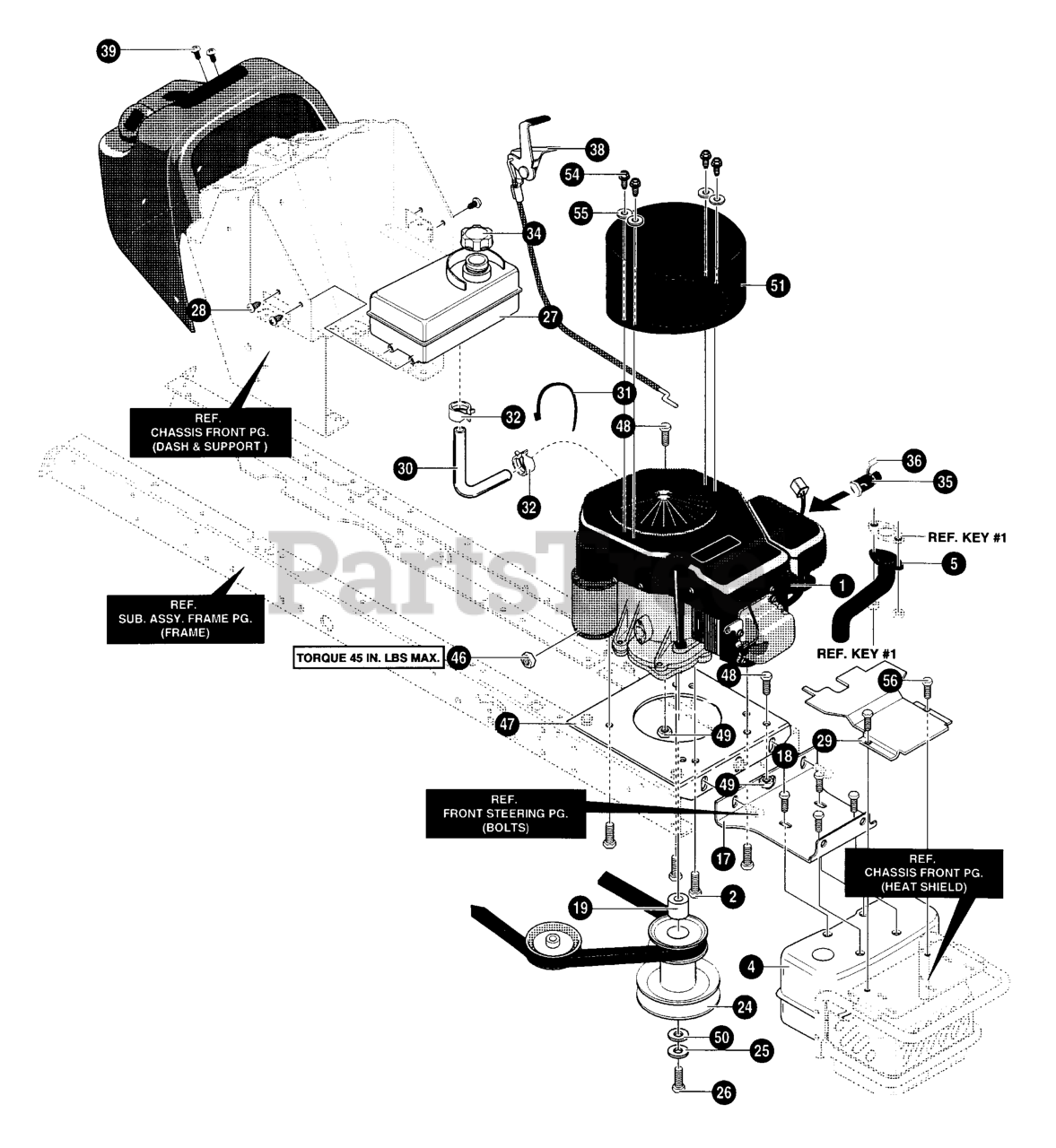

Engine & Control Assembly Parts Diagram

  • Title
1

ENGINE-15HP KOHLER

$

$

Not available

2

$3.49

$

Usually ships in 2-12 days

0

4

Murray 94654

MUFFLER, SINGLE- CYLINDER

$

$

Not available

5

Murray 94658MA

EXHAUST TUBE

$75.99

$

Usually ships in 2-12 days

0

17

Murray 94307E717

BRACKET, MUFFLER MOUNT

$

$

Currently unavailable

18

$4.49

$

In Stock, only 1 left!

0

19

Murray 93077

SPACER, SLEEVE
(Superseded to 93100)

$4.99

$

Usually ships in 2-12 days

0

24

Murray 94407

PULLEY, STACK ASSY

$

$

Currently unavailable

25

$4.99

$

In Stock, Qty 11

0

26

$5.49

$

In Stock, Qty 15

0

27

Murray 94073

TANK, FUEL 1.4 GAL.
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

28

$4.49

$

In Stock, only 1 left!

0

29

Murray 95440E717

HEAT SHIELD

$

$

Currently unavailable

30

Murray 50

LINK, FUEL

$

$

Currently unavailable

31

Murray 32618

CABLE TIE

$3.99

$

Usually ships in 2-12 days

0

32

Murray 91174

CLAMP, FUEL LINE

$

$

Currently unavailable

34

Murray 92317

CAP, FUEL
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

35

Murray 325547MA

OIL DRAIN

$

$

Not available

36

Murray 327422

CAP, OIL DRAIN

$

$

Not available

38

Murray 94502

THROTTLE CONTROL
(Superseded to 690344)

$12.99

$

Usually ships in 2-12 days

0

39

Murray 26X201MA

SCREW, #8- 16X.50

$4.49

$

In Stock, only 2 left!

0

46

Murray 15X116MA

NUT 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

47

Murray 94006E717

PLATE, ENGINE

$

$

Currently unavailable

48

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

49

Murray 015X88MA

NUT, 5/16- 18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

50

Murray 17X170MA

FLATWASHER

$

$

Not available

51

Murray 94514

PLENUM, 15HP KOHLER
(Superseded to 94514GS)

$10.99

$

Usually ships in 2-12 days

0

54

Murray 57366

SCREW 10- 16X0.5

$

$

Not available

55

Murray 017X17

WASHER, FLAT

$

$

Currently unavailable

56

Murray 710274

SCREW 1/4-20X0.63

$61.99

$

Usually ships in 2-12 days

0
