425615x99B - Briggs & Stratton 42" Lawn Tractor (2005) (AAFES) Drive Assembly Parts Diagram

42" Lawn Tractor

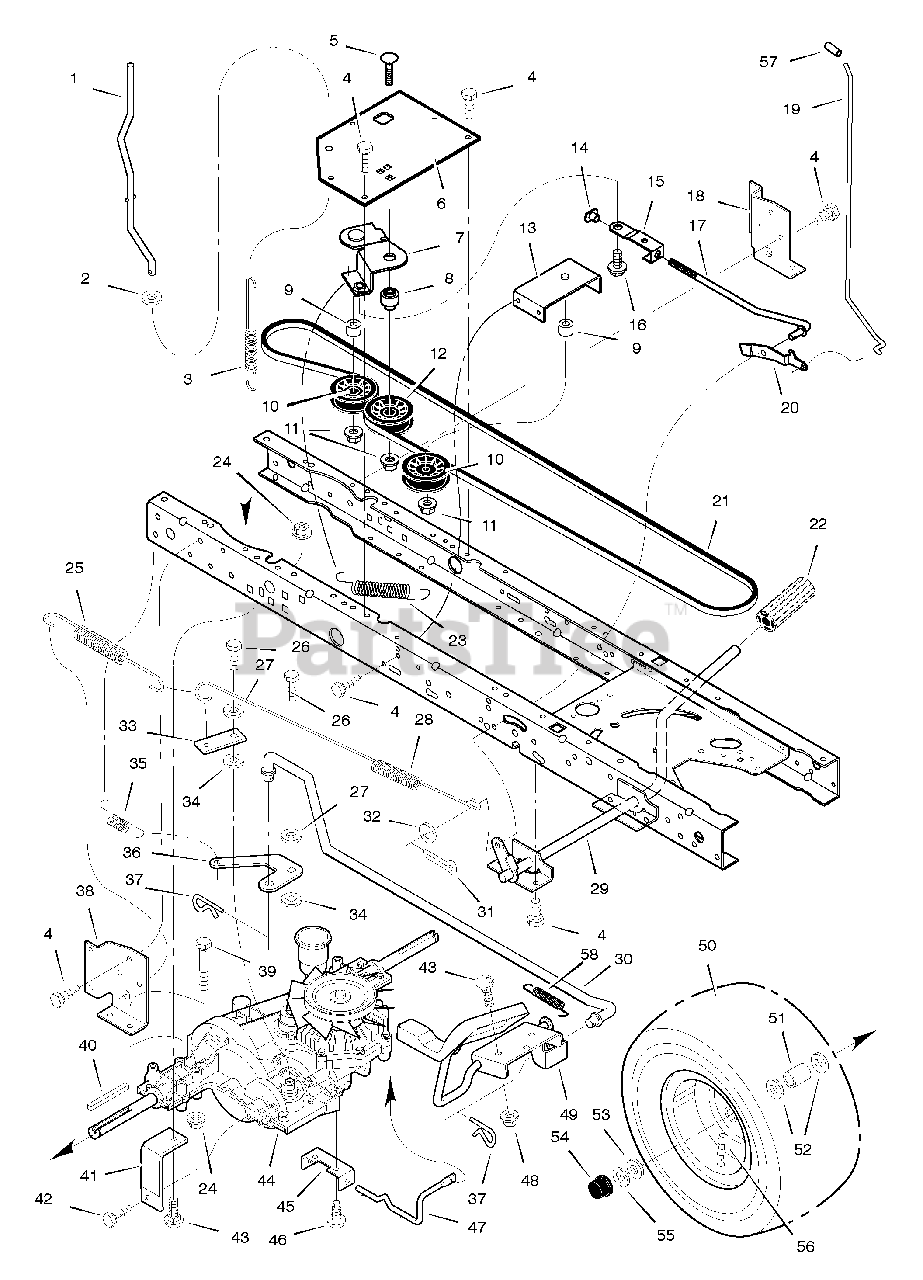

Drive Assembly Parts Diagram

  • Title

1

Murray 1001863MA

Rod, Dump

$12.99

$

Usually ships in 2-12 days

0

2

Murray 017X44MA

Washer

$3.49

$

Usually ships in 2-12 days

0

3

Murray 165X136

Spring - Extension

$

$

Not available

4

Murray 26X249MA

Screw

$

$

Not available

5

Murray 002X92

Bolt, Carriage
(Superseded to 002X92MA)

$4.99

$

In Stock, only 4 left!

0

6

Murray 1001108E701

Bracket, Idler Pivot
(Superseded to 726355BMYP)

$42.99

$

Usually ships in 2-12 days

0

7

Murray 1001018 Z

Assy-Idler Arm

$

$

Currently unavailable

8

Murray 1001012MA

Pivot Bushing

$9.49

$

Usually ships in 2-12 days

0

9

Murray 690369MA

Spacer

$

$

Not available

10

Murray 690409MA

Idler Pulley

$19.99

$

In Stock, Qty 13

0

11

Murray 015X98MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Murray 690410MA

Idler Pulley

$19.99

$

In Stock, only 1 left!

0

13

Murray 1001097E701

Idler, Bracket Assy.

$22.99

$

Usually ships in 2-12 days

0

14

Murray 1001014MA

Nut-Tee

$4.99

$

Usually ships in 2-12 days

0

15

Murray 1001007 Z

Link-Clutch

$

$

Currently unavailable

16

Murray 009X49MA

Shoulder Bolt

$5.49

$

In Stock, only 1 left!

0

17

Murray 1001013 Z

Rod-Clutch

$

$

Currently unavailable

18

Murray 094008E701MA

Bracket, T/A -LH

$34.99

$

Usually ships in 2-12 days

0

19

Murray 1001245 Z

Rod-Parking Brake

$

$

Currently unavailable

20

Murray 094045 Z

Latch, Parking Brake

$

$

Currently unavailable

21

Murray 37X144MA

V-Belt, Dana Hydro

$39.99

$

Usually ships in 2-12 days

0

22

Murray 021544MA

Pedal-Clutch/Brake
(Superseded to 1727261SM)

$9.99

$

In Stock, Qty 5

0

23

Murray 165X155MA

Spring - Clutch

$6.49

$

In Stock, only 1 left!

0

24

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

25

Murray 165X92MA

Spring - Extension

$5.49

$

In Stock, only 2 left!

0

26

Murray 06X105MA

Cap Screw

$3.99

$

In Stock, only 1 left!

0

27

Murray 017X38MA

Washer

$3.99

$

Usually ships in 2-12 days

0

28

Murray 165X122

Spring - Brake

$19.99

$

Usually ships in 2-12 days

0

29

Murray 094038E701MA

Lever Brake/Clutch
(Superseded to 7400256ZMA)

$72.99

$

Usually ships in 2-12 days

0

30

Murray 1002059

Rod, Control

$93.99

$

Usually ships in 2-12 days

0

31

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

32

Murray 017X48MA

Washer

$8.49

$

Usually ships in 2-12 days

0

33

Murray 094419ZMA

Arm. Brake

$2.49

$

Usually ships in 2-12 days

0

34

Murray 17X148MA

Washer

$3.99

$

Usually ships in 2-12 days

0

35

Murray 165X127MA

Spring - Extension

$4.49

$

Usually ships in 2-12 days

0

36

Murray 094418 Z

Arm, Control

$

$

Currently unavailable

37

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

38

Murray 094008E701MA

Bracket, T/A -RH

$34.99

$

Usually ships in 2-12 days

0

39

Murray 01X155MA

Bolt, Hex
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

40

Murray 021553MA

Square Key - 3/16

$4.99

$

In Stock, only 2 left!

0

41

Murray 095022E701

Strap-Torque

$29.99

$

Usually ships in 2-12 days

0

42

Murray 26X216MA

Screw

$6.99

$

In Stock, Qty 5

0

43

Murray 002X64MA

Bolt, Carriage

$4.49

$

In Stock, only 1 left!

0

44

Transaxle, Dana Hydro 6500-3 **

$

$

Not available

45

Murray 092603 Z

Bracket, Dump Valve

$

$

Currently unavailable

46

Murray 0025X9MA

Screw - Thread Form

$3.99

$

Usually ships in 2-12 days

0

47

Murray 093247

Rod-Dump Valve

$15.99

$

Usually ships in 2-12 days

0

48

Murray 015X79MA

Nut, Hex Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

49

Murray 1002060E701

Assy-Hydro Pedal

$

$

Currently unavailable

50

Murray 092291601

Wheel & Tire

$210.99

$

Usually ships in 2-12 days

0

--

Murray 024380

Tire Only

$

$

Not available

--

Murray 407049MA

Tube Only

$68.99

$

Usually ships in 2-12 days

0

51

Murray 690553 Z

Spacer

$

$

Currently unavailable

52

Murray 17X160MA

Washer

$4.99

$

In Stock, Qty 20+

0

53

Murray 17X195MA

Washer

$4.99

$

In Stock, Qty 5

0

54

Murray 094618MA

Cap, Hub

$5.99

$

Usually ships in 2-12 days

0

55

Murray 0011X3MA

E-Ring

$5.49

$

In Stock, Qty 20+

0

56

Murray 024373MA

Valve Stem/Cap

$

$

Not available

57

Murray 091079MA

Grip

$3.49

$

Usually ships in 2-12 days

0

58

Murray 165X168

Spring
(Superseded to 165X168MA)

$5.99

$

Usually ships in 2-12 days

0
