425615x99A - Briggs & Stratton 42" Lawn Tractor (2004) (AAFES) Steering Parts Diagram

42" Lawn Tractor

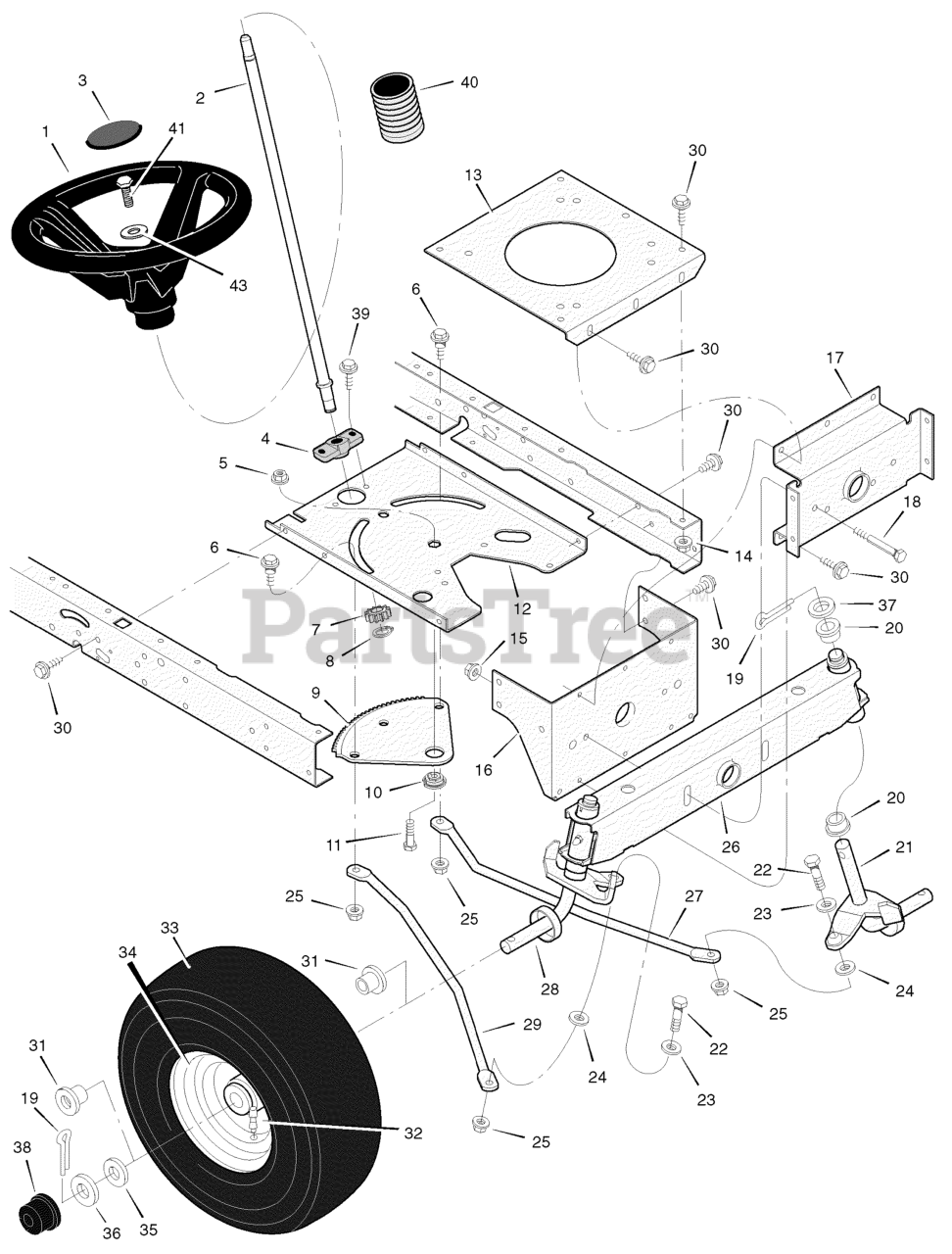

Steering Parts Diagram

  • Title

1

Murray 1001226

Wheel, Steering

$98.99

$

Usually ships in 2-12 days

0

2

Murray 690625

Post, Steering

$49.99

$

In Stock, only 1 left!

0

3

Murray 1001441

Cap, Steering Wheel

$5.99

$

Usually ships in 2-12 days

0

4

Murray 94124

Bearing, Lower

$3.49

$

Usually ships in 2-12 days

0

5

Murray 15X111

Nut, Flange

$4.49

$

Usually ships in 2-12 days

0

6

Murray 009X57

Bolt, Shoulder

$9.99

$

In Stock, Qty 11

0

7

Murray 690183

Gear, Pinion

$

$

Not available

8

Murray 011X25

Ring, Snap
(Superseded to 011X25MA)

$4.49

$

In Stock, Qty 5

0

9

Murray 94121

Gear, Sector
(Superseded to 692523)

$7.49

$

In Stock, only 1 left!

0

10

Murray 94123

Bearing

$

$

Not available

11

Murray 001X84

Bolt

$4.99

$

In Stock, only 3 left!

0

12

Murray 1001121E735

Plate, Steering

$

$

Currently unavailable

13

Murray 094006E735

Plate, Engine

$

$

Currently unavailable

14

Murray 015X88

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

15

Murray 15X118

Nut, Flange
(Superseded to 15X118MA)

$4.49

$

Usually ships in 2-12 days

0

16

Murray 1001270E735

Bracket, Hanger

$

$

Currently unavailable

17

Murray 094007E735

Axle, Hanger

$

$

Currently unavailable

18

Murray 01X146

Bolt
(Superseded to 01X146MA)

$3.99

$

Usually ships in 2-12 days

0

19

Murray 030X49

Pin, Cotter
(Superseded to 030X49MA)

$4.49

$

In Stock, Qty 11

0

20

Murray 690150

Bearing
(Superseded to 690150MA)

$8.99

$

In Stock, only 2 left!

0

21

Murray 094576E735

Spindle Assembly, Left

$

$

Currently unavailable

22

Murray 01X111

Bolt
(Superseded to 01X111MA)

$4.49

$

In Stock, only 1 left!

0

23

Murray 17X104

Washer

$7.49

$

In Stock, only 2 left!

0

24

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

25

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

26

Murray 1001460E735

Axle Assembly

$

$

Currently unavailable

27

Murray 095329E735

Drag Link, Left

$

$

Currently unavailable

28

Murray 094575E735

Spindle Assembly

$

$

Currently unavailable

29

Murray 095328E735

Drag Link, Right

$

$

Currently unavailable

30

Murray 26X249

Screw
(Superseded to 26X249MA)

$

$

Not available

31

Murray 91334

Bearing, Wheel
(Superseded to 91334GS)

$14.99

$

Usually ships in 2-12 days

0

32

Murray 24373

Stem, Valve

$

$

Not available

33

Murray 24380

Tire *
(Superseded to 7072921YP)

$9.49

$

Usually ships in 2-12 days

0

--

Murray 407924

Tube

$

$

Not available

34

Murray 094581601MA

Wheel and Tire Assembly
(Superseded to 094581650MA)

$159.99

$

In Stock, only 1 left!

0

35

Murray 17X195

Washer
(Superseded to 17X195MA)

$4.99

$

In Stock, only 4 left!

0

36

Murray 17X192

Washer
(Superseded to 17X192MA)

$4.99

$

In Stock, Qty 15

0

37

Murray 17X113

Washer

$3.99

$

In Stock, only 2 left!

0

38

Murray 94618

Hub Cap

$5.99

$

In Stock, only 4 left!

0

39

Murray 26X267

Screw
(Superseded to 26X267MA)

$4.99

$

In Stock, Qty 20+

0

40

Murray 92059

Bellows
(Superseded to 92059GS)

$82.99

$

Usually ships in 2-12 days

0

41

Murray 0025X3

Screw, Hex
(Superseded to 0025X3MA)

$4.99

$

Usually ships in 2-12 days

0

43

Murray 17X146

Washer
(Superseded to 17X146MA)

$5.49

$

Usually ships in 2-12 days

0
