42560x92B - Briggs & Stratton 42" Lawn Tractor (1997) Motion Drive Parts Diagram

42" Lawn Tractor

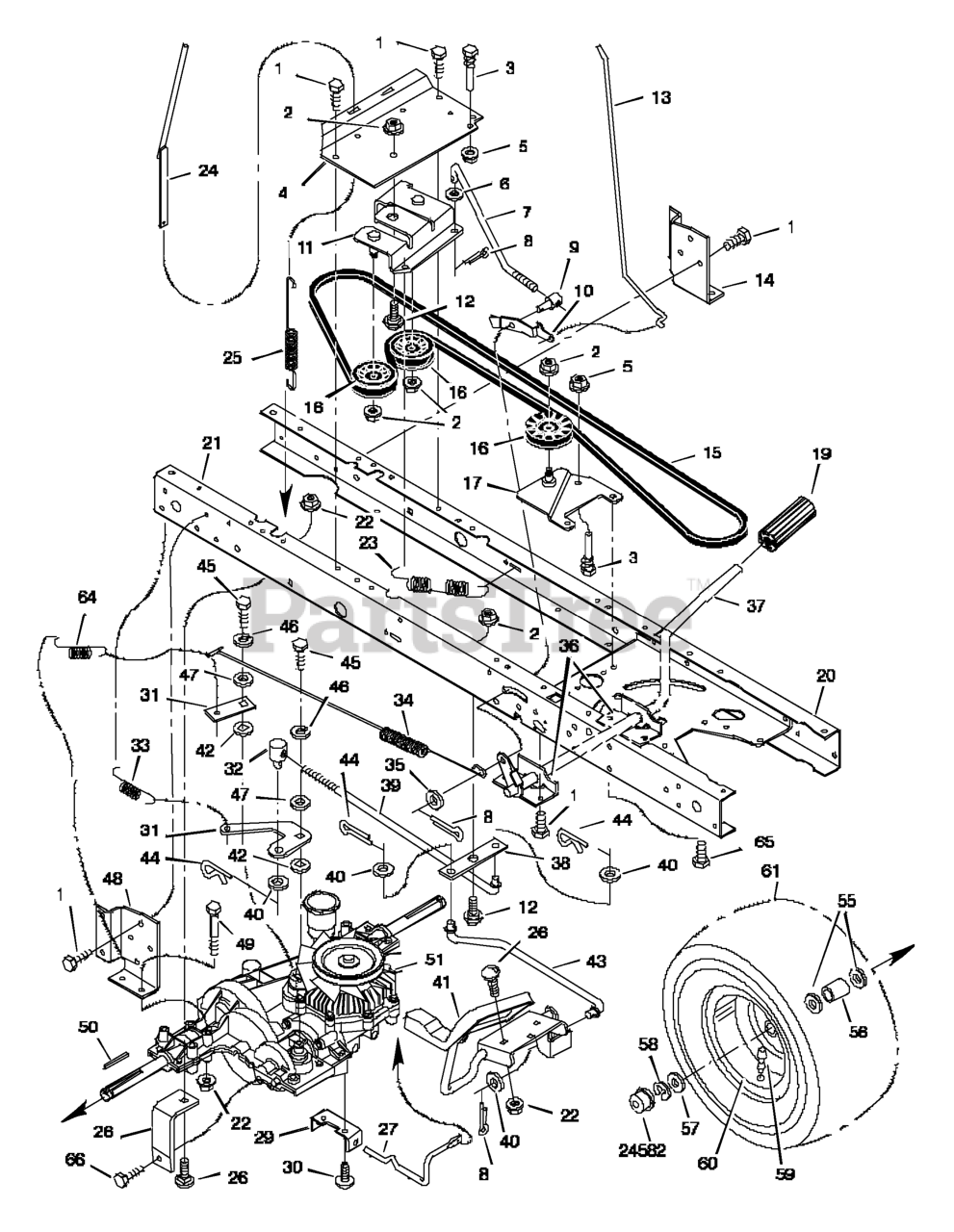

Motion Drive Parts Diagram

  • Title

1

Murray 26X249MA

Screw

$

$

Not available

2

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

3

Murray 093349MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

4

Murray 94431E701

Bracket, Idler

$25.99

$

Usually ships in 2-12 days

0

5

Murray 015X79MA

Locknut
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 094417 Z

Rod, Clutch

$

$

Currently unavailable

8

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Murray 094815ZMA

Adjuster

$21.99

$

Usually ships in 2-12 days

0

10

Murray 094045 Z

Latch, Parking Brake

$

$

Currently unavailable

11

Murray 094411 Z

Bracket Assembly, Idler

$

$

Currently unavailable

12

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 6

0

13

Murray 094152 Z

Rod, Parking Brake

$

$

Currently unavailable

14

Murray 094185E701MA

Bracket, Transaxle

$60.99

$

Usually ships in 2-12 days

0

15

Murray 037X87MA

Belt

$28.99

$

In Stock, Qty 16

0

16

Murray 091179MA

Pulley, Idler

$17.99

$

In Stock, Qty 16

0

17

Murray 94409E701

Bracket Assembly, Idler

$

$

Currently unavailable

18

Murray 091178

Pulley, Idler

$

$

Not available

19

Murray 021544MA

Pedal
(Superseded to 1727261SM)

$9.99

$

In Stock, Qty 5

0

20

Murray 94001 E701

Frame, Left

$

$

Currently unavailable

21

Murray 94000E701

Frame, Right

$

$

Currently unavailable

22

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

23

Murray 165X123

Spring, Extension

$

$

Currently unavailable

24

Murray 095020 Z

Lever Assembly, Tow Valve

$

$

Currently unavailable

25

Murray 165X104MA

Spring, Extension

$9.99

$

Usually ships in 2-12 days

0

26

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

27

Murray 093247

Rod, Dump Valve

$15.99

$

Usually ships in 2-12 days

0

28

Murray 95022E701

Strap, Right Torque

$29.99

$

Usually ships in 2-12 days

0

29

Murray 092603 Z

Bracket, Dump Valve

$

$

Currently unavailable

30

Murray 26X275MA

Screw

$5.49

$

Usually ships in 2-12 days

0

31

Murray 094419ZMA

Arm, Brake

$2.49

$

Usually ships in 2-12 days

0

32

Murray 092132MA

NUT, Adjusting, 1/2-13
(Superseded to 092132ZMA)

$14.99

$

Usually ships in 2-12 days

0

33

Murray 165X127MA

Spring, Extension

$4.49

$

Usually ships in 2-12 days

0

34

Murray 165X122

Spring, Extension

$19.99

$

Usually ships in 2-12 days

0

35

Murray 017X53MA

Washer
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

36

Murray 94035E701

Bracket, Pivot

$24.99

$

Usually ships in 2-12 days

0

37

Murray 94038E701

Lever, Clutch/Brake

$72.99

$

Usually ships in 2-12 days

0

38

Murray 095017 Z

Bellcrank

$

$

Currently unavailable

39

Murray 95018 Z

Rod, Pedal Link - Rear

$

$

Currently unavailable

40

Murray 017X57MA

Washer

$4.49

$

Usually ships in 2-12 days

0

41

Murray 94401E701

Pedal, Speed Control

$

$

Currently unavailable

42

Murray 17X148MA

Washer

$3.99

$

Usually ships in 2-12 days

0

43

Murray 95016 Z

Rod, Pedal Link - Front

$

$

Currently unavailable

44

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

45

Murray 01X145MA

Bolt

$4.49

$

Usually ships in 2-12 days

0

46

Murray 018X32MA

Lockwasher

$3.49

$

Usually ships in 2-12 days

0

47

Murray 17X180MA

Washer

$6.99

$

Usually ships in 2-12 days

0

48

Murray 094184E701MA

Bracket, Right Transaxle

$60.99

$

Usually ships in 2-12 days

0

49

Murray 01X155MA

Bolt
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

50

Murray 021553MA

Key, Square

$4.99

$

In Stock, only 2 left!

0

51

Transaxle **

$

$

Not available

55

Murray 17X160MA

Washer

$4.99

$

In Stock, Qty 20+

0

56

Murray 690553 Z

Spacer

$

$

Currently unavailable

57

Murray 17X195MA

Washer

$4.99

$

In Stock, only 4 left!

0

58

Murray 0011X3MA

E-Ring

$5.49

$

In Stock, Qty 20+

0

59

Murray 024373MA

Valve Stem

$

$

Not available

60

Murray 092290601

Wheel & Tire Assembly

$262.99

$

Usually ships in 2-12 days

0

61

Murray 092374MA

Tire *

$179.99

$

Usually ships in 2-12 days

0

--

Murray 407049MA

Tube

$68.99

$

Usually ships in 2-12 days

0

62

Murray 094618MA

Cap, Hub

Note: (Optional)

$5.99

$

In Stock, only 4 left!

0

63

Murray 094418 Z

Control Arm

$

$

Currently unavailable

64

Murray 165X92MA

Spring, Extension

$5.49

$

In Stock, only 2 left!

0

65

Murray 26X277MA

Screw

$4.99

$

Usually ships in 2-12 days

0

66

Murray 26X216MA

Screw

$6.99

$

In Stock, Qty 5

0

24582

Murray 024582MA

HUB CAP

$7.99

$

Usually ships in 2-12 days

0
