42560x92A - Murray 42" Lawn Tractor (1997) Chassis & Hood Parts Diagram

42" Lawn Tractor

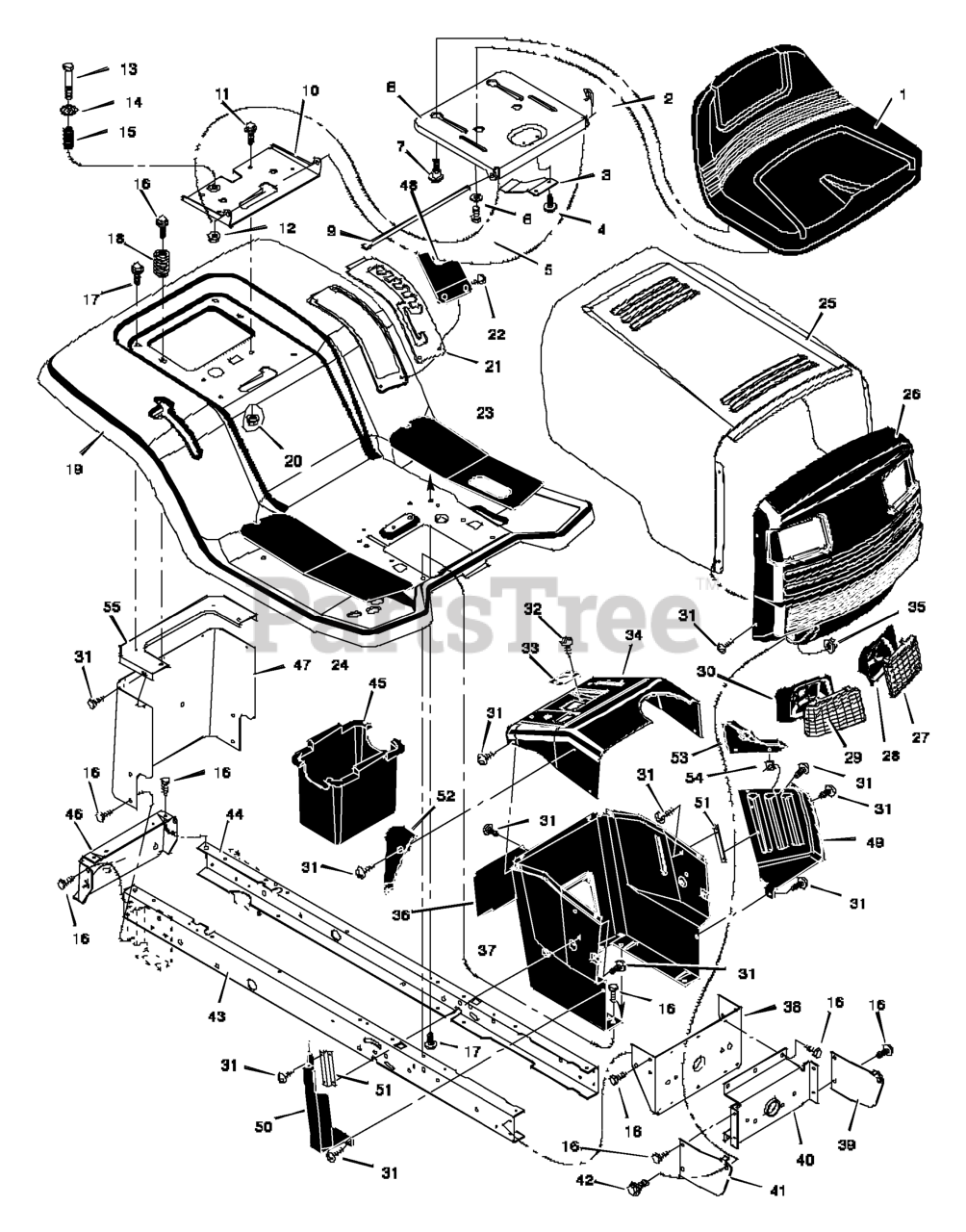

Chassis & Hood Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

3

$5.99

$

Usually ships in 2-12 days

0

4

$4.49

$

In Stock, only 1 left!

0

5

Murray 094160

Bolt, Wing

$

$

Not available

6

Murray 17X472

Washer

$

$

Currently unavailable

7

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

8

Murray 94154E701

Support, Seat

$65.99

$

Usually ships in 2-12 days

0

9

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 94153E701

Bracket, Pivot

$42.99

$

Usually ships in 2-12 days

0

11

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

14

$

$

Currently unavailable

15

Murray 164X31

Spring
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

16

$

$

Not available

17

$4.99

$

In Stock, only 1 left!

0

18

$15.99

$

Usually ships in 2-12 days

0

19

Murray 094150F200

Deck, Seat

$

$

Currently unavailable

20

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

21

Murray 94243E701

Plate, Index

$

$

Currently unavailable

22

$4.49

$

Usually ships in 2-12 days

0

23

Murray 094453

Mat, Left

$

$

Not available

24

Murray 094454

Mat, Right

$

$

Currently unavailable

$

$

Not available

$

$

Not available

27

Murray 094093MA

Lens, Left

$8.49

$

In Stock, only 1 left!

0

28

Murray 094089 Z

Bezel, Left

$

$

Currently unavailable

29

Murray 094092MA

Lens, Right

$8.49

$

In Stock, only 1 left!

0

30

Murray 094088 Z

Bezel, Right

$

$

Currently unavailable

31

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

32

$3.99

$

Usually ships in 2-12 days

0

33

Murray 094075

Bearing, Steering

$

$

Currently unavailable

34

$

$

Currently unavailable

35

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

36

Murray 093007E701MA

Panel, Access

$31.99

$

Usually ships in 2-12 days

0

37

Murray 94078E701

Support, Dash

$

$

Currently unavailable

38

Murray 094013E701MA

Bracket, Rear Hanger
(Superseded to 1001270E701MA)

$165.99

$

Usually ships in 2-12 days

0

39

Murray 94085E701

Support, Left Grille

$

$

Not available

40

Murray 094007E701MA

Axle, Hanger

$32.99

$

Usually ships in 2-12 days

0

41

Murray 94084E701

Support, Right Grille

$

$

Not available

42

Murray 009X51MA

Bolt, Shoulder

$4.99

$

In Stock, only 2 left!

0

43

Murray 94000E701

Frame, Right

$

$

Currently unavailable

44

Murray 94001 E701

Frame, Left

$

$

Currently unavailable

45

Murray 094069

Container, Battery

$45.99

$

In Stock, only 1 left!

0

46

Murray 94002E701

Plate, Hitch

$

$

Currently unavailable

47

Murray 94187E701

Panel, Rear

$

$

Currently unavailable

48

Murray 094610MA

Cover, Level Adjustment

$5.49

$

In Stock, only 1 left!

0

49

Murray 94095

Panel, Left Side
(Superseded to 690708)

$2.99

$

Usually ships in 2-12 days

0

50

Murray 94094

Panel, Right Side
(Superseded to 692200)

$

$

Not available

51

Murray 94098

Bracket, Panel
(Superseded to 691636)

$3.99

$

In Stock, only 2 left!

0

52

Murray 094096

Cap, Panel

$

$

Currently unavailable

53

Murray 094097

Cap, Left Panel

$

$

Currently unavailable

54

Murray 028X73

Retainer

$

$

Currently unavailable

55

Murray 94186E701

Plate, Rear

$

$

Not available

--

Murray 44X6304

Decal, Right Hood

$

$

Currently unavailable

--

Murray 44X6305

Decal, Left Hood

$

$

Currently unavailable

--

Murray 44X4247

Decal, Warning

$1.99

$

Usually ships in 2-12 days

0

--

Murray F-97712

Book, Instruction

$

$

Currently unavailable

--

Murray F-97713

Parts List

$

$

Currently unavailable
