425608x58A - Murray 42" Lawn Tractor (2001) Motion Drive Parts Diagram

42" Lawn Tractor

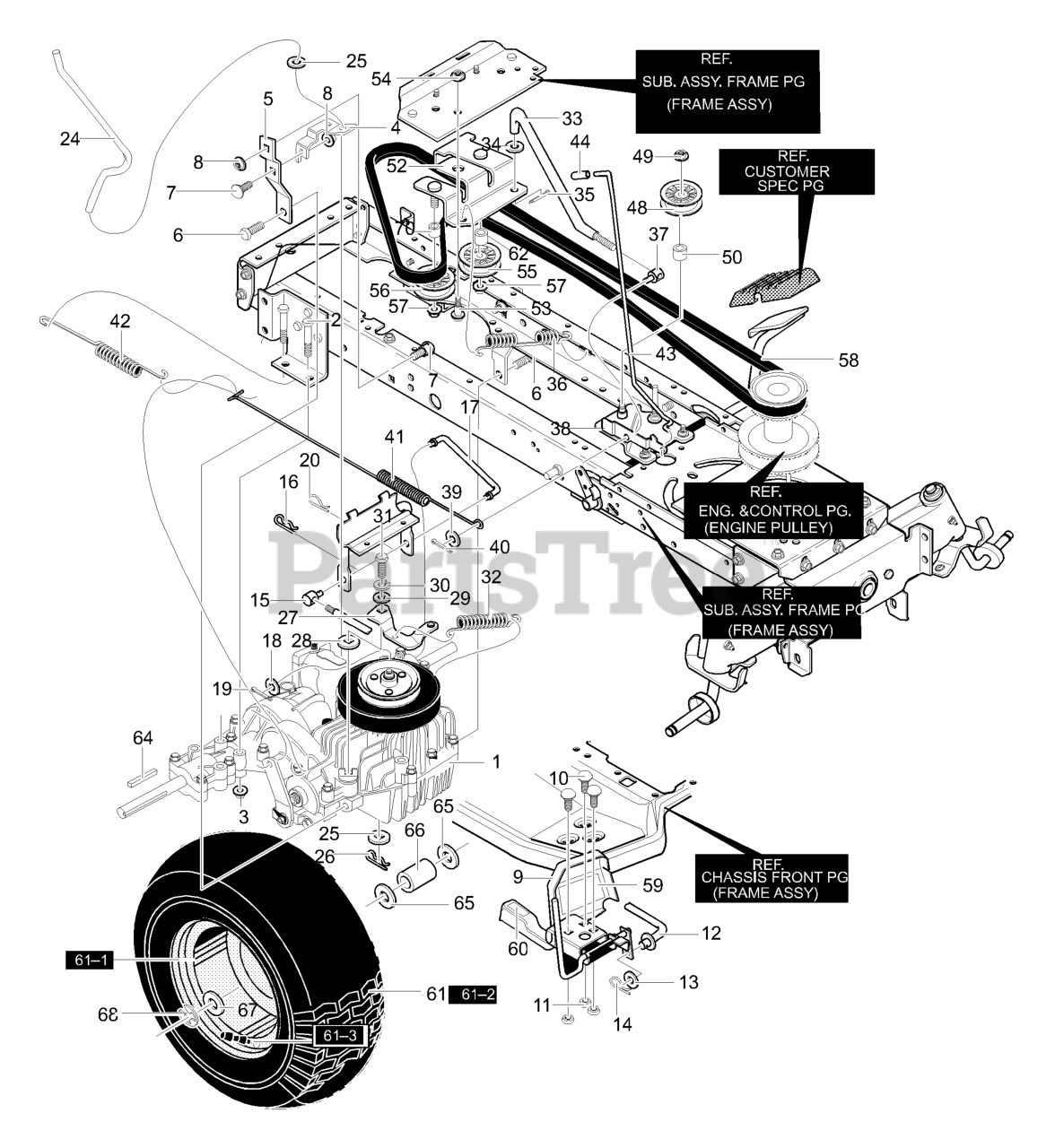

Motion Drive Parts Diagram

  • Title
1

Transaxle, VST205 **

$

$

Not available

2

Murray 711669

Screw, 5/16-18 x 2.50

$1.99

$

Usually ships in 2-12 days

0

3

Murray 711634MA

Nut, 5/16-18 Wdfllk

$3.99

$

Usually ships in 2-12 days

0

4

Murray 94429-821

Bracket, Disconnect

$

$

Currently unavailable

5

Murray 94432-821

Torque Strap

$

$

Currently unavailable

6

Murray 710268

Screw, 5/16-18 x 0.75

$12.99

$

In Stock, only 2 left!

0

7

Murray 711661

Bolt, 5/16-18x.63

$

$

Not available

8

Murray 710026

Nut, 5/16-18 Hexwdfllk Wh

$

$

Not available

9

Murray 690013-821

Pedal Assy., Hydro

$

$

Currently unavailable

10

Murray 711688MA

Bolt, 5/16-18x.75

$3.49

$

Usually ships in 2-12 days

0

11

Murray 710026

Nut, 5/16-18

$

$

Not available

12

Murray 95278

Rod, Pedal Link

$11.99

$

Usually ships in 2-12 days

0

13

Murray 711761

Washer

$116.99

$

Usually ships in 2-12 days

0

14

Murray 711676

Hair Pin

$

$

Currently unavailable

15

Murray 711594

Adjust Nut 1/2-13

$2.99

$

Usually ships in 2-12 days

0

16

Murray 711682MA

Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

17

Murray 95279

Rod Hydro Link

$10.99

$

Usually ships in 2-12 days

0

18

Murray 711617

Flat washer

$5.49

$

In Stock, Qty 11

0

19

Murray 071081

Cotter Pin

$3.49

$

Usually ships in 2-12 days

0

20

Murray 711676

Hair Pin

$

$

Currently unavailable

24

Murray 094428 Z

Rod, Disconnect

$

$

Currently unavailable

25

Murray 711644MA

Washer, Flat

$3.49

$

Usually ships in 2-12 days

0

26

Murray 071081

Pin, Cotter

$3.49

$

Usually ships in 2-12 days

0

27

Murray 95299

Arm Disconnect

$

$

Not available

28

$3.99

$

Usually ships in 2-12 days

0

29

Murray 710657

Flat washer

$65.99

$

Usually ships in 2-12 days

0

30

Murray 710249

Washer

$

$

Currently unavailable

31

Murray 01X145MA

Screw, 1/4-28x.75

$4.49

$

Usually ships in 2-12 days

0

32

Murray 710330

Spring, Extension
(Superseded to 710329)

$11.99

$

In Stock, only 1 left!

0

33

Murray 95297

Rod, Clutch

$8.99

$

Usually ships in 2-12 days

0

34

Murray 711644MA

Flat washer

$3.49

$

Usually ships in 2-12 days

0

35

Murray 071081

Cotter Pin

$3.49

$

Usually ships in 2-12 days

0

36

Murray 710707

Spring, Clutch

$

$

Currently unavailable

37

Murray 711596

Nut, Adjusting

$

$

Currently unavailable

38

Murray 95290

Latch, Park Brake

$3.99

$

Usually ships in 2-12 days

0

39

Murray 711623

Flat washer

$1.99

$

Usually ships in 2-12 days

0

40

Murray 071081

Cotter Pin

$3.49

$

Usually ships in 2-12 days

0

41

Murray 710333

Spring, Extension

$67.99

$

Usually ships in 2-12 days

0

42

Murray 710353

Spring, Tension

$8.99

$

Usually ships in 2-12 days

0

43

Murray 690046MA

Park Brake Rod

$8.99

$

Usually ships in 2-12 days

0

44

$3.49

$

Usually ships in 2-12 days

0

48

Murray 690409MA

Pulley, Idler

$19.99

$

In Stock, Qty 13

0

49

Murray 711920MA

Nut, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

50

Murray 690369MA

Spacer, 1/2 to 17MM

$

$

Not available

52

Murray 95305

Asm., Bracket Idler

$

$

Not available

53

Murray 711613MA

Bolt, 3/8-16

$1.99

$

Usually ships in 2-12 days

0

54

Murray 711622

Nut, 3/8-16

$

$

Currently unavailable

55

Murray 690409MA

Pulley, Idler

$19.99

$

In Stock, Qty 13

0

56

Murray 690410MA

Pulley, Idler

$19.99

$

In Stock, only 1 left!

0

57

Murray 711920MA

Nut, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

58

Murray 710531

Belt, Motion Drive

$

$

Not available

59

UNKNOWN

$

$

Not available

60

Murray 093249

Pad, Toe Sandpaper

$3.49

$

Usually ships in 2-12 days

0

61

Murray 692511

Tire & Rim

$3.99

$

Usually ships in 2-12 days

0

61-1

Murray 338512

Valve Stem

$

$

Not available

61-2

$

$

Currently unavailable

61-3

$

$

Currently unavailable

62

Murray 690369MA

Spacer 1/2 to 17MM

$

$

Not available

64

Murray 52928MA

Key, Square

$1.99

$

Usually ships in 2-12 days

0

65

Murray 711648MA

Flat washer

$1.99

$

Usually ships in 2-12 days

0

66

Murray 95274MA

Spacer .87x1.78

$46.99

$

Usually ships in 2-12 days

0

67

Murray 711758

Flat washer

$26.99

$

In Stock, only 1 left!

0

68

Murray 0011X3MA

Ring, E

$5.49

$

In Stock, Qty 17

0

70

Murray 690369MA

Spacer 1/2 to 17MM

$

$

Not available
