425608x58A - Murray 42" Lawn Tractor (2001) Frame Assembly (part 1) Parts Diagram

42" Lawn Tractor

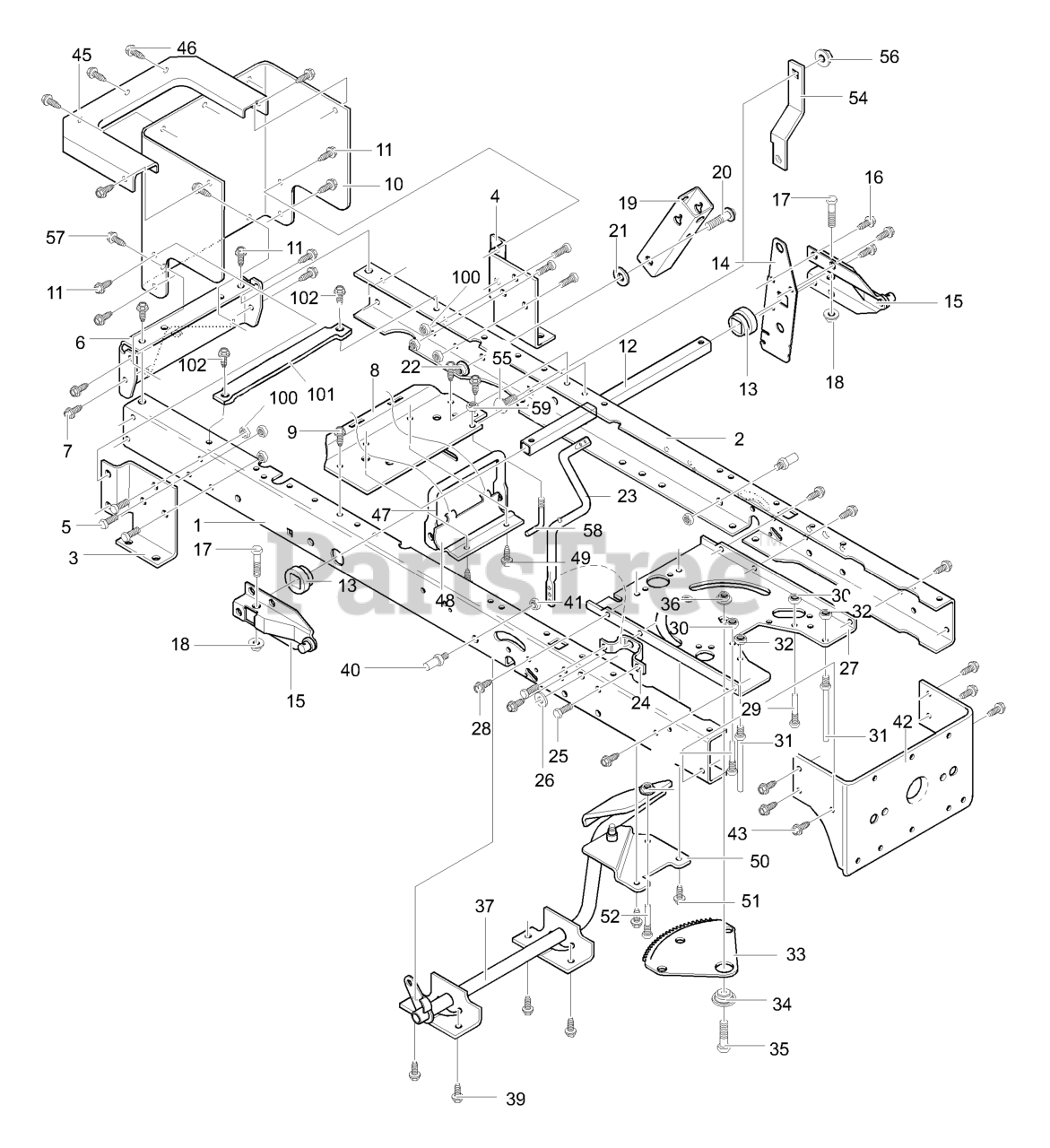

Frame Assembly (part 1) Parts Diagram

  • Title
1

Murray 95110

Frame, Rail RH

$

$

Currently unavailable

2

Murray 95111

Frame, Rail LH

$

$

Currently unavailable

3

Murray 94184

Bracket, Transaxle RH

$

$

Currently unavailable

4

Murray 94185

Bracket, Transaxle LH

$

$

Currently unavailable

5

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

6

$

$

Currently unavailable

7

Murray 26X249MA

Screw , .312-18x.75

$

$

Not available

8

Murray 94431

Bracket, Idler/Trunnion

$

$

Currently unavailable

9

Murray 26X249MA

Screw , .312-18x.75

$

$

Not available

10

Murray 690218

Plate, Rear
(Superseded to 799072)

$142.99

$

Usually ships in 2-12 days

0

11

Murray 26X249MA

Screw , .312-18x.75

$

$

Not available

12

Murray 94063

Lifter Tube
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

13

Murray 094065MA

Bushing, Lift Arm

$4.49

$

Usually ships in 2-12 days

0

14

Murray 94030

Plate, Lift Arm

$

$

Currently unavailable

15

Murray 94180

Lever, Lift Arm

$

$

Currently unavailable

16

Murray 026X49MA

Screw .31x.50

$4.49

$

In Stock, only 2 left!

0

17

Murray 001X74MA

Screw, .5/16-21x1.25

$3.49

$

Usually ships in 2-12 days

0

18

Murray 15X118MA

Nut, .32-24 Flangelock

$4.49

$

Usually ships in 2-12 days

0

19

Murray 094015

Pivot Bracket

$

$

Currently unavailable

20

Murray 009X53MA

Bolt, 3/8 HHSH

$6.99

$

Usually ships in 2-12 days

0

21

Murray 17X191MA

Flat washer

$3.99

$

Usually ships in 2-12 days

0

22

Murray 015X84MA

Nut, .38-16 Flange Ctrlk
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

23

Murray 690394

PTO Crank

$4.99

$

Usually ships in 2-12 days

0

24

Murray 94005

Bracket, Bell Crank

$16.99

$

Usually ships in 2-12 days

0

25

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

26

Murray 120395

Flat washer

$

$

Not available

27

Murray 1001021

Steering Plate

$

$

Currently unavailable

28

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

29

Murray 093349MA

Screw Guide 5/16-18

$4.49

$

Usually ships in 2-12 days

0

30

Murray 015X79MA

Nut, .32-18 Flangelock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

31

Murray 094066MA

Screw Guide

$14.99

$

In Stock, only 2 left!

0

32

Murray 015X79MA

Nut, .32-18 Flangelock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

33

Murray 094121MA

Gear Sector

$

$

Not available

34

Murray 094123MA

Bearing, Sector Gear

$12.99

$

In Stock, only 1 left!

0

35

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

36

Murray 15X113MA

Nut, 5/16 Hkeps

$4.49

$

Usually ships in 2-12 days

0

37

Murray 94632

Cl/Br Pedal Dlx

$

$

Currently unavailable

39

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

40

Murray 094067MA

Pin, Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

41

Murray 45171MA

Nut, 3/8-16 Hwdfl Whiz

$3.49

$

Usually ships in 2-12 days

0

42

Murray 94013

Bracket, Hanger Rear

$0.99

$

Usually ships in 2-12 days

0

43

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

45

Murray 94186

Top, Rear Plate
(Superseded to 690367)

$3.99

$

Usually ships in 2-12 days

0

46

Murray 26X270

Screw, Thread Form
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

47

UNKNOWN

$

$

Not available

48

Murray 94434

Clamp, Trunnion

$7.99

$

Usually ships in 2-12 days

0

49

Murray 26X249MA

Screw, 5/16-18 x 0.75

$

$

Not available

50

Murray 94409

Idler, Intermediate
(Superseded to 691685)

$3.99

$

In Stock, Qty 6

0

51

Murray 26X277MA

Screw, 5/16-18 x 0.50

$4.99

$

Usually ships in 2-12 days

0

52

Murray 093349MA

Screw Guide 5/16-18

$4.49

$

Usually ships in 2-12 days

0

53

Murray 015X79MA

Nut, .32-18 Flangelock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

54

Murray 094433E701MA

BRACKET, Torque Strap, LH
(Superseded to 7300845BMYP)

$13.99

$

Usually ships in 2-12 days

0

55

Murray 002X53MA

Bolt, CRG .31-18x0.62
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

56

Murray 015X88MA

Nut, .32-18 Flng Ctrlk
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

57

Murray 0025X7MA

Engine Bolt, 3/8x1.25
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

58

Murray 094781MA

Screw Guide

$60.99

$

Usually ships in 2-12 days

0

59

Murray 015X79MA

Nut, .32-18 Flangelock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

100

Murray 015X88MA

Nut, .32-18 Flang Centerlock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

101

Murray 690482

Brkt, Battery Support

$10.99

$

Usually ships in 2-12 days

0

102

Murray 26X249MA

Screw, 5/16-18 x 0.75

$

$

Not available
