425605x692B - Stanley 42" Lawn Tractor (2002) Hood & Grill Parts Diagram

42" Lawn Tractor

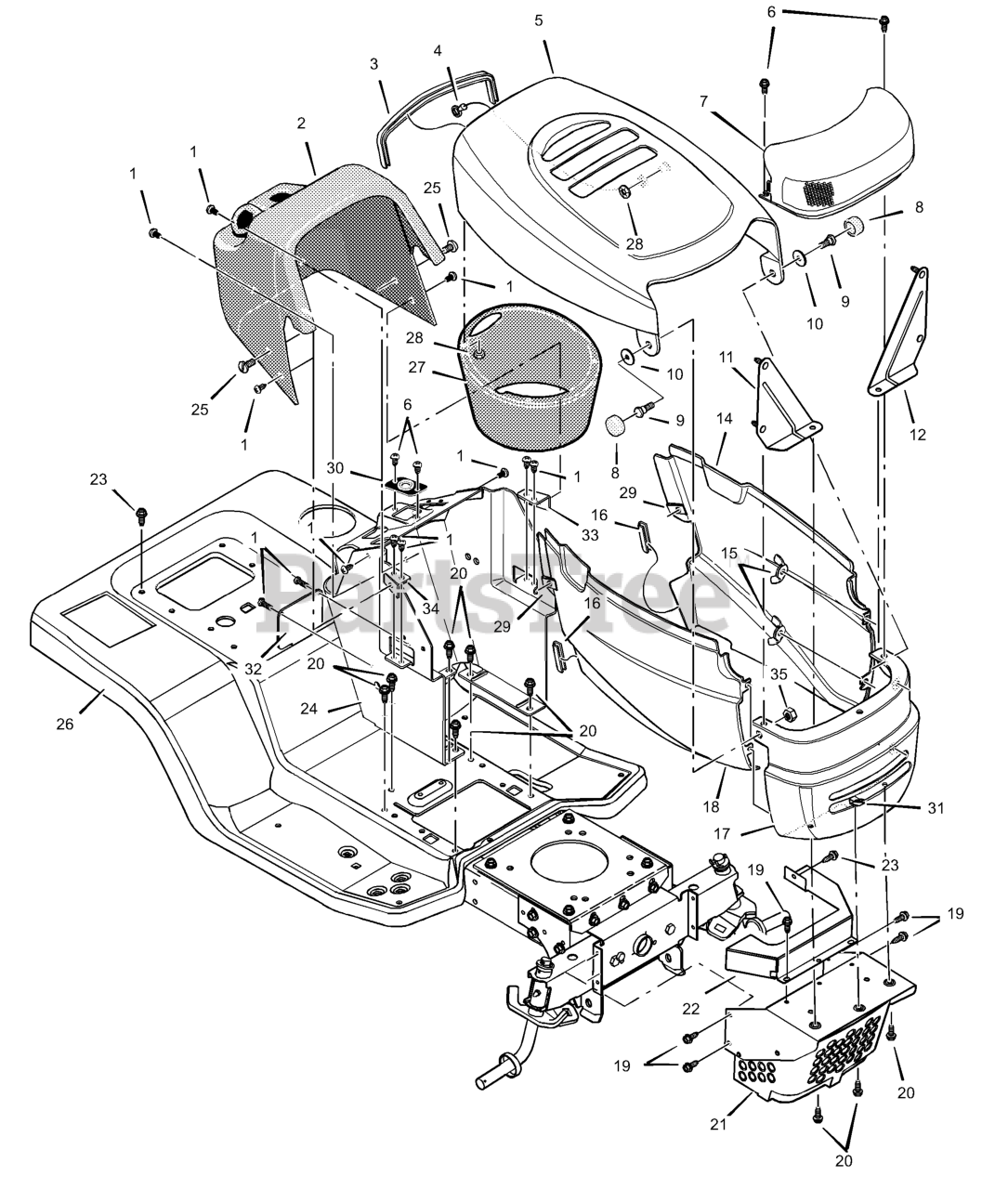

Hood & Grill Parts Diagram

  • Title
1

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

$

$

Currently unavailable

3

Murray 7601029

Trim 2.23"

$5.99

$

Usually ships in 2-12 days

0

4

$

$

Not available

5

Murray 1001186E010

Hood Assembly

$163.99

$

Usually ships in 2-12 days

0

6

$3.99

$

Usually ships in 2-12 days

0

7

Murray 95234

Lens & Reflector Assembly
(Superseded to 95234GS)

$45.99

$

In Stock, only 1 left!

0

8

Murray 690113MA

Cap, Pivot

$4.99

$

Usually ships in 2-12 days

0

9

Murray 009X49MA

Bolt, Shoulder

$5.49

$

In Stock, only 1 left!

0

10

Murray 690114

Base, Pivot

$5.49

$

Usually ships in 2-12 days

0

11

Murray 1001169E701

Brace, Right Grille Assembly

$

$

Currently unavailable

12

Murray 1001171E701

Brace, Left Grille Assembly

$23.99

$

Usually ships in 2-12 days

0

14

Murray 094457E700

Panel, Left Side

$

$

Currently unavailable

15

Murray 014X79MA

Wingnut

$4.99

$

Usually ships in 2-12 days

0

16

Murray 7601029

Trim 0.39"

$5.99

$

Usually ships in 2-12 days

0

17

$

$

Currently unavailable

18

Murray 094458E700

Panel, Right Side

$

$

Currently unavailable

19

$4.99

$

Usually ships in 2-12 days

0

20

$

$

Not available

21

Murray 1001191

Guard Assembly, Muffler

$

$

Not available

22

Murray 1001155

Shield, Upper Heat

$91.99

$

Usually ships in 2-12 days

0

23

$4.99

$

In Stock, only 1 left!

0

24

$

$

Currently unavailable

25

$4.49

$

Usually ships in 2-12 days

0

26

Murray 1001099E700

Deck Seat

$

$

Currently unavailable

27

$

$

Not available

28

Murray 028X49MA

Retainer, Push

$3.99

$

In Stock, Qty 13

0

29

Murray 028X23MA

Cap, Push
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

30

Murray 094075

Bearing, Steering

$

$

Currently unavailable

31

$4.99

$

Usually ships in 2-12 days

0

32

Murray 093007E700

Panel, Access

$

$

Currently unavailable

33

Murray 094464

Bracket, Right Console

$4.49

$

Usually ships in 2-12 days

0

34

Murray 094465

Bracket, Left Console

$4.49

$

Usually ships in 2-12 days

0

35

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

--

Murray F-020714L

Book, Instruction

$

$

Currently unavailable
