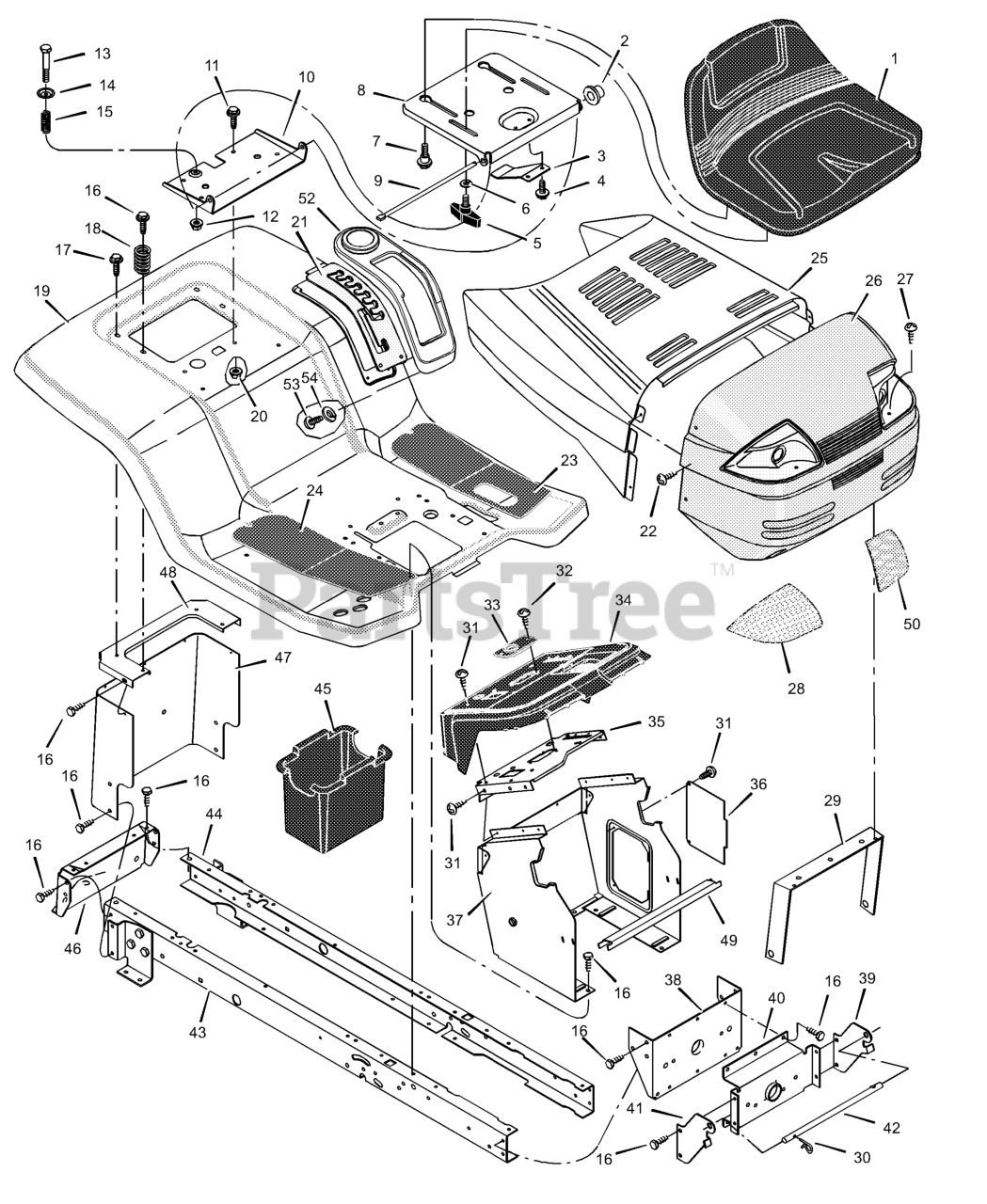

425602x50A - Murray 42" Lawn Tractor (2002) Chassis And Hood Parts Diagram

42" Lawn Tractor

Chassis And Hood Parts Diagram

  • Title

1

Murray 95236

Seat

$290.99

$

Usually ships in 2-12 days

0

2

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

3

Murray 094057MA

Spring

$5.99

$

Usually ships in 2-12 days

0

4

Murray 26X229MA

Screw

$4.49

$

In Stock, only 1 left!

0

5

Murray 1001054MA

Bolt, Wing

$6.99

$

Usually ships in 2-12 days

0

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

8

Murray 094154E700

Support, Seat

$

$

Currently unavailable

9

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 094153E700MA

Bracket, Pivot
(Superseded to 1001648E701MA)

$42.99

$

Usually ships in 2-12 days

0

11

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

12

Murray 015X89MA

Nut

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

14

Murray 094155 Z

Washer

$

$

Currently unavailable

15

Murray 164X31

Spring
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

16

Murray 26X249MA

Screw

$

$

Not available

17

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

18

Murray 164X30MA

Spring

$15.99

$

Usually ships in 2-12 days

0

19

Murray 094629E245

Deck, Seat

$

$

Currently unavailable

20

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

21

Murray 094886E700

Plate, Index

$53.99

$

Usually ships in 2-12 days

0

22

Murray 009X47MA

Screw

$4.49

$

Usually ships in 2-12 days

0

23

Murray 095437

Mat, Left

$25.99

$

Usually ships in 2-12 days

0

24

Murray 095438

Mat, Right

$25.99

$

Usually ships in 2-12 days

0

25

Murray 093215E245MA

Hood
(Superseded to 093215E701MA)

$387.99

$

Usually ships in 2-12 days

0

26

Murray 094869

Grille Assembly

Note: (Includes Lens)

$

$

Currently unavailable

27

Murray 26X239MA

Screw

Note: (Included with Ref. No. 26)

$4.49

$

Usually ships in 2-12 days

0

28

Murray 092539MA

Lens, Right

Note: (Included with Ref. No. 26)

$71.99

$

Usually ships in 2-12 days

0

29

Murray 092541MA

Brace, Grille

Note: (Included with Ref. No. 26)

$18.99

$

Usually ships in 2-12 days

0

30

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

31

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

32

Murray 26X238MA

Screw

$3.99

$

Usually ships in 2-12 days

0

33

Murray 094219MA

Bearing, Steering

$

$

Not available

34

Murray 095034

Dash (Grey)

$

$

Currently unavailable

35

Murray 094221E701MA

Plate, Dash

$39.99

$

Usually ships in 2-12 days

0

36

Murray 093007E700

Panel, Access

$

$

Currently unavailable

37

Murray 095082E700

Support, Dash

$

$

Currently unavailable

38

Murray 1001270E700MA

Bracket, Rear Hanger
(Superseded to 1001270E701MA)

$165.99

$

Usually ships in 2-12 days

0

39

Murray 1001498E700

Support, Left Grille

$

$

Currently unavailable

40

Murray 094007E700

Axle, Hanger

$

$

Currently unavailable

41

Murray 1001497E700

Support, Right Grille

$

$

Currently unavailable

42

Murray 093137 Z

Rod, Pivot

$

$

Currently unavailable

43

Murray 1001268E701

Frame, Right

$

$

Not available

44

Murray 1001269E701MA

Frame, Left

$103.99

$

Usually ships in 2-12 days

0

45

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

46

Murray 1001002E700

Plate, Hitch

$

$

Currently unavailable

47

Murray 690218E700

Plate, Rear

$

$

Not available

48

Murray 094186E700

Top, Rear Plate

$

$

Currently unavailable

49

Murray 095081E700

Channel

$

$

Currently unavailable

50

Murray 092540MA

Lens, Left

Note: (Included with Ref. No. 26)

$71.99

$

Usually ships in 2-12 days

0

52

Murray 094491

Cover, Detent (with cup holder)

$

$

Currently unavailable

53

Murray 26X284MA

Screw

$3.99

$

Usually ships in 2-12 days

0

54

Murray 17X204

Washer

$

$

Currently unavailable

--

Murray F-020751L

Instruction Book & Parts List

$

$
