425601x53A - Murray 42" Lawn Tractor (2000) Frame Assembly (part 1) Parts Diagram

42" Lawn Tractor

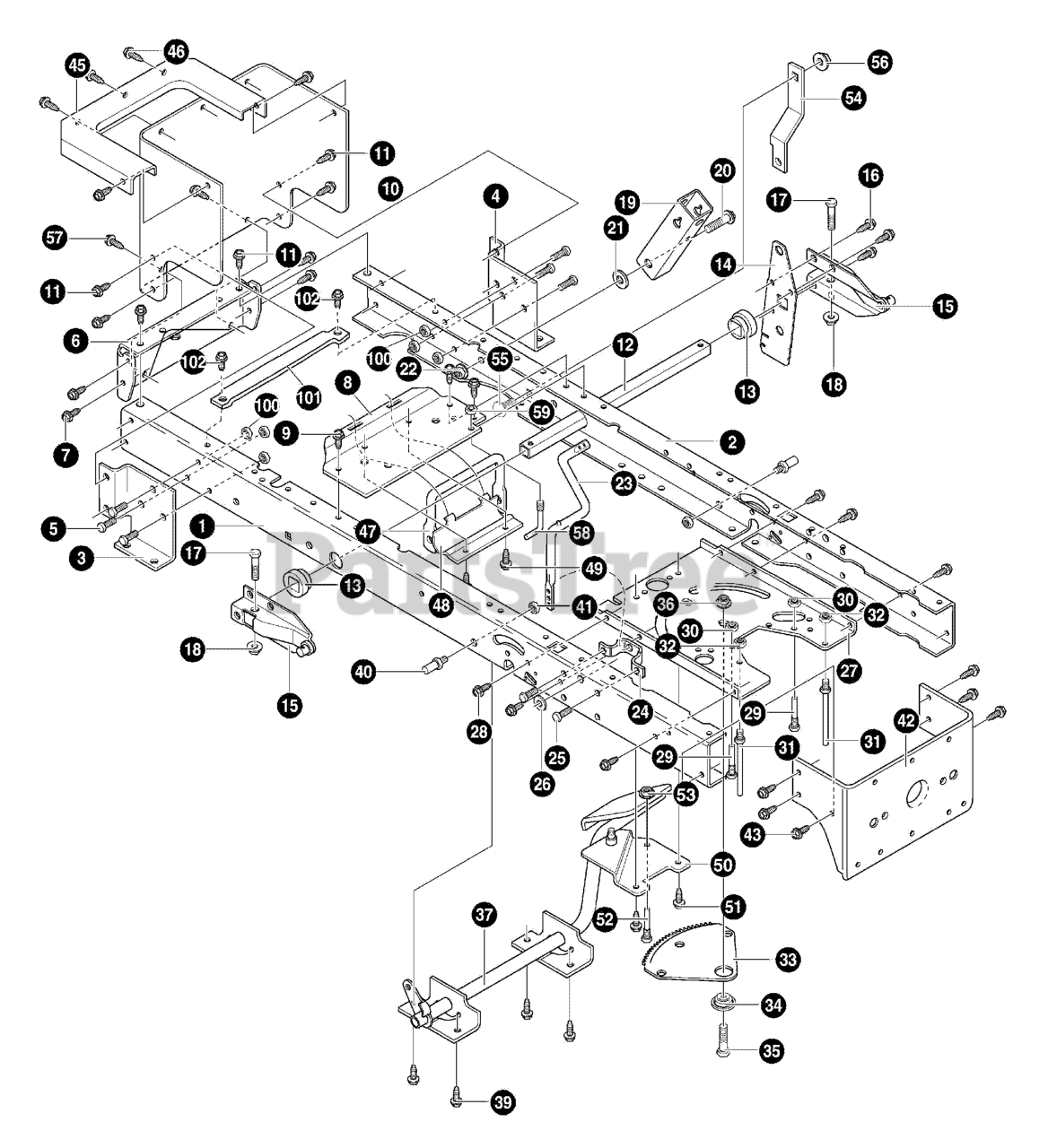

Frame Assembly (part 1) Parts Diagram

  • Title

1

Murray 95110

RAIL-FRAME RH SHORT

$

$

Currently unavailable

2

Murray 95111

RAIL-FRAME LH SHORT

$

$

Currently unavailable

3

Murray 94184

BRACKET, RIGHT TRANSAXLE

$

$

Currently unavailable

4

Murray 94185

BRCKET, LEFT TRANSAXLE

$

$

Currently unavailable

5

Murray 26X249MA

SCREW

$

$

Not available

6

Murray 1001002

PLATE

$

$

Currently unavailable

7

Murray 26X249MA

SCREW

$

$

Not available

8

Murray 94431

BRACKET, IDLE

$

$

Currently unavailable

9

Murray 26X249MA

SCREW

$

$

Not available

10

Murray 690218

PLATE, REAR
(Superseded to 799072)

$142.99

$

Usually ships in 2-12 days

0

11

Murray 26X249MA

SCREW

$

$

Not available

12

Murray 94063

TUBE, LIFTER
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

13

Murray 094065MA

BUSHING, LIFT TUBE

$4.49

$

Usually ships in 2-12 days

0

14

Murray 94030

PLATE, LIFT ARM

$

$

Currently unavailable

15

Murray 94180

LEVER, LIFT ARM

$

$

Currently unavailable

16

Murray 026X49MA

SCREW

$4.49

$

In Stock, only 2 left!

0

17

Murray 001X74MA

SCREW

$3.49

$

Usually ships in 2-12 days

0

18

Murray 15X118MA

LOCKNUT, FLANGE

$4.49

$

Usually ships in 2-12 days

0

19

Murray 094015

BRACKET, PIVOT

$

$

Currently unavailable

20

Murray 009X53MA

BOLT

$6.99

$

Usually ships in 2-12 days

0

21

Murray 17X191MA

WASHER

$3.99

$

Usually ships in 2-12 days

0

22

Murray 015X84MA

NUT
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

23

Murray 690394

CRANK, PTO

$4.99

$

Usually ships in 2-12 days

0

24

Murray 94005

BRACKET, BELL CRANK

$16.99

$

Usually ships in 2-12 days

0

25

Murray 26X249MA

SCREW

$

$

Not available

26

Murray 120395

WASHER, FLAT

$

$

Not available

27

Murray 1001024

PLATE, STEERING

$

$

Currently unavailable

28

Murray 26X249MA

SCREW

$

$

Not available

29

Murray 093349MA

SCREW, GUIDE

$4.49

$

Usually ships in 2-12 days

0

30

Murray 015X79MA

NUT
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

31

Murray 094066MA

SCREW, GUIDE

$14.99

$

In Stock, only 2 left!

0

32

Murray 015X79MA

NUT
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

33

Murray 094121MA

GEAR, SECTOR

$

$

Not available

34

Murray 094123MA

BEARING, SECTOR GEAR

$12.99

$

In Stock, only 1 left!

0

35

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

36

Murray 15X113MA

NUT, HKEPS

$4.49

$

Usually ships in 2-12 days

0

37

Murray 94632

PEDAL

$

$

Currently unavailable

39

Murray 26X249MA

SCREW

$

$

Not available

40

Murray 094067MA

PIN, THREADED SHOULDER
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

41

Murray 45171MA

NUT, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

42

Murray 94013

BRACKET, REAR HANGER

$0.99

$

Usually ships in 2-12 days

0

43

Murray 26X249MA

SCREW

$

$

Not available

45

Murray 94186

PLATE, REAR SEAT
(Superseded to 690367)

$3.99

$

Usually ships in 2-12 days

0

46

Murray 26X270

SCREW
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

47

Murray 94425

ROD, TRUNNION YOKE
(Superseded to 690339)

$4.99

$

Usually ships in 2-12 days

0

48

Murray 94434

CLAMP, TRUNNION

$7.99

$

Usually ships in 2-12 days

0

49

Murray 26X249MA

SCREW

$

$

Not available

50

Murray 94409

IDLER, INTERMEDIATE
(Superseded to 691685)

$3.99

$

In Stock, Qty 5

0

51

Murray 26X277MA

SCREW

$4.99

$

Usually ships in 2-12 days

0

52

Murray 093349MA

SCREW, GUIDE

$4.49

$

Usually ships in 2-12 days

0

53

Murray 015X79MA

NUT
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

54

Murray 094433E701MA

BRACKET, Torque Strap, LH
(Superseded to 7300845BMYP)

$13.99

$

Usually ships in 2-12 days

0

55

Murray 002X53MA

BOLT
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

56

Murray 015X88MA

NUT
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

57

Murray 0025X7MA

BOLT
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

58

Murray 094781MA

SCREW, GUIDE

$60.99

$

Usually ships in 2-12 days

0

59

Murray 015X79MA

NUT
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

100

Murray 015X88MA

NUT
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

101

Murray 690482

BATTERY, SUPPORT

$10.99

$

Usually ships in 2-12 days

0

102

Murray 26X249MA

SCREW

$

$

Not available
