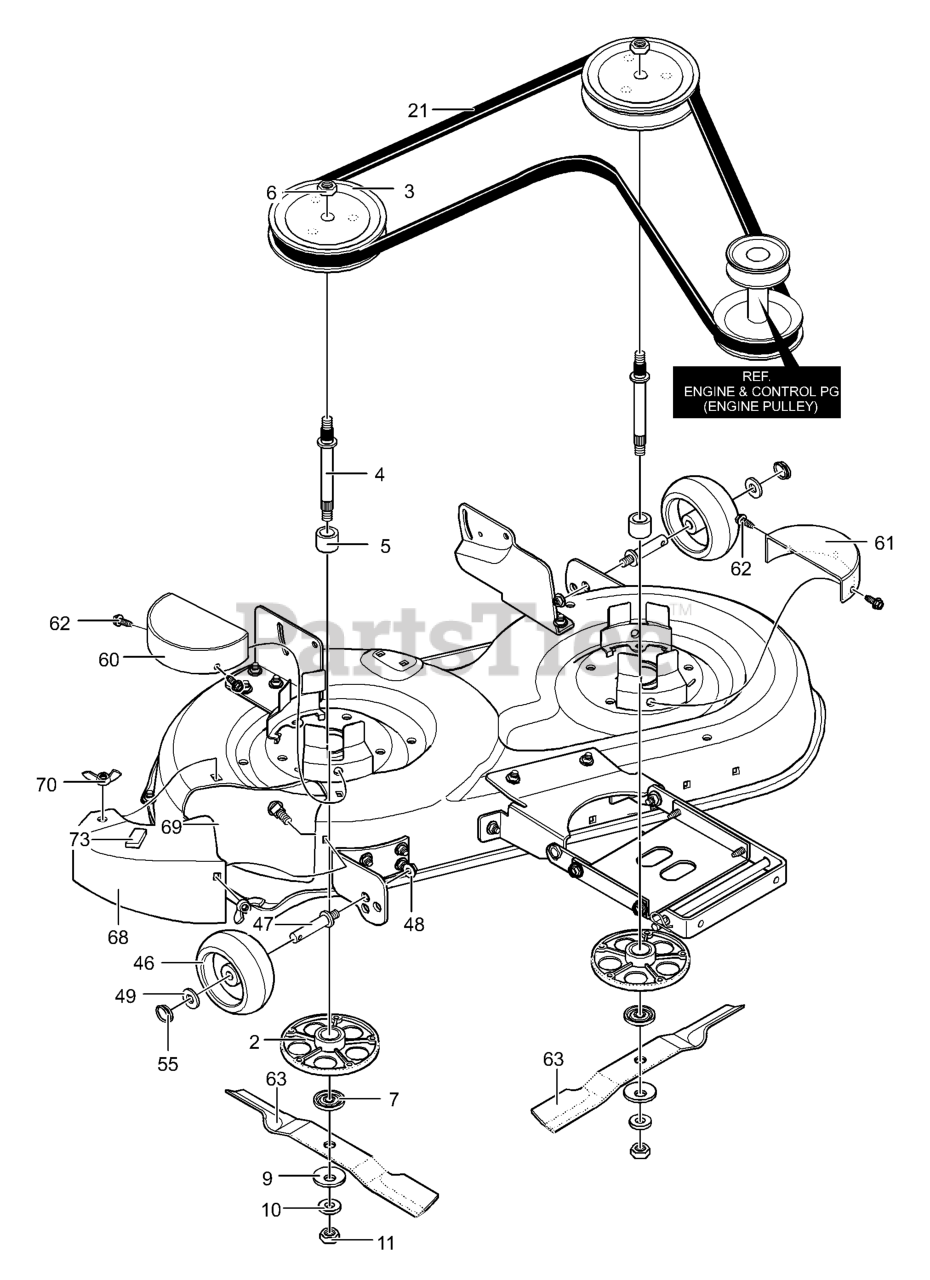

425601x53A - Murray 42" Lawn Tractor (2000) Deck Assembly (part 2) Parts Diagram

42" Lawn Tractor

Deck Assembly (part 2) Parts Diagram

  • Title

2

Murray 092574

HOUSING, JACKSHAFT

$

$

Currently unavailable

3

Murray 95308MA

PULLEY

$67.99

$

Usually ships in 2-12 days

0

4

Murray 094129

JACKSHAFT

$21.99

$

In Stock, Qty 11

0

5

Murray 094130MA

SPACER

$5.99

$

In Stock, Qty 12

0

6

Murray 711626

NUT, 9/16-18

$

$

Currently unavailable

7

Murray 092466MA

ADAPTER, BLADE

$9.99

$

In Stock, only 1 left!

0

9

Murray 17X166MA

WASHER

$13.99

$

In Stock, Qty 18

0

10

Murray 17X165MA

WASHER

$16.99

$

In Stock, only 4 left!

0

11

Murray 15X100MA

NUT

$3.99

$

In Stock, Qty 10

0

21

Murray 710213

BELT

$

$

Currently unavailable

46

Murray 092683MA

WHEEL, GAUGE

$15.99

$

In Stock, only 3 left!

0

47

Murray 711746

BOLT

$7.99

$

Usually ships in 2-12 days

0

48

Murray 711622

NUT,3/8-16

$

$

Currently unavailable

49

Murray 711615MA

WASHER

$1.99

$

Usually ships in 2-12 days

0

55

Murray 711764MA

PIN, CIRCLE
(Superseded to 031X11MA)

$4.49

$

In Stock, only 2 left!

0

60

Murray 94669E701MA

GUARD, Belt R.H.

$42.99

$

Usually ships in 2-12 days

0

61

Murray 094668E701MA

GUARD, Pulley L.H.

$34.99

$

Usually ships in 2-12 days

0

62

Murray 711642MA

SCREW
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

63

Murray 95100

BLADE

$

$

Currently unavailable

68

Murray 95080-853

COVER, DISCHARGE

$

$

Currently unavailable

69

Murray 340720MA

BOLT
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

70

Murray 711604

NUT, WING

$3.49

$

In Stock, only 3 left!

0

73

Murray 318197

PAD, ADHESIVE

$1.99

$

Usually ships in 2-12 days

0
