425601x53A - Murray 42" Lawn Tractor (1999) Rear Chassis Assembly Parts Diagram

42" Lawn Tractor

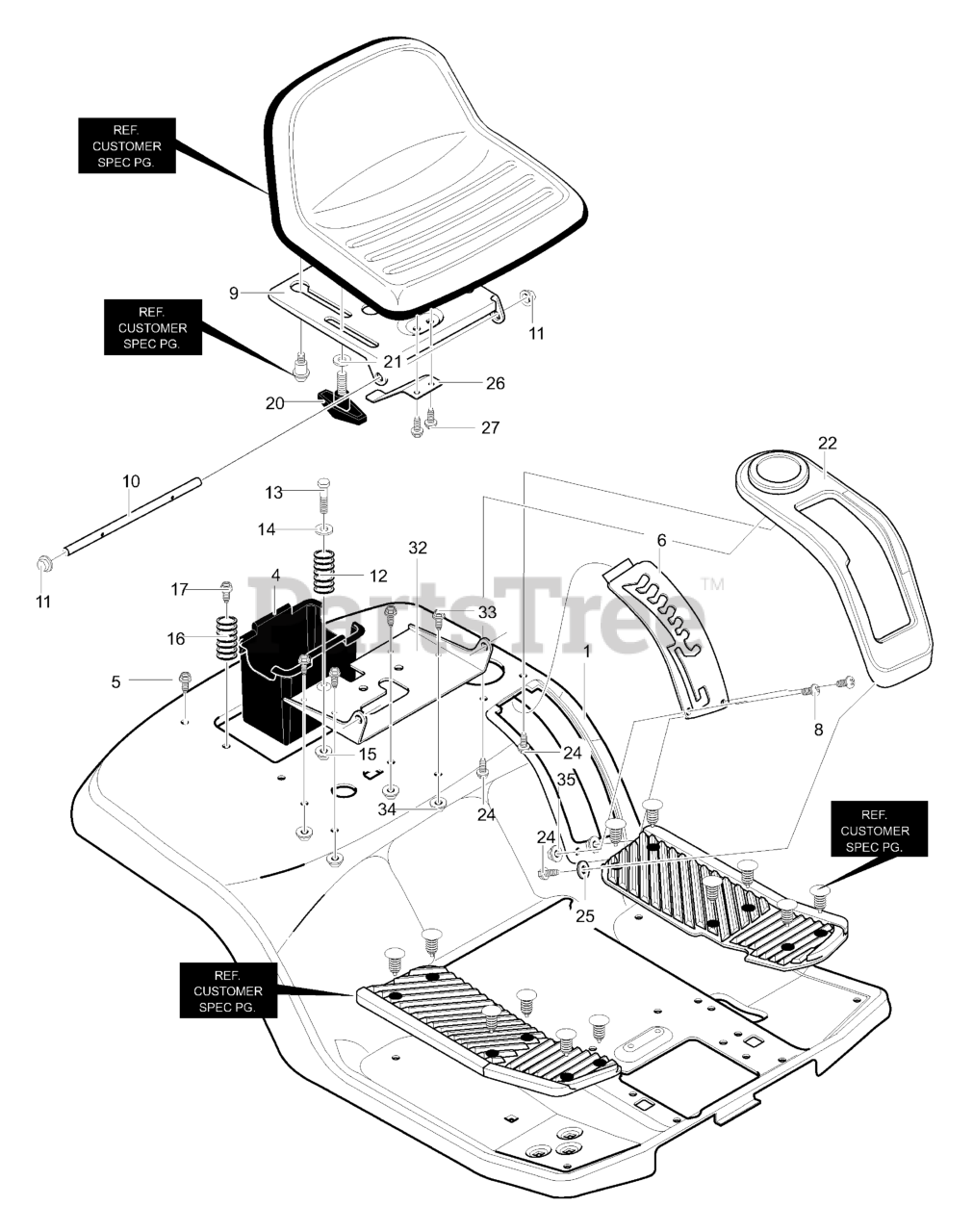

Rear Chassis Assembly Parts Diagram

  • Title

1

Murray 94629-819

SEAT DECK

$134.99

$

Usually ships in 2-12 days

0

4

Murray 690424MA

CONTAINER, BATTERY

$45.99

$

In Stock, only 1 left!

0

5

Murray 711642MA

SCREW, 1/4-20X .63
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

6

Murray 94886-853

PLATE, LIFT

$

$

Currently unavailable

8

Murray 711629

SCREW, 10-24X.500

$

$

Not available

9

Murray 94154-819

SUPPORT, SEAT

$

$

Currently unavailable

10

Murray 95294

HINGE, SEAT PIVOT

$

$

Not available

11

Murray 711627MA

NUT, PUSH CAP

$

$

Not available

12

Murray 710136-853

SPRING, COMPRESSION

$

$

Currently unavailable

13

Murray 711610

BOLT, SHOULDER

$

$

Not available

14

Murray 95293

WASHER, CUP

$1.99

$

Usually ships in 2-12 days

0

15

Murray 302635

NUT, 1/4-20

$4.99

$

Usually ships in 2-12 days

0

16

Murray 710109-853

SPRING, COMPRESSION

$

$

Currently unavailable

17

Murray 711606MA

SCREW

$7.99

$

In Stock, only 2 left!

0

20

Murray 711747MA

BOLT, WING

$3.99

$

Usually ships in 2-12 days

0

21

Murray 711644MA

WASHER

$3.49

$

Usually ships in 2-12 days

0

22

Murray 094469

COVER

$43.99

$

Usually ships in 2-12 days

0

24

Murray 711671MA

SCREW

$3.99

$

Usually ships in 2-12 days

0

25

Murray 071067MA

WASHER

$82.99

$

In Stock, only 1 left!

0

26

Murray 094057MA

SPRING - LEAF

$5.99

$

Usually ships in 2-12 days

0

27

Murray 711592

SCREW, 1/4-20X.50

$335.99

$

Usually ships in 2-12 days

0

32

Murray 94153-819

BRACKET, PIVOT SEAT

$

$

Currently unavailable

33

Murray 711606MA

SCREW, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

34

Murray 711634MA

NUT, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

35

Murray 711842

NUT, #10-24

$8.49

$

Usually ships in 2-12 days

0
