4254 A59 - Electrolux/AYP Walk-Behind Mower (1995) ENGINE/BRIGGS AND STRATTON Parts Diagram

Walk-Behind Mower

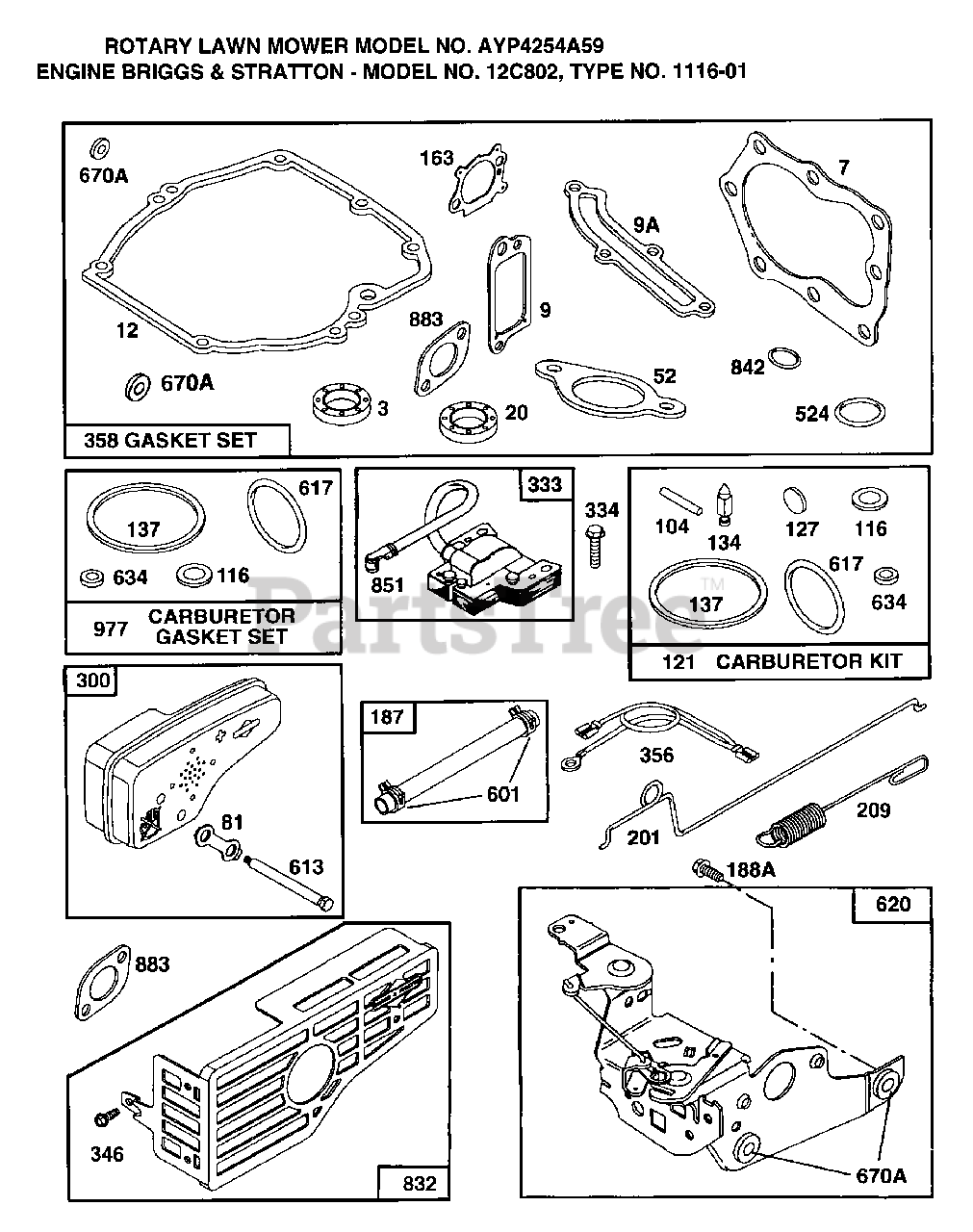

ENGINE/BRIGGS AND STRATTON Parts Diagram

  • Title

3

Briggs & Stratton 299819

SEAL, OIL
(Superseded to 299819S)

$5.49

$

In Stock, Qty 13

0

7

Briggs & Stratton 272916

GASKET, CYLINDER HEAD
(Superseded to 692249)

$8.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 272481

GASKET, VALVE COVER
(Superseded to 699833)

$5.49

$

Usually ships in 2-12 days

0

9A

Briggs & Stratton 272238

GASKET, BAFFLE PLATE
(Superseded to 691879)

$6.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 272198

GASKET, CRANKCASE
(Superseded to 692232)

$5.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 399781

SEAL, OIL
(Superseded to 399781S)

$7.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 272199

GASKET, INTAKE ELBOW
(Superseded to 272199S)

$4.99

$

In Stock, only 1 left!

0

81

Briggs & Stratton 223664

LOCK, MUFFLER SCREW
(Superseded to 691740)

$5.49

$

In Stock, Qty 5

0

104

Briggs & Stratton 231371

PIN, FLOAT HINGE
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

116

REFER TO IMAGE

$

$

Not available

121

Briggs & Stratton 493762

CARB OVERHAUL KIT
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

127

REFER TO IMAGE

$

$

Not available

134

Briggs & Stratton 398188

VALVE, INLET

$6.49

$

In Stock, Qty 20+

0

137

REFER TO IMAGE

$

$

Not available

163

Briggs & Stratton 272653

GASKET AIR CLEANER
(Superseded to 795629)

$3.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 492790

HOSE, FUEL
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

188A

Briggs & Stratton 94644

SCREW, HEX HEAD
(Superseded to 690877)

$3.99

$

In Stock, only 3 left!

0

201

Briggs & Stratton 262579

LINK, GOVERNOR
(Superseded to 691829)

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 263044

SPRING, GOVERNOR
(Superseded to 690319)

$8.49

$

In Stock, only 1 left!

0

*

Briggs & Stratton 497316

GASKET SET
(Superseded to 590508)

$37.99

$

In Stock, only 1 left!

0

*

Briggs & Stratton 493762

CARB OVERHAUL KIT
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

300

Briggs & Stratton 496106

MUFFLER, EXHAUST
(Superseded to 692038)

$29.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 802574

ARMATURE, MAGNETO
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

SCREW, SEMS
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 94602

SCREW, HEX HEAD
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

356

Briggs & Stratton 398808

WIRE, GROUND

$11.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 497316

GASKET SET
(Superseded to 590508)

$37.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 280393

SEAL, FILLER TUBE
(Superseded to 691031)

$5.49

$

In Stock, Qty 20+

0

601

Briggs & Stratton 93807

CLAMP HOSE
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

613

Briggs & Stratton 94231

SCREW, HEX HEAD
(Superseded to 691340)

$4.99

$

In Stock, Qty 7

0

617

Briggs & Stratton 270344

SEAL, FUEL INTAKE TUBE
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

620

Briggs & Stratton 497203

BRACKET, CARBURETOR
(Superseded to 790143)

$44.99

$

Usually ships in 2-12 days

0

634

REFER TO IMAGE

$

$

Not available

670A

Briggs & Stratton 493823

SPACER, BRACKET

$6.49

$

In Stock, only 1 left!

0

832

Briggs & Stratton 494224

GUARD MUFFLER

$40.99

$

In Stock, only 1 left!

0

851

Briggs & Stratton 493880

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 272253

GASKET, MUFFLER
(Superseded to 691881)

$8.99

$

Usually ships in 2-12 days

0

977

Briggs & Stratton 490937

GASKET SET, CARBURETOR
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0
