42534A - Murray 42" Lawn Tractor (1997) Engine Mount Parts Diagram

42" Lawn Tractor

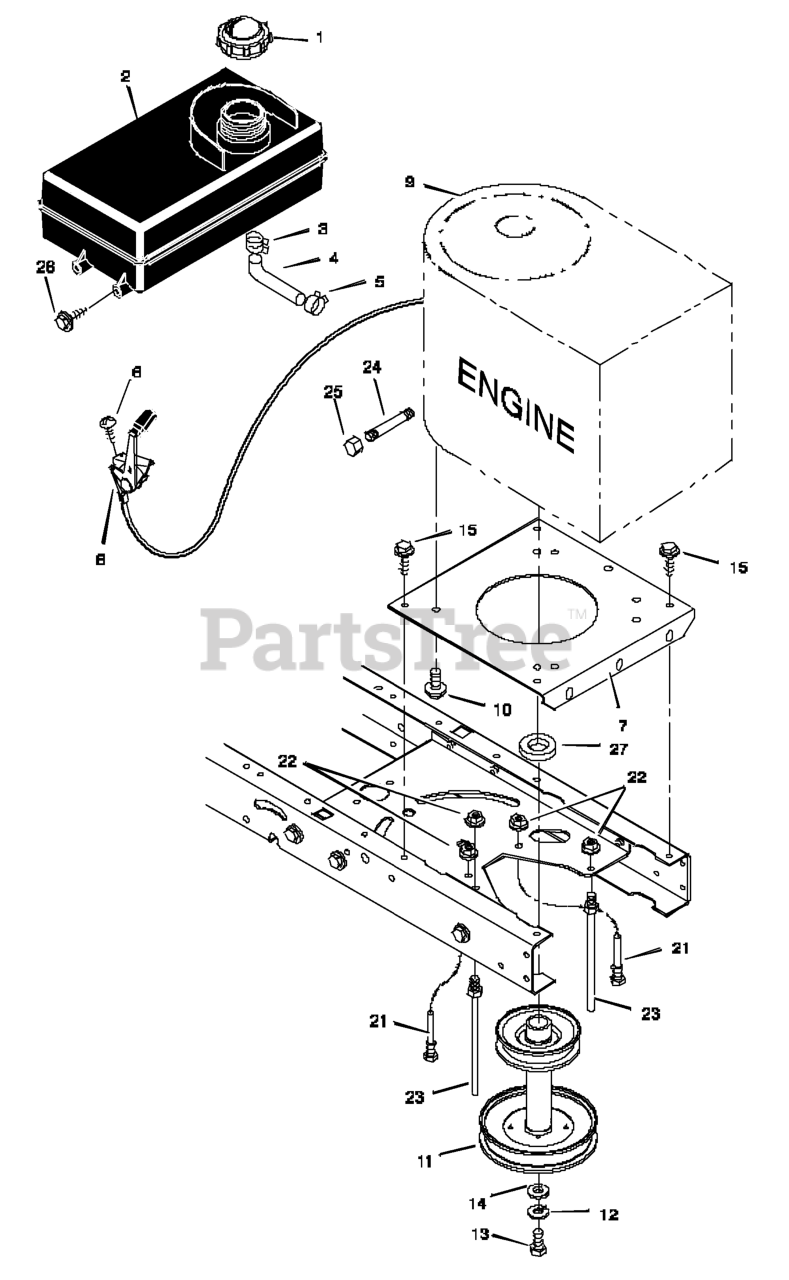

Engine Mount Parts Diagram

  • Title

1

Murray 092317MA

Fuel Cap

$10.99

$

In Stock, Qty 7

0

2

Murray 7601092MA

TANK, Fuel 1.4 Gal.

$78.99

$

In Stock, only 1 left!

0

3

Murray 091174

Hose Clamp

$

$

Currently unavailable

4

Murray 023717

Fuel Line

$7.99

$

In Stock, Qty 20+

0

5

Murray 091174

Hose Clamp

$

$

Currently unavailable

6

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

7

Murray 94006E701

Plate, Engine

$114.99

$

Usually ships in 2-12 days

0

8

Murray 091989

Throttle Control

$

$

Not available

9

Engine

$

$

Not available

10

Murray 0025X7MA

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

11

Murray 094139 Z

Stack Pulley Assembly

$

$

Currently unavailable

12

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, Qty 11

0

13

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, Qty 15

0

14

Murray 17X170MA

Washer

$

$

Not available

15

Murray 26X249MA

Screw

$

$

Not available

21

Murray 933492

Guide, Belt

$

$

Currently unavailable

22

Murray 15X792

Nut, Flange

$

$

Currently unavailable

23

Murray 94066 Z

Guide, Belt

$

$

Currently unavailable

24

Murray 021651

Cap, Oil Drain

$7.49

$

Usually ships in 2-12 days

0

25

Murray 024066

Pipe, Oil Drain

$

$

Currently unavailable

26

Murray 26X253MA

Screw

$4.49

$

In Stock, only 1 left!

0

27

Murray 093077MA

Spacer

$15.99

$

In Stock, only 1 left!

0
