42531x8A - Murray 42" Lawn Tractor (1997) Steering Assembly Parts Diagram

42" Lawn Tractor

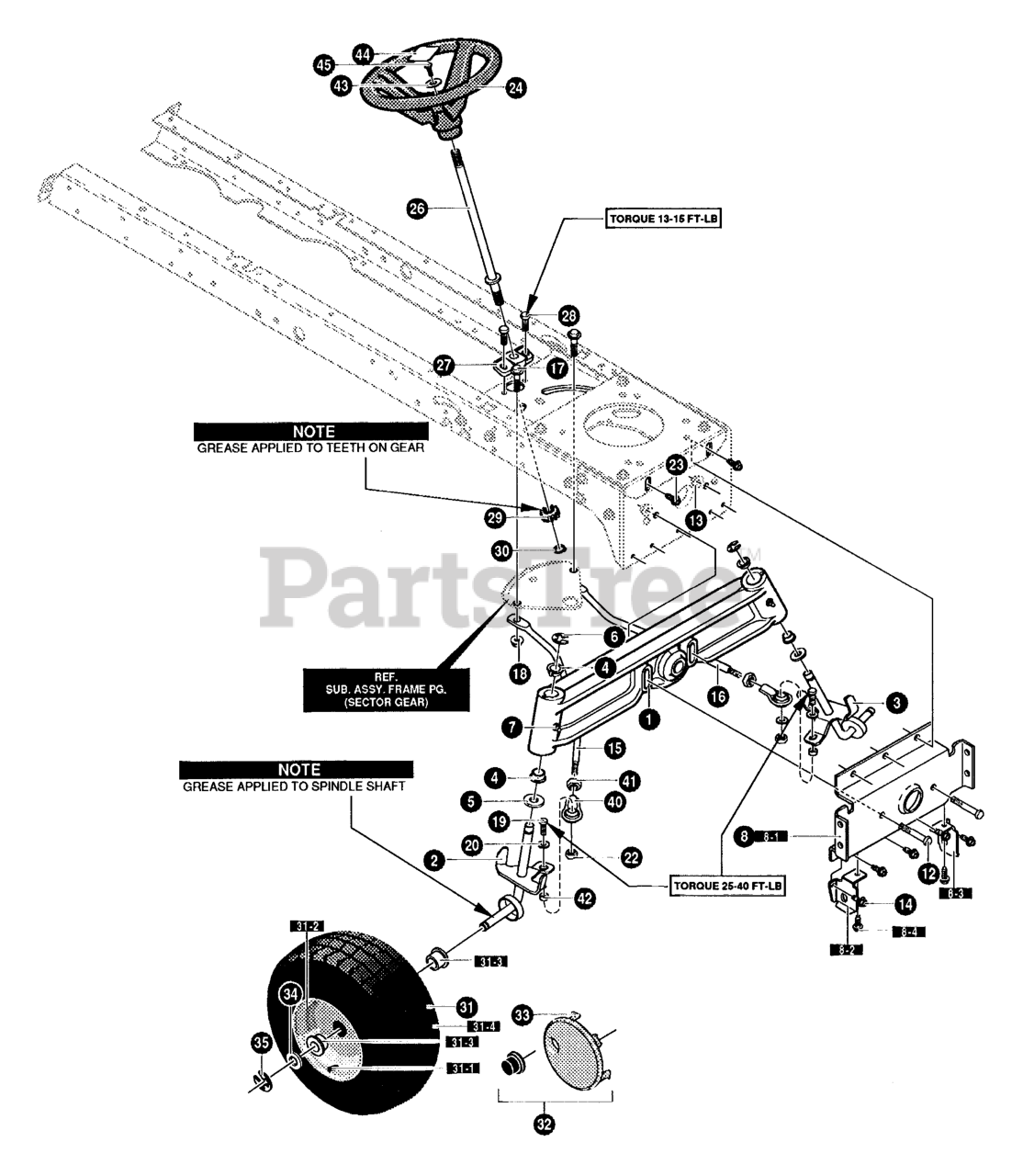

Steering Assembly Parts Diagram

  • Title
1

Murray 94203E717

AXLE, FRONT ASSEMBLY

$

$

Currently unavailable

2

Murray 94732E717

SPINDLE, RH

$

$

Currently unavailable

3

Murray 94733E717

SPINDLE, LH

$

$

Currently unavailable

4

Murray 92527

BEARING, SPINDLE

$6.49

$

In Stock, only 4 left!

0

5

$3.99

$

In Stock, only 2 left!

0

6

Murray 0011X3MA

E- RING

$5.49

$

In Stock, Qty 20+

0

7

Murray 706

ZERK, GREASE FITTING

$2.49

$

Usually ships in 2-12 days

0

8

Murray 341490E717

FRONT AXLE/DECK HANGER

$

$

Currently unavailable

8-1

Murray 94007

HANGER, AXLE

$

$

Currently unavailable

8-2

Murray 94026

HANGER, DECK RH
(Superseded to 93920)

$3.49

$

Usually ships in 2-12 days

0

8-3

Murray 94027

HANGER, DECK LH

$

$

Currently unavailable

8-4

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

12

Murray 01X146MA

SCREW, 5/16-24 x 2.75

$3.99

$

Usually ships in 2-12 days

0

13

Murray 15X118MA

NUT, 5/16- 24

$4.49

$

Usually ships in 2-12 days

0

14

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

15

Murray 94767E717

ROD, DRAG LINK

$

$

Not available

16

Murray 94768E717

ROD, DRAG LINK

$

$

Currently unavailable

17

$9.99

$

In Stock, Qty 11

0

18

Murray 015X84MA

NUT, 3/8- 16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

$

$

Currently unavailable

20

Murray 22265MA

WASHER, FLAT

$4.99

$

Usually ships in 2-12 days

0

22

Murray 015X84MA

NUT, 3/8- 16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

23

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

24

Murray 94806

STEERING WHEEL
(Superseded to 691692)

$3.99

$

Usually ships in 2-12 days

0

26

Murray 94520

SHAFT, STEERING

$64.99

$

Usually ships in 2-12 days

0

27

Murray 94124

BEARING- LOWER

$3.49

$

Usually ships in 2-12 days

0

28

Murray 26X267MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, Qty 20+

0

29

Murray 94122

GEAR, PINNION

$

$

Currently unavailable

30

Murray 011X25MA

RING, RET

$4.49

$

In Stock, Qty 5

0

31

Murray 94581-601

TIRE & RIM 15X6-6

$

$

Not available

31-1

Murray 338512

VALVE STEM

$

$

Not available

31-2

Murray 338517MA

RIM, CARLISLE

$93.99

$

In Stock, only 1 left!

0

31-3

Murray 338513

BEARING

$

$

Not available

31-4

Murray 338515

TIRE, 15X6X6

$

$

Currently unavailable

32

Murray 94480MA

HUB CAP

$

$

Not available

33

Murray 694003MA

CLIP, HUB CAP

$3.99

$

Usually ships in 2-12 days

0

34

$4.99

$

In Stock, only 4 left!

0

35

Murray 0011X3MA

"E" RING

$5.49

$

In Stock, Qty 20+

0

40

Murray 94766

TIE ROD

$

$

Not available

41

Murray 015X72MA

NUT 1/2-20
(Superseded to 7091939YP)

$3.49

$

In Stock, Qty 20+

0

42

Murray 319618MA

SPACER, SLEEVE

$25.99

$

Usually ships in 2-12 days

0

43

Murray 57626

FLATWASHER

$1.99

$

Usually ships in 2-12 days

0

44

Murray 711325MA

INSERT, STEERING WHEEL

$43.99

$

Usually ships in 2-12 days

0

45

$4.49

$

In Stock, Qty 18

0
