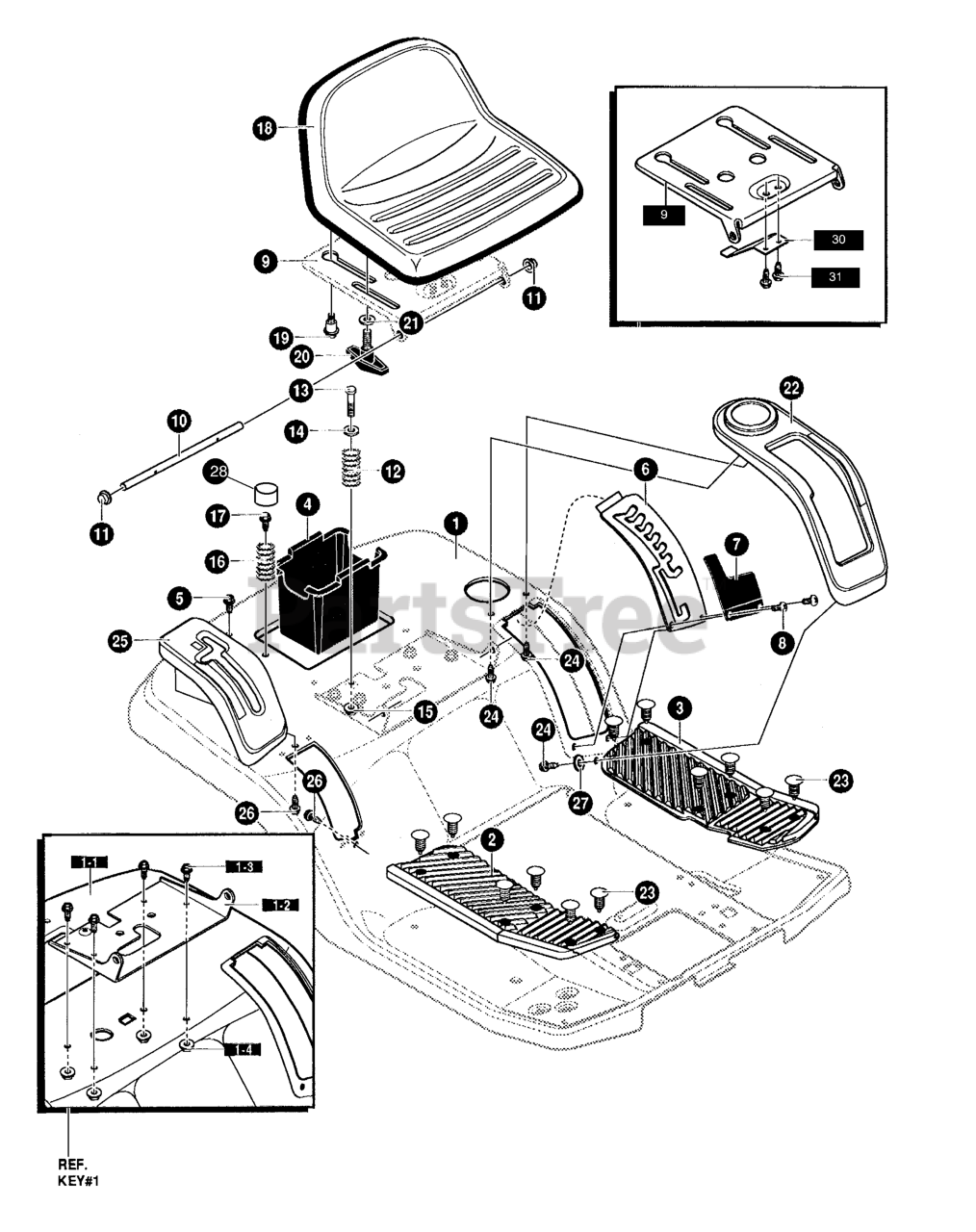

42531x8A - Murray 42" Lawn Tractor (1997) Rear Chassis Assembly Parts Diagram

42" Lawn Tractor

Rear Chassis Assembly Parts Diagram

  • Title
1

Murray 341712E122

LARGE SEAT DECK

$

$

Currently unavailable

1-1

Murray 94628

SEAT DECK, LARGE

$11.99

$

Usually ships in 2-12 days

0

1-2

Murray 94153

BRACKET, PIVOT SEAT
(Superseded to 692198)

$5.99

$

In Stock, Qty 13

0

1-3

Murray 001X45MA

SCREW, 5/16-18 x 0.75
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

1-4

Murray 015X88MA

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

2

Murray 95438

FOOT REST PAD RH

$

$

Not available

3

Murray 95437

FOOT REST PAD LH

$

$

Not available

4

Murray 94069

CONTAINER, BATTERY

$45.99

$

In Stock, only 1 left!

0

5

Murray 26X263MA

SCREW 1/4-20X.63

$4.99

$

In Stock, only 1 left!

0

6

Murray 94194E717

PLATE, LIFT DETENT

$

$

Currently unavailable

7

Murray 94492

COVER, LIFT DETENT

$2.49

$

Usually ships in 2-12 days

0

8

$4.49

$

Usually ships in 2-12 days

0

9

Murray 94154

SUPPORT, SEAT

$

$

Currently unavailable

10

Murray 94156

HINGE SEAT PIVOT

$7.99

$

Usually ships in 2-12 days

0

11

Murray 028X23MA

NUT, PUSH CAP
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

12

Murray 164X31

SPRING, COMPRESS
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

13

Murray 009X55MA

BOLT, SHOULDER 1/4-20

$3.49

$

Usually ships in 2-12 days

0

14

Murray 94155

WASHER CUP

$3.99

$

Usually ships in 2-12 days

0

15

Murray 015X89MA

NUT, 1/4-20

$4.49

$

Usually ships in 2-12 days

0

16

Murray 164X30MA

SPRING, COMPRESS

$15.99

$

Usually ships in 2-12 days

0

17

Murray 26X249MA

SCREW 5/16- 18X.75

$

$

Not available

18

Murray 94804

SEAT
(Superseded to 94804GS)

$9.99

$

Usually ships in 2-12 days

0

19

Murray 711366

BOLT, SHOULDER 5/16- 18

$

$

Currently unavailable

20

Murray 94160

BOLT, WING 5/16- 18X.50
(Superseded to 691679)

$4.49

$

Usually ships in 2-12 days

0

21

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

22

Murray 94491

COVER, DETENT PLATE

$7.99

$

Usually ships in 2-12 days

0

23

Murray 311087MA

FASTENER, RATCHET

$3.49

$

Usually ships in 2-12 days

0

24

Murray 26X284MA

SCREW, 1/4- 15X.44/.53

$3.99

$

Usually ships in 2-12 days

0

25

Murray 94494

COVER, SHIFT

$6.99

$

Usually ships in 2-12 days

0

26

Murray 26X284MA

SCREW, 1/4- 15X.44/.53

$3.99

$

Usually ships in 2-12 days

0

27

Murray 017X38 Z

FLATWASHER

$

$

Currently unavailable

28

Murray 20107

Cap
(Superseded to 5020107)

$2.99

$

Usually ships in 2-12 days

0

30

Murray 94057

SPRING, LEAF
(Superseded to 94124)

$14.99

$

In Stock, only 1 left!

0

31

Murray 26X229MA

SCREW, 1/4-20X.50

$4.49

$

In Stock, only 1 left!

0
