42531x7A - Scotts 42" Lawn Tractor (1997) Pre-painted Blade Housing Assembly Parts Diagram

42" Lawn Tractor

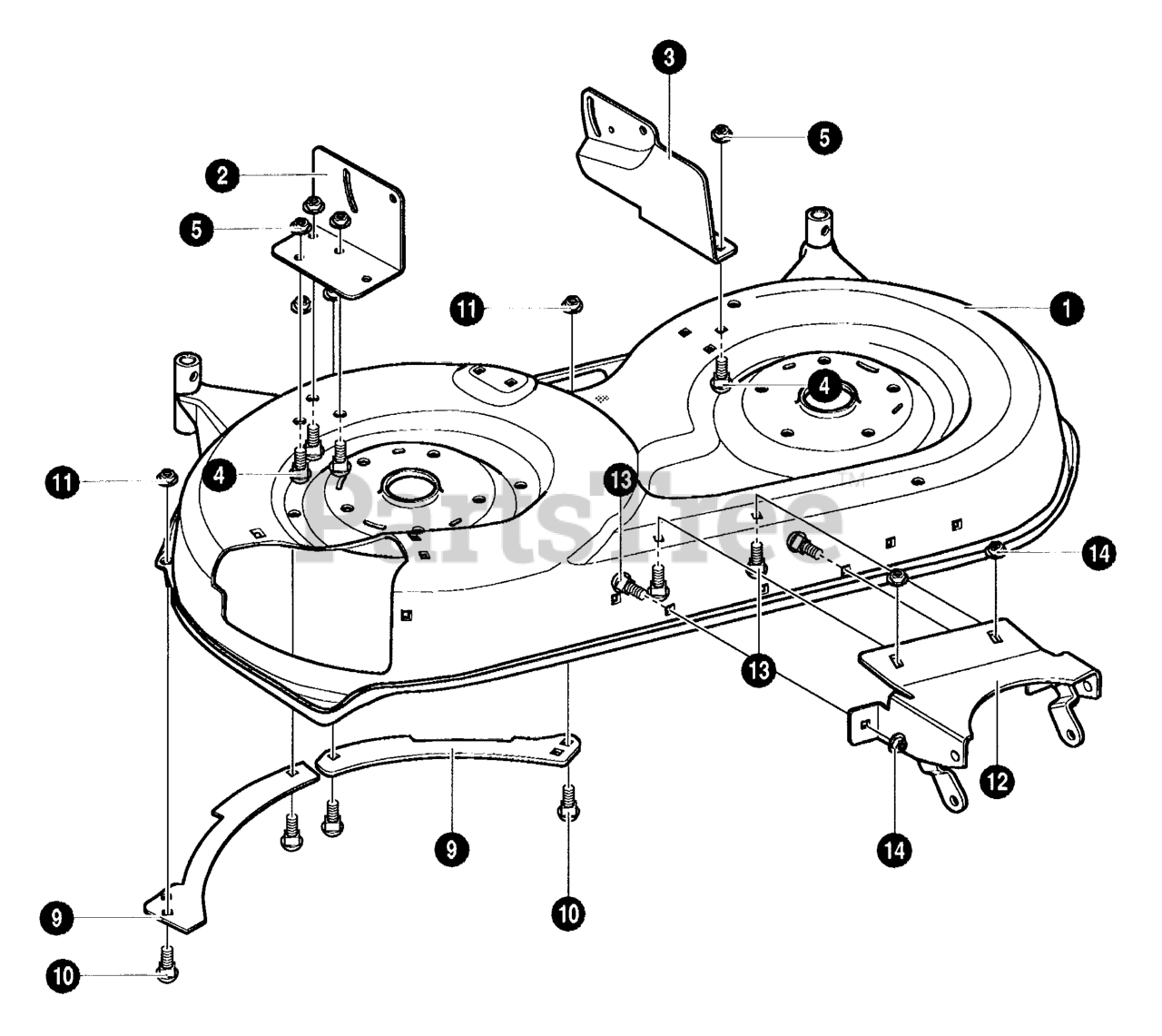

Pre-painted Blade Housing Assembly Parts Diagram

  • Title
1

Murray 710144E717

ASSY BLD HSING 42"

$

$

Currently unavailable

2

Murray 94191E717

BRACKET, DECK RH

$

$

Currently unavailable

3

Murray 94192E717

BRACKET, DECK LH

$

$

Currently unavailable

4

Murray 002X53MA

BOLT, 5/16- 18X.63
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

5

Murray 015X79MA

NUT, 5/16- 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Murray 92426E700

TOEGUARD, FLANGE

$3.99

$

Usually ships in 2-12 days

0

10

Murray 002X53MA

BOLT, 5/16- 18X.63
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

11

Murray 015X88MA

NUT, 5/16- 18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

12

Murray 710143E717

ASSY FRONT BRACKET ROLLER

$30.99

$

Usually ships in 2-12 days

0

13

Murray 002X53MA

BOLT, 5/16- 18X.63
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

14

Murray 015X79MA

NUT, 5/16- 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0
