425307x51A (7800282) - Murray 42" Lawn Tractor (2008) Chassis & Hood Parts Diagram

42" Lawn Tractor

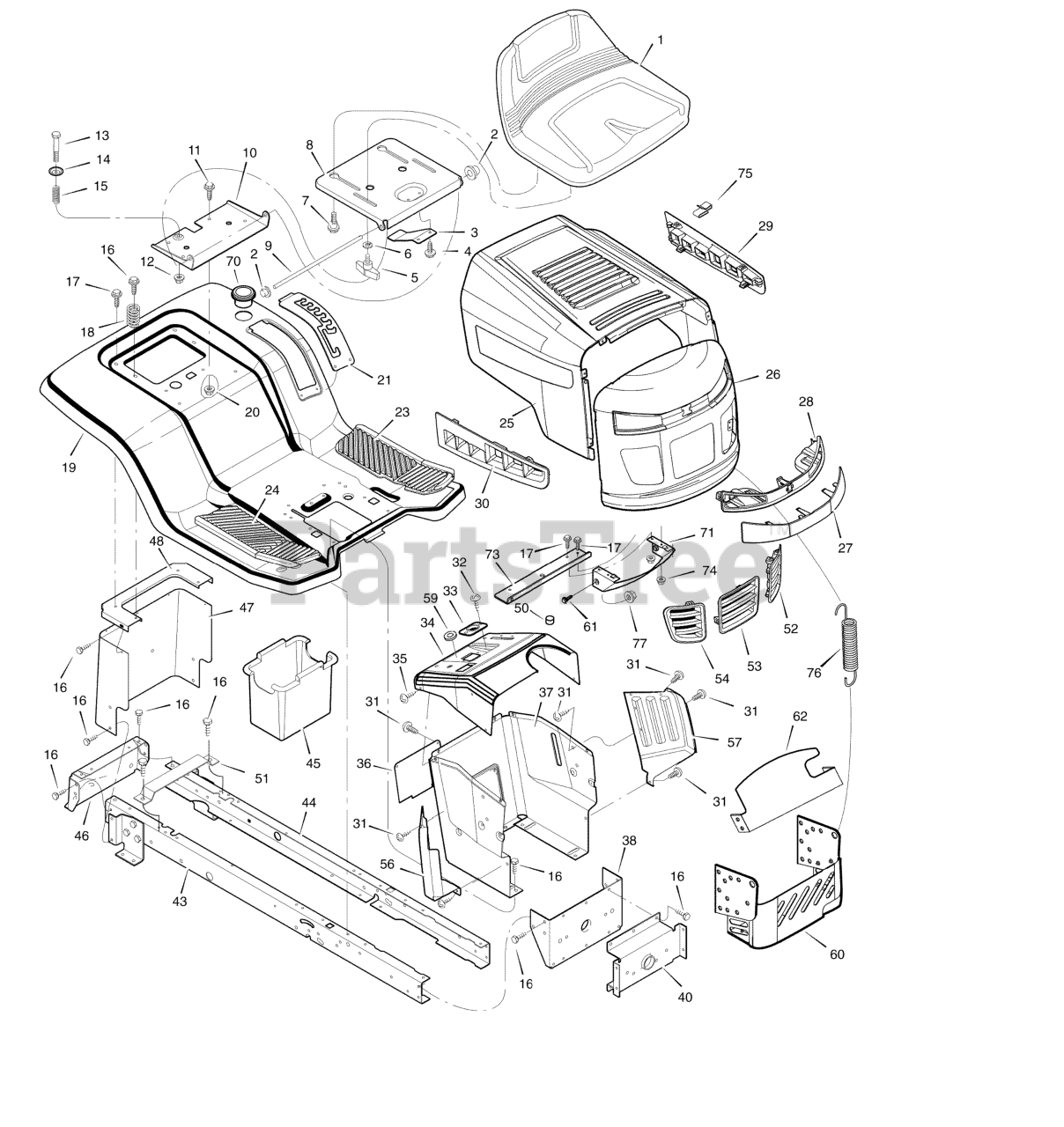

Chassis & Hood Parts Diagram

  • Title
1

Murray 1001028MA

Seat
(Superseded to 1687498YP)

$445.99

$

Usually ships in 2-12 days

0

2

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

3

$5.99

$

Usually ships in 2-12 days

0

4

$4.49

$

In Stock, only 1 left!

0

5

Murray 1001054MA

Bolt, Wing

$6.99

$

Usually ships in 2-12 days

0

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

8

Murray 7300875ZMA

Support, Seat
(Superseded to 7300875BMYP)

$65.99

$

Usually ships in 2-12 days

0

9

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 1001648E701MA

Bracket, Pivot

$42.99

$

Usually ships in 2-12 days

0

11

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

14

Murray 094155ZMA

Washer, Cup

$3.99

$

Usually ships in 2-12 days

0

15

$7.99

$

In Stock, only 2 left!

0

16

$

$

Not available

17

$4.99

$

In Stock, only 1 left!

0

18

$15.99

$

Usually ships in 2-12 days

0

19

Murray 7300841ZYP

Deck, Seat

$433.99

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

21

Murray 7300838ZYP

Plate, Index

$19.99

$

Usually ships in 2-12 days

0

23

Murray 1001143MA

Mat, Left

$8.49

$

Usually ships in 2-12 days

0

24

Murray 1001142MA

Mat, Right

$8.49

$

Usually ships in 2-12 days

0

25

Murray 1001812E701MA

Hood
(Superseded to 7400263ZYP)

$296.99

$

Usually ships in 2-12 days

0

26

Murray 1001813E701MA

Grille
(Superseded to 7400282ZYP)

$118.99

$

In Stock, only 1 left!

0

27

Murray 1001820MA

Plastic Cover, Center

$53.99

$

Usually ships in 2-12 days

0

28

Murray 1001819MA

Headlamp Housing, Center

$36.99

$

Usually ships in 2-12 days

0

29

Murray 1741765YP

Hood Insert, Left

$22.99

$

Usually ships in 2-12 days

0

30

Murray 1741766YP

Hood Insert, Right

$22.99

$

Usually ships in 2-12 days

0

31

$4.49

$

In Stock, Qty 13

0

32

$3.99

$

Usually ships in 2-12 days

0

33

Murray 1001491MA

Bearing, Steering

$5.49

$

Usually ships in 2-12 days

0

$99.99

$

Usually ships in 2-12 days

0

35

$4.49

$

In Stock, only 2 left!

0

36

Murray 7300750TMA

Panel, Access

$12.99

$

Usually ships in 2-12 days

0

37

Murray 7300872TMA

Support, Dash

$142.99

$

Usually ships in 2-12 days

0

38

Murray 7300751TYP

Bracket, Rear Hanger

$53.99

$

Usually ships in 2-12 days

0

40

Murray 7300742TYP

Axle, Hanger

$38.99

$

Usually ships in 2-12 days

0

43

Murray 1001928E701MA

Frame, Right

$104.99

$

Usually ships in 2-12 days

0

44

Murray 1001927E701MA

Frame, Left
(Superseded to 1001269E701MA)

$103.99

$

Usually ships in 2-12 days

0

45

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

46

Murray 1001002E701MA

Plate, Hitch

$

$

Not available

47

Murray 1001906E701MA

Plate, Rear
(Superseded to 7300866ZYP)

$74.99

$

Usually ships in 2-12 days

0

48

Murray 094186E701MA

Top, Rear Plate

$26.99

$

Usually ships in 2-12 days

0

50

Murray 094376MA

Bumper, Black

$3.49

$

Usually ships in 2-12 days

0

51

Murray 690482E701MA

Bracket, Battery Support

$

$

Not available

52

Murray 1741769YP

Grille Insert, Left

$22.99

$

Usually ships in 2-12 days

0

53

Murray 1741767YP

Grille Insert, Center

$16.99

$

Usually ships in 2-12 days

0

54

Murray 1741768YP

Grille Insert, Right

$10.99

$

Usually ships in 2-12 days

0

56

Murray 095217MA

Panel, Side, RH

$38.99

$

Usually ships in 2-12 days

0

57

Murray 095218MA

Panel, Side, LH

$38.99

$

Usually ships in 2-12 days

0

59

Murray 1001755MA

Grommet, Parking Brake

$3.49

$

Usually ships in 2-12 days

0

60

Murray 1740501AYP

Shield, Heat

$125.99

$

Usually ships in 2-12 days

0

61

Murray 009X58MA

Bolt, Shoulder
(Superseded to 702315)

$6.99

$

Usually ships in 2-12 days

0

62

Murray 1740502AMA

Guard, Heat Shield Upper

$24.99

$

Usually ships in 2-12 days

0

70

Murray 1741770MA

Holder, Cup

$11.99

$

Usually ships in 2-12 days

0

71

Murray 1001799E701MA

Bracket, Lower Pivot

$28.99

$

Usually ships in 2-12 days

0

73

Murray 1001921E701MA

Bracket, Grille Support

$29.99

$

Usually ships in 2-12 days

0

74

Murray 015X82MA

Nut, Flange Lock

$3.49

$

Usually ships in 2-12 days

0

75

Murray 028X83MA

Retainer, S-Clips

$3.99

$

In Stock, only 2 left!

0

76

Murray 165X124MA

Spring, Extension

$7.99

$

Usually ships in 2-12 days

0

77

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

--

Murray 1002050MA

Parts Bag, Assembly

$20.99

$

Usually ships in 2-12 days

0

--

Murray 7102109

Manual, Parts List

$

$

Currently unavailable

--

Murray 7102110

Instruction Book

$

$

Currently unavailable
