425181 - Electrolux/AYP Lawn Tractor (1994) CHASSIS AND ENCLOSURES/18 HP 44" Parts Diagram

Lawn Tractor

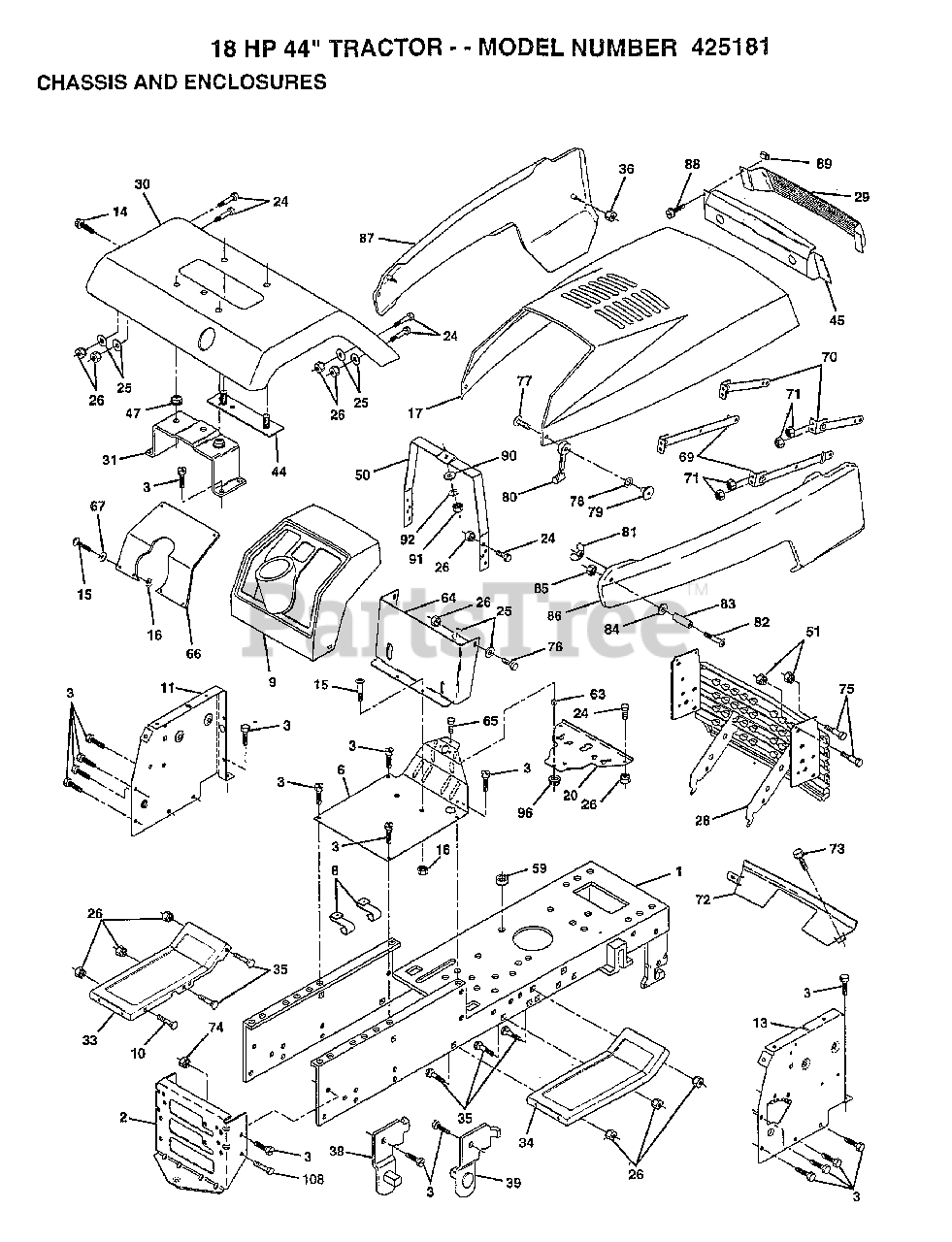

CHASSIS AND ENCLOSURES/18 HP 44" Parts Diagram

  • Title
1

Electrolux/AYP 140341

SUB= 145501

$

$

Not available

2

Electrolux/AYP 123785X

DRAW BAR
(Superseded to 532145009)

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

6

Electrolux/AYP 127543

SUB= 127543X011

$

$

Not available

8

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 140398

DASHBOARD BLACK
(Superseded to 584445901)

$21.99

$

Usually ships in 3-10 days

0

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 138644

PANEL.DASH.LH

$

$

Not available

13

Electrolux/AYP 138643

PANEL.DASH.RH

$

$

Not available

14

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 132635X505

SUB= 150301X505

$

$

Not available

15

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 140181

PLATE.SUPT.BATTER
(Superseded to 532140181)

$

$

Not available

24

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 131681

SUB= 131681X431

$

$

Not available

29

Electrolux/AYP 106395X

LENS LT
(Superseded to 583650801)

$37.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 140002X505

FENDER.PNT.
(Superseded to 167270X505)

$91.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 137113

BRKT.ASM.FENDER
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 105465X505

SUB= 145244X505

$

$

Not available

34

Electrolux/AYP 105464X505

SUB= 145243X505

$

$

Not available

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$

$

Not available

44

Electrolux/AYP 140675

STRAP ASM FENDER
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 124392X417

SUB= 147717
(Superseded to 583678801)

$

$

Not available

47

Electrolux/AYP 105531X

NUT-PUSH YT
(Superseded to 532105531)

$2.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 124130X

SUPPORT ASS'Y
(Superseded to 532124130)

$

$

Not available

51

Electrolux/AYP 73800400

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

59

$

$

Not available

63

Electrolux/AYP 121236X

SPACER
(Superseded to 532121236)

$

$

Not available

64

Electrolux/AYP 104805X

LOWER DASH
(Superseded to 532104805)

$

$

Not available

65

Electrolux/AYP 74760532

BOLT
(Superseded to 874760532)

$2.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 140299X012

PLATE SLKSCR YP

$7.49

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

69

$

$

Not available

70

$

$

Not available

71

Electrolux/AYP 73640400

NUT HXKEP 1/4X20
(Superseded to 873640400)

$

$

Not available

72

Electrolux/AYP 144916X505

STRAP.GRILLE.PNT.
(Superseded to 144916X428)

$

$

Not available

73

Electrolux/AYP 17580408

SCREW CRT
(Superseded to 817580408)

$

$

Not available

74

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

75

$

$

Not available

76

Electrolux/AYP 74780620

BOLT
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 74191008

SCREW
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

78

Electrolux/AYP 10071000

LOCKWASHER
(Superseded to 810071000)

$4.99

$

In Stock, Qty 14

0

79

Electrolux/AYP 2029J

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

80

Electrolux/AYP 109808X

HOOD LATCH T
(Superseded to 532109808)

$6.99

$

In Stock, Qty 15

0

81

Electrolux/AYP 123198X

SUB= 146525
(Superseded to 146525)

$

$

Not available

82

Electrolux/AYP 74981020

SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 10

0

83

Electrolux/AYP 7206J

SPACER LT
(Superseded to 532007206)

$7.49

$

In Stock, Qty 8

0

84

Electrolux/AYP 19070818

WASHER
(Superseded to 532004802)

$2.99

$

Usually ships in 3-10 days

0

$2.49

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 140679X505

PANEL SIDE RH
(Superseded to 150303X505)

$

$

Not available

87

Electrolux/AYP 140678X505

SUB= 150302X505
(Superseded to 150302X505)

$

$

Not available

$2.49

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 104755X

"""J"" FASTENER LT"

$2.99

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

92

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

96

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

108

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 2 left!

0

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

Electrolux/AYP 8022J

PLUG-DASH T
(Superseded to 532125085)

$

$

Not available
