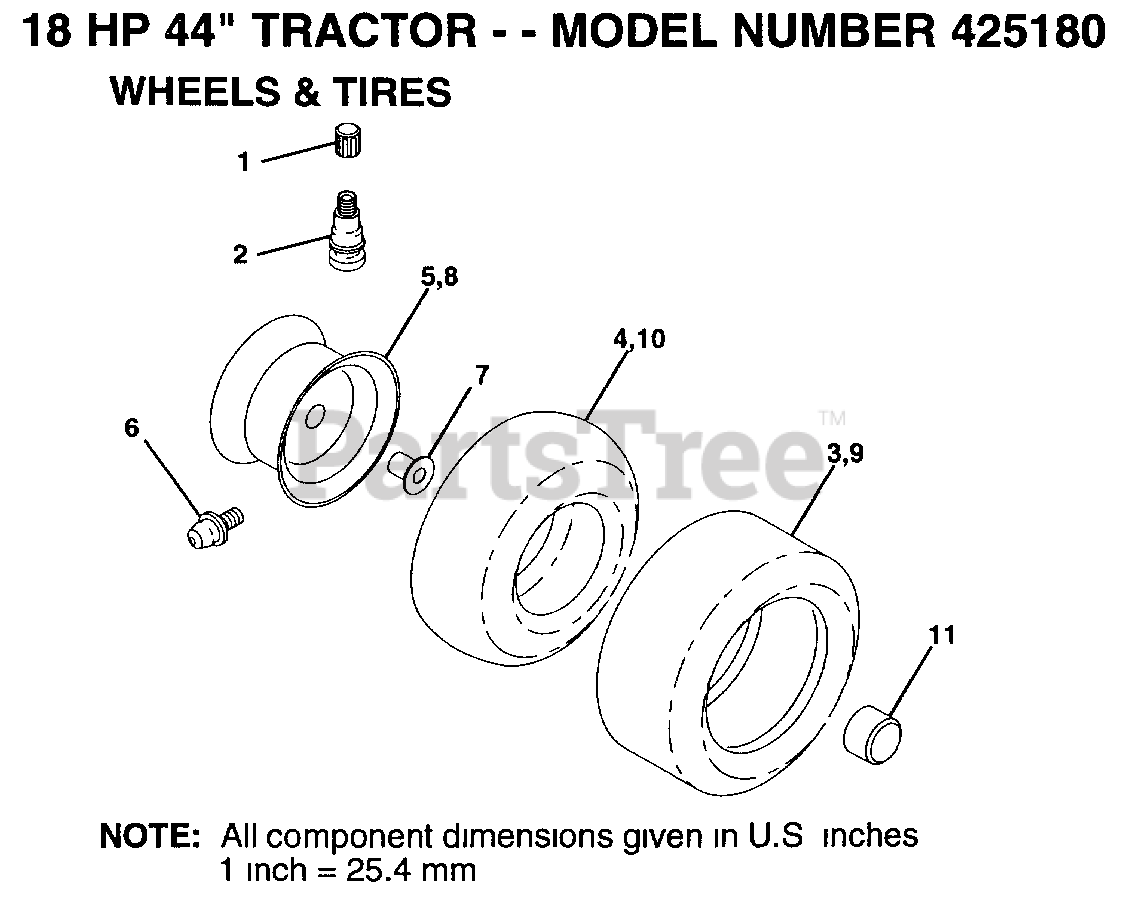

425180 - Electrolux/AYP Lawn Tractor (1994) WHEELS AND TIRES Parts Diagram

Lawn Tractor

WHEELS AND TIRES Parts Diagram

  • Title
1

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

2

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 106230X

SUB= 122075X
(Superseded to 532106230)

$

$

Not available

4

Electrolux/AYP 59904

TUBE.5.3/4.5/6
(Superseded to 532059904)

$37.99

$

In Stock, Qty 7

0

5

Electrolux/AYP 106228X417

RIM.FRONT.
(Superseded to 532148736)

$157.99

$

In Stock, only 2 left!

0

6

Electrolux/AYP 278H

FITTING LT
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 9040H

"FLANGE, BEARING"
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 106277X417

"WHEEL,REAR"
(Superseded to 532106277)

$227.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 124106X

SUB= 138756
(Superseded to 532138756)

$227.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 7154J

TUBE.23X8/10-12
(Superseded to 532007154)

$80.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 104757X

HUB CAP
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0
