425171 - Electrolux/AYP Lawn Tractor (1995) ENGINE Parts Diagram

Lawn Tractor

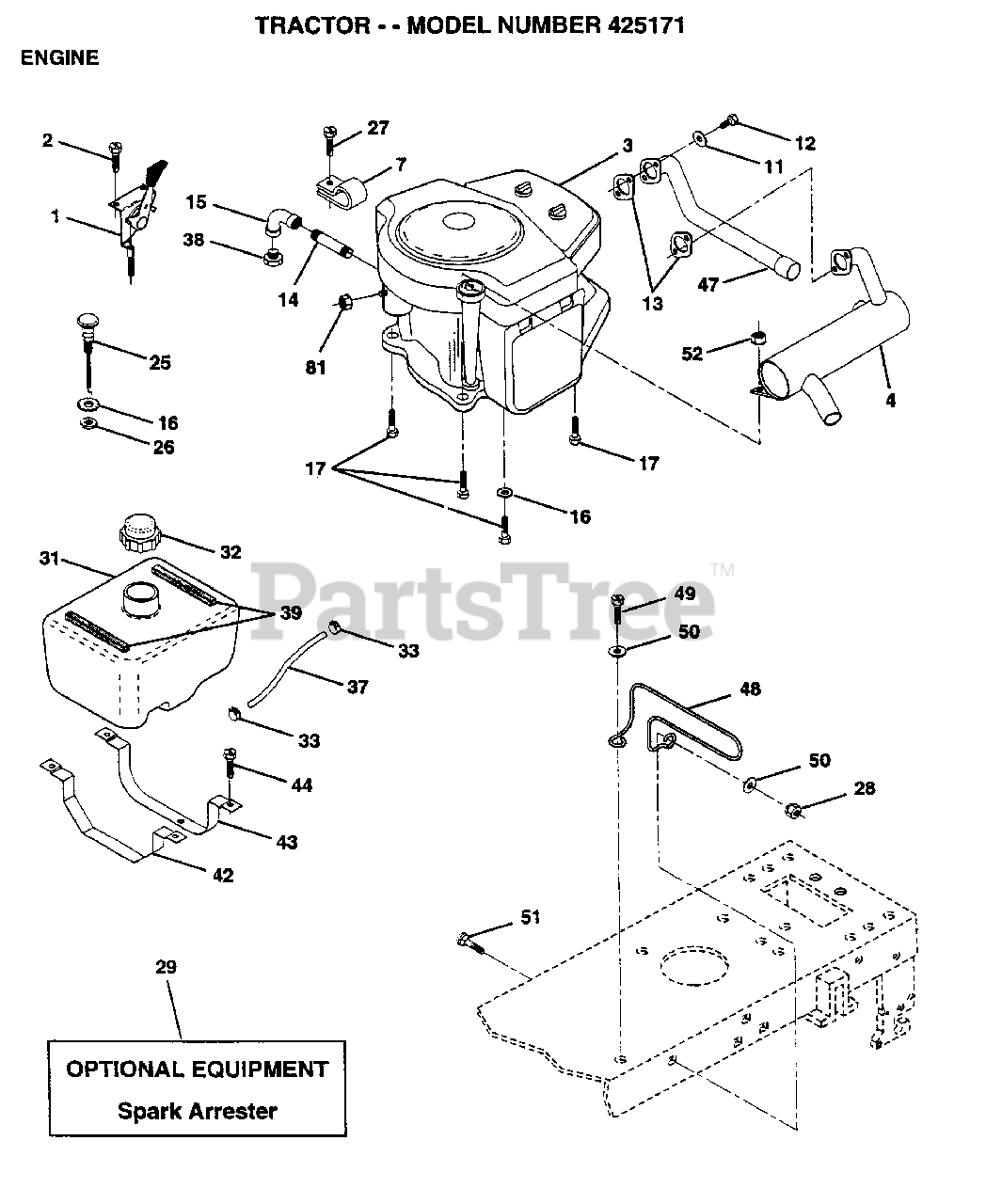

ENGINE Parts Diagram

  • Title
1

Electrolux/AYP 132747

SUB= 532132748
(Superseded to 532132747)

$

$

Not available

2

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

3

Electrolux/AYP 422707

ENGINE B&S 18HP

$

$

Not available

4

$

$

Not available

7

Electrolux/AYP 138129

CLAMP.TUBE.DBL.EN
(Superseded to 532138129)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

12

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

13

Electrolux/AYP 8545J

SUB= 272250

$

$

Not available

14

Electrolux/AYP 13280336

PIPE NIPPLE LT
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

15

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

16

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

25

Electrolux/AYP 138672

"CONTROL.CHOKE.51"""
(Superseded to 532138672)

$

$

Not available

26

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 17541008

SCREW.10-24X1/2
(Superseded to 817541008)

$4.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 137180

SUB= 532137180
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 141291

TANK FUEL 1.9 NAT

$

$

Not available

33

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

32

Electrolux/AYP 140527

CAP ASM FUEL
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 7833R

HOSE T
(Superseded to 532007833)

$4.99

$

Usually ships in 3-10 days

0

38

CHECK WITH SUPPLIER

$

$

Not available

39

Electrolux/AYP 126564X

"STRIP,FORM"
(Superseded to 583671601)

$2.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 140020

STRAP TANK FUEL
(Superseded to 574964501)

$

$

Not available

43

Electrolux/AYP 140019

STRAP TANK FRONT

$

$

Not available

44

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

47

Electrolux/AYP 100229L

EXHAUST TUBE T

$

$

Not available

48

Electrolux/AYP 135029

MUFFLER GUARD

$7.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

50

Electrolux/AYP 19131616

WASHER HYT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 72110608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 73510600

NUT
(Superseded to 873510600)

$6.49

$

Usually ships in 3-10 days

0

81

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available
