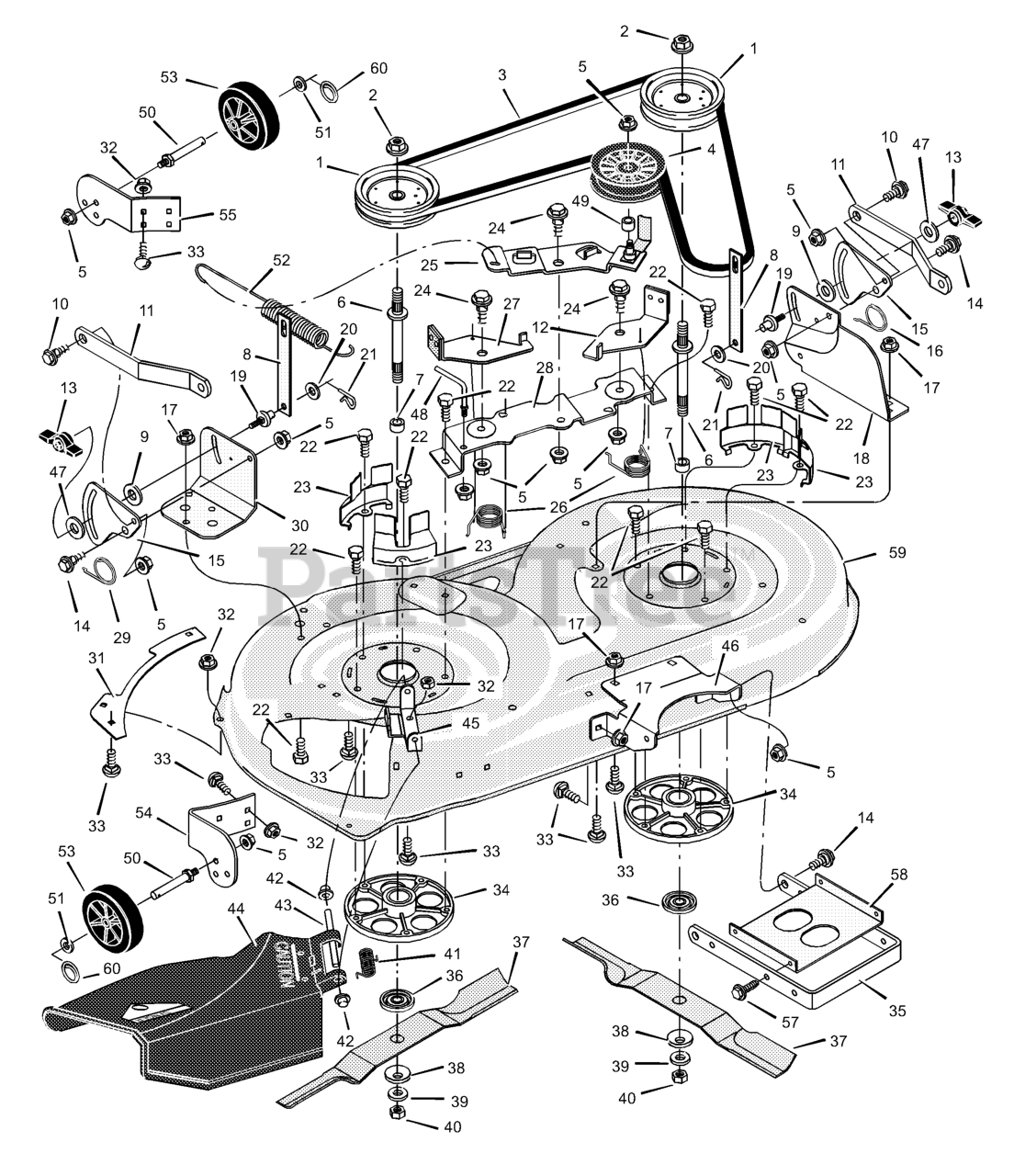

42516x92B - Briggs & Stratton 42" Lawn Tractor (2002) Mower Housing Parts Diagram

42" Lawn Tractor

Mower Housing Parts Diagram

  • Title
1

Murray 494199MA

Pulley, Jackshaft

$29.99

$

Usually ships in 2-12 days

0

2

Murray 15X121

Nut, Hex

$9.99

$

In Stock, Qty 7

0

3

Murray 037X88MA

Belt, Mower Drive

$33.99

$

In Stock, Qty 20+

0

4

Murray 690387MA

Pulley, Idler

$

$

Not available

5

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

6

Murray 1001049

Jackshaft

$51.99

$

In Stock, Qty 15

0

7

$5.99

$

In Stock, Qty 12

0

8

Murray 690212E700

Link, Lift

$

$

Currently unavailable

9

Murray 094137MA

Pad, Friction

$6.99

$

In Stock, Qty 8

0

10

Murray 009X52MA

Bolt, Shoulder

$6.49

$

In Stock, only 1 left!

0

11

Murray 094055E701MA

Bracket, Suspension

$13.99

$

Usually ships in 2-12 days

0

12

Murray 094049E701MA

Pad Assembly, Left Brake

$

$

Not available

13

Murray 094068MA

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

14

Murray 009X51MA

Bolt, Shoulder

$4.99

$

In Stock, only 2 left!

0

15

Murray 094128E700MA

Plate, Suspension
(Superseded to 7300878BMYP)

$15.99

$

Usually ships in 2-12 days

0

16

$4.99

$

In Stock, only 2 left!

0

17

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Murray 094192E700

Bracket, Suspension

$

$

Currently unavailable

19

Murray 94194

Pin, Hanger

$

$

Currently unavailable

20

$4.99

$

In Stock, only 2 left!

0

21

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

22

Murray 0025X7MA

Bolt
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

23

Murray 094051E701MA

Cover, Pulley
(Superseded to 7300859BMYP)

$31.99

$

In Stock, only 2 left!

0

24

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 5

0

25

Murray 690408E700

Arm, Idler

$

$

Currently unavailable

26

$4.99

$

In Stock, only 2 left!

0

27

Murray 094047E701MA

Pad Assembly, Right Brake

$

$

Not available

28

Murray 094193E701MA

Bracket, Brake

$58.99

$

Usually ships in 2-12 days

0

29

$4.99

$

In Stock, Qty 8

0

30

Murray 094191E700

Bracket, Suspension

$46.99

$

Usually ships in 2-12 days

0

$10.99

$

In Stock, only 1 left!

0

32

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

33

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

34

Murray 092574

Mandrell Housing

$

$

Currently unavailable

35

Murray 690539E701MA

Bracket, Suspension

$54.99

$

Usually ships in 2-12 days

0

36

Murray 1001035

Adapter, Blade

$9.99

$

In Stock, only 2 left!

0

$19.99

$

In Stock, Qty 20+

0

38

$13.99

$

In Stock, Qty 18

0

39

$16.99

$

In Stock, only 4 left!

0

$3.99

$

In Stock, Qty 10

0

41

$6.49

$

In Stock, Qty 9

0

42

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

43

Murray 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

44

Murray 094707SE

Deflector Assembly

$

$

Currently unavailable

45

Murray 094956E701MA

Bracket, Deflector Hinge

$22.99

$

Usually ships in 2-12 days

0

46

Murray 094686E700

Bracket, Front Hanger

$

$

Currently unavailable

47

$

$

Not available

48

Murray 094781MA

Guide, Belt

$60.99

$

Usually ships in 2-12 days

0

49

$

$

Not available

50

Murray 094025MA

BOLT, Gauge Wheel

$11.99

$

In Stock, only 1 left!

0

51

$5.49

$

In Stock, Qty 11

0

52

Murray 165X119MA

Spring, Extension

$13.99

$

In Stock, only 1 left!

0

53

Murray 092683MA

Wheel, Gage

$15.99

$

In Stock, only 3 left!

0

54

Murray 1001260E701MA

Bracket, Right Wheel

$28.99

$

Usually ships in 2-12 days

0

55

Murray 092423E700

Bracket, Left Wheel

$

$

Currently unavailable

57

$

$

Not available

58

Murray 094604E700

Stiffener

$

$

Currently unavailable

59

Murray 094814E701MA

Housing, Blade, Complete (NO LONGER AVAILABLE)

Note: (Includes Ref. No. 17, 18, 30, 31, 32, 33, 45, 46, 53, 54, 55, and 56)

$

$

Not available

59

Murray 094188E701MA

Housing, Blade (Housing Only)

$

$

Not available

60

Murray 031X11MA

Ring, Locking

$4.49

$

In Stock, only 2 left!

0
