42516x92B - Briggs & Stratton 42" Lawn Tractor (2002) Chassis & Hood Parts Diagram

42" Lawn Tractor

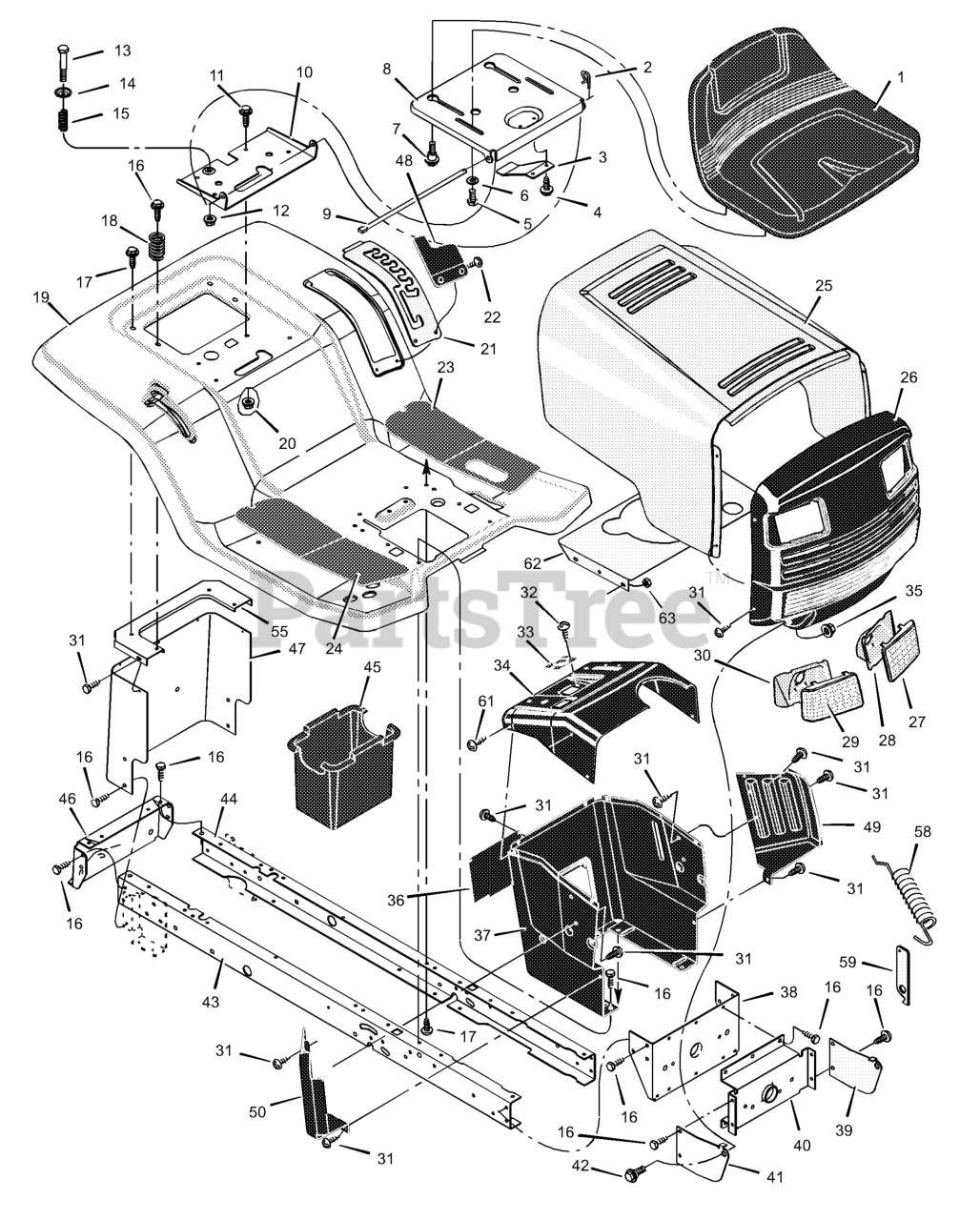

Chassis & Hood Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 18

0

3

$5.99

$

Usually ships in 2-12 days

0

4

$4.49

$

In Stock, only 1 left!

0

5

Murray 094160

Bolt, Wing

$

$

Not available

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

8

Murray 094154E700

Support, Seat

$

$

Currently unavailable

9

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 094153E700MA

Bracket, Pivot
(Superseded to 1001648E701MA)

$42.99

$

Usually ships in 2-12 days

0

11

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

14

$

$

Currently unavailable

15

Murray 164X31

Spring
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

16

$

$

Not available

17

$4.99

$

In Stock, only 1 left!

0

18

$15.99

$

Usually ships in 2-12 days

0

19

Murray 095326E276

Deck, Seat

$

$

Currently unavailable

20

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

21

Murray 094194E701MA

Plate, Index

$50.99

$

In Stock, only 1 left!

0

22

$4.49

$

Usually ships in 2-12 days

0

23

Murray 094383MA

Mat, Left

$

$

Not available

24

Murray 094382MA

Mat, Right

$

$

Not available

$

$

Currently unavailable

$

$

Not available

27

Murray 094093MA

Lens, Left

$8.49

$

In Stock, only 1 left!

0

28

Murray 094089 Z

Bezel, Left

$

$

Currently unavailable

29

Murray 094092MA

Lens, Right

$8.49

$

In Stock, only 1 left!

0

30

Murray 094088 Z

Bezel, Right

$

$

Currently unavailable

31

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

32

$3.99

$

Usually ships in 2-12 days

0

33

Murray 094075

Bearing, Steering

$

$

Currently unavailable

$

$

Currently unavailable

35

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

36

Murray 093007E701MA

Panel, Access

$31.99

$

Usually ships in 2-12 days

0

37

Murray 095318E701MA

Support, Dash

$155.99

$

Usually ships in 2-12 days

0

38

Murray 094013E701MA

Bracket, Rear Hanger
(Superseded to 1001270E701MA)

$165.99

$

Usually ships in 2-12 days

0

39

Murray 094085E701MA

Support, Left Grille

$

$

Not available

40

Murray 094007E701MA

Axle, Hanger

$32.99

$

Usually ships in 2-12 days

0

41

Murray 094084E701MA

Support, Right Grille

$

$

Not available

42

Murray 009X58MA

Bolt, Shoulder
(Superseded to 702315)

$6.99

$

Usually ships in 2-12 days

0

43

Murray 1001124E700

Frame, Right

$

$

Currently unavailable

44

Murray 1001123E700

Frame, Left

$

$

Currently unavailable

45

Murray 094069

Container, Battery

$45.99

$

In Stock, only 1 left!

0

46

Murray 1001002E701

Plate, Hitch

$

$

Not available

47

Murray 690218E700

Panel, Rear

$

$

Not available

48

Murray 094680MA

Cover, Level Adjustment

$7.49

$

In Stock, only 1 left!

0

49

Murray 95218E700

Panel, Left Side

$38.99

$

Usually ships in 2-12 days

0

50

Murray 95217E700

Panel, Right Side

$

$

Currently unavailable

55

Murray 094186E700

Plate, Rear

$

$

Currently unavailable

58

Murray 165X124MA

Extension, Spring

$7.99

$

Usually ships in 2-12 days

0

59

Murray 094830 Z

Bracket

$

$

Currently unavailable

61

$4.49

$

In Stock, only 2 left!

0

62

Murray 094113E701

Plenum, Cooling Air

$

$

Currently unavailable

63

Murray 15X116MA

Nut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

--

Murray F-010726L

Book, Instruction

$

$

Currently unavailable
