42516x92B - Briggs & Stratton 42" Lawn Tractor (2001) Steering Parts Diagram

42" Lawn Tractor

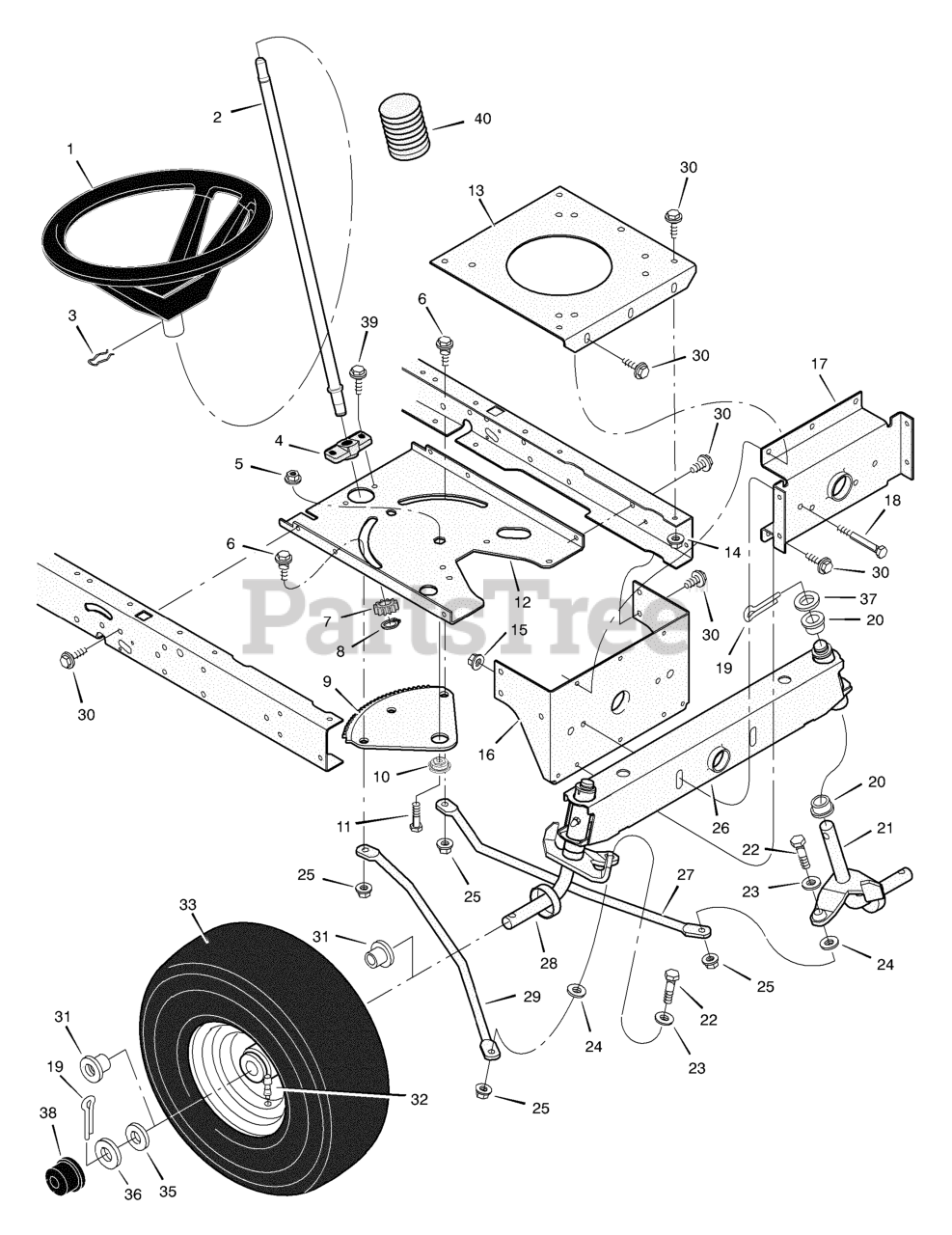

Steering Parts Diagram

  • Title

1

Murray 94134

Wheel, Steering

$1.49

$

Usually ships in 2-12 days

0

2

Murray 94127

Post, Steering

$

$

Currently unavailable

3

Murray 94131

Clip, Retainer

$4.99

$

In Stock, only 1 left!

0

4

Murray 94124

Bearing

$3.49

$

Usually ships in 2-12 days

0

5

Murray 15X111MA

Nut, Flange

$4.49

$

Usually ships in 2-12 days

0

6

Murray 009X57MA

Bolt, Shoulder

$9.99

$

In Stock, Qty 11

0

7

Murray 690183E700

Gear, Pinion

$

$

Currently unavailable

8

Murray 011X25MA

Ring, Snap

$4.49

$

In Stock, Qty 5

0

9

Murray 94121E700

Gear, Sector

$

$

Currently unavailable

10

Murray 94123

Bearing

$

$

Not available

11

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

12

Murray 1001121E700

Plate, Steering

$

$

Currently unavailable

13

Murray 94006E700

Plate, Engine

$

$

Currently unavailable

14

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

15

Murray 15X118MA

Nut, Flange

$4.49

$

Usually ships in 2-12 days

0

16

Murray 94013E700

Bracket, Hanger

$

$

Currently unavailable

17

Murray 94007E700

Axle, Hanger

$

$

Currently unavailable

18

Murray 01X146MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

19

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 11

0

20

Murray 690150MA

Bearing

$8.99

$

In Stock, only 2 left!

0

21

Murray 94576E700

Spindle Assembly, Left

$

$

Currently unavailable

22

Murray 01X111MA

Bolt

$4.49

$

In Stock, only 1 left!

0

23

Murray 17X104MA

Washer
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

24

Murray 017X53 Z

Washer

$

$

Currently unavailable

25

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

26

Murray 690210MA

Axle Assembly
(Superseded to 7601037MA)

$347.99

$

Usually ships in 2-12 days

0

27

Murray 95329E700

Drag Link, Left

$20.99

$

Usually ships in 2-12 days

0

28

Murray 94575E700

Spindle Assembly, Right

$18.99

$

Usually ships in 2-12 days

0

29

Murray 95328E700

Drag Link, Right

$

$

Currently unavailable

30

Murray 26X249MA

Screw

$

$

Not available

31

Murray 91334

Bearing, Wheel
(Superseded to 91334GS)

$14.99

$

Usually ships in 2-12 days

0

32

Murray 24373

Stem, Valve

$

$

Not available

33

Murray 91912

Tire *

$91.99

$

Usually ships in 2-12 days

0

--

Murray 407047MA

Tube

$31.99

$

Usually ships in 2-12 days

0

34

Murray 94579601

Wheel and Tire Assembly

$190.99

$

Usually ships in 2-12 days

0

35

Murray 17X195MA

Washer

$4.99

$

In Stock, only 4 left!

0

36

Murray 17X192MA

Washer

$4.99

$

In Stock, Qty 15

0

37

Murray 17X113MA

Washer

$3.99

$

In Stock, only 2 left!

0

38

Murray 94618

Hub Cap

Note: (Optional)

$5.99

$

In Stock, only 4 left!

0

39

Murray 26X267MA

Screw

$4.99

$

In Stock, Qty 20+

0

40

Murray 92059

Bellows
(Superseded to 92059GS)

Note: (Optional)

$82.99

$

Usually ships in 2-12 days

0
