42516x92B - Briggs & Stratton 42" Lawn Tractor (2001) Mower Housing Parts Diagram

42" Lawn Tractor

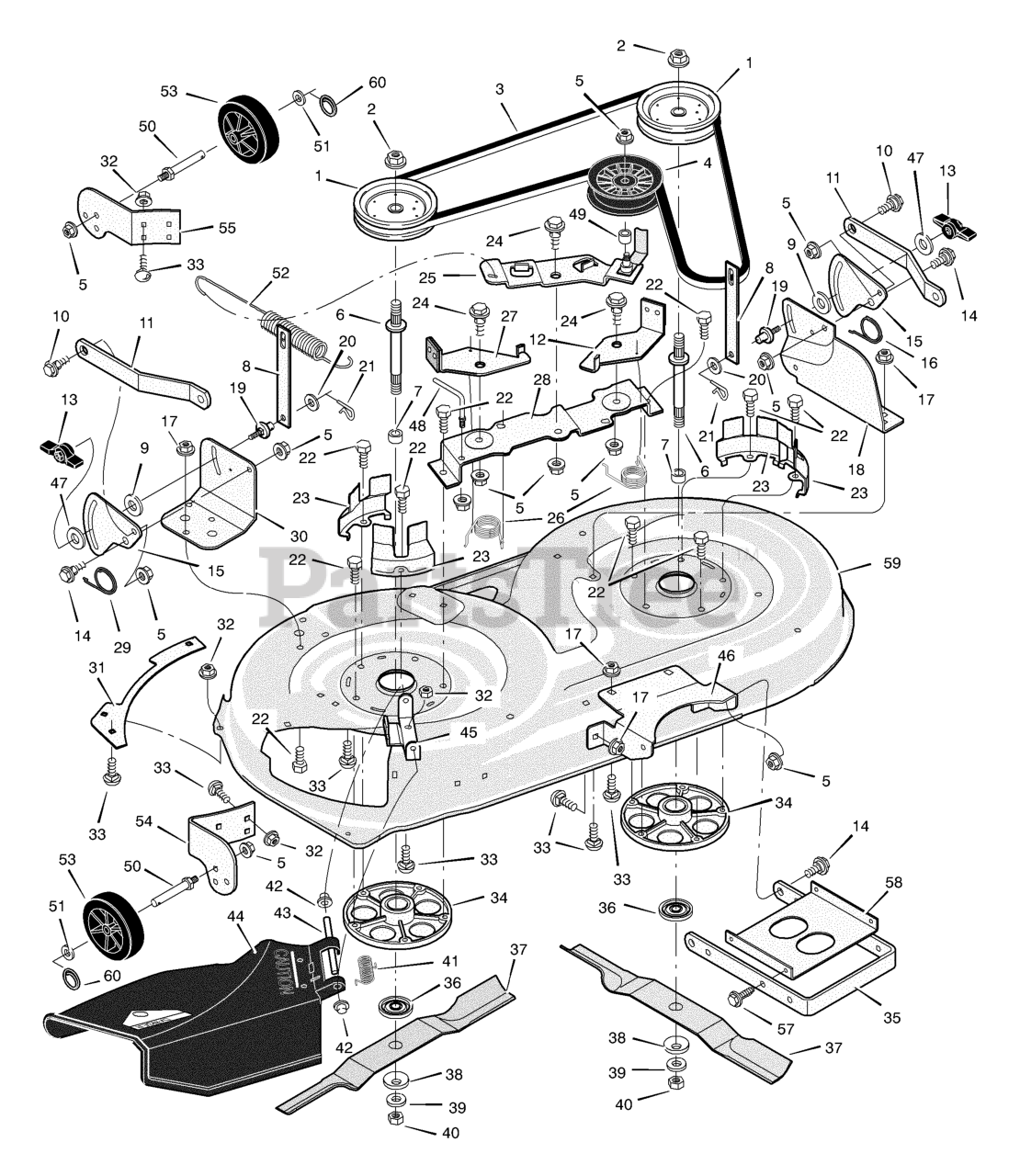

Mower Housing Parts Diagram

  • Title

1

Murray 94199

Pulley, Jackshaft

$31.99

$

In Stock, only 3 left!

0

2

Murray 15X121

Nut, Hex

$9.99

$

In Stock, Qty 7

0

3

Murray 037X88MA

Belt, Mower Drive

$33.99

$

In Stock, Qty 15

0

4

Murray 690387MA

Pulley, Idler

$

$

Not available

5

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

6

Murray 94129

Jackshaft

$21.99

$

In Stock, Qty 11

0

7

Murray 94130

Spacer

$5.99

$

In Stock, Qty 12

0

8

Murray 690212E700

Link, Lift

$

$

Currently unavailable

9

Murray 94137

Pad, Friction
(Superseded to 690326)

$6.49

$

Usually ships in 2-12 days

0

10

Murray 009X52MA

Bolt, Shoulder

$6.49

$

In Stock, only 2 left!

0

11

Murray 94055E700

Bracket, Suspension

$

$

Currently unavailable

12

Murray 94049E700

Pad Assembly, Left Brake

$

$

Currently unavailable

13

Murray 94068

Knob

$6.99

$

In Stock, Qty 20+

0

14

Murray 009X51MA

Bolt, Shoulder

$4.99

$

In Stock, only 1 left!

0

15

Murray 94128E700

Plate, Suspension

$15.99

$

Usually ships in 2-12 days

0

16

Murray 166X43MA

Spring

$4.99

$

In Stock, only 2 left!

0

17

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Murray 94192E700

Bracket, Suspension

$

$

Not available

19

Murray 94194

Pin, Hanger

$

$

Currently unavailable

20

Murray 17X103MA

Washer

$4.99

$

In Stock, only 2 left!

0

21

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

22

Murray 0025X7MA

Bolt
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

23

Murray 94051E700

Cover, Pulley

$

$

Currently unavailable

24

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 6

0

25

Murray 690408E700

Arm, Idler

$

$

Currently unavailable

26

Murray 166X41MA

Spring

$4.99

$

In Stock, only 2 left!

0

27

Murray 94047E700

Pad Assembly, Right Brake

$

$

Currently unavailable

28

Murray 94193E700

Bracket, Brake

$

$

Currently unavailable

29

Murray 166X42MA

Spring

$4.99

$

In Stock, Qty 8

0

30

Murray 94191E700

Bracket, Suspension

$

$

Not available

31

Murray 92426E700

Plate

$3.99

$

Usually ships in 2-12 days

0

32

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

33

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

34

Murray 92574

Mandrell Housing

$

$

Not available

35

Murray 94058E700

Bracket, Suspension

$

$

Currently unavailable

36

Murray 1001035

Adapter, Blade

$9.99

$

In Stock, only 1 left!

0

37

Murray 95100E701

Blade

$19.99

$

In Stock, Qty 20+

0

38

Murray 17X166MA

Washer

$13.99

$

In Stock, Qty 18

0

39

Murray 17X165MA

Washer

$16.99

$

In Stock, only 4 left!

0

40

Murray 15X100MA

Nut

$3.99

$

In Stock, Qty 10

0

41

Murray 0166X4MA

Spring

$6.49

$

In Stock, Qty 9

0

42

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

43

Murray 94957 Z

Rod, Deflector

$

$

Currently unavailable

44

Murray 94707SE

Deflector Assembly

$

$

Currently unavailable

45

Murray 94956E700

Bracket, Deflector Hinge

$

$

Currently unavailable

46

Murray 94686E700

Bracket, Front Hanger

$8.49

$

Usually ships in 2-12 days

0

47

Murray 017X45MA

Washer

$

$

Not available

48

Murray 94781

Guide, Belt

$60.99

$

Usually ships in 2-12 days

0

49

Murray 690369MA

Spacer

$

$

Not available

50

Murray 94025

Bolt, Axle

$2.99

$

Usually ships in 2-12 days

0

51

Murray 017X91MA

Washer

$5.49

$

In Stock, Qty 11

0

52

Murray 165X119MA

Spring, Extension

$13.99

$

Usually ships in 2-12 days

0

53

Murray 92683

Wheel, Gage
(Superseded to 092683MA)

$15.99

$

In Stock, only 3 left!

0

54

Murray 92422E700

Bracket, Right Wheel

$

$

Currently unavailable

55

Murray 92423E700

Bracket, Left Wheel

$

$

Currently unavailable

57

Murray 26X249MA

Screw

$

$

Not available

58

Murray 94604E700

Stiffener

$

$

Currently unavailable

59

Murray 94814E700

Housing, Blade

Note: (Includes Ref. No. 17, 18, 30, 31, 32, 33, 45, 46, 53, 54, 55, and 56)

$

$
