42504x99A - Briggs & Stratton 42" Lawn Tractor (1998) (AAFES) Motion Drive Parts Diagram

42" Lawn Tractor

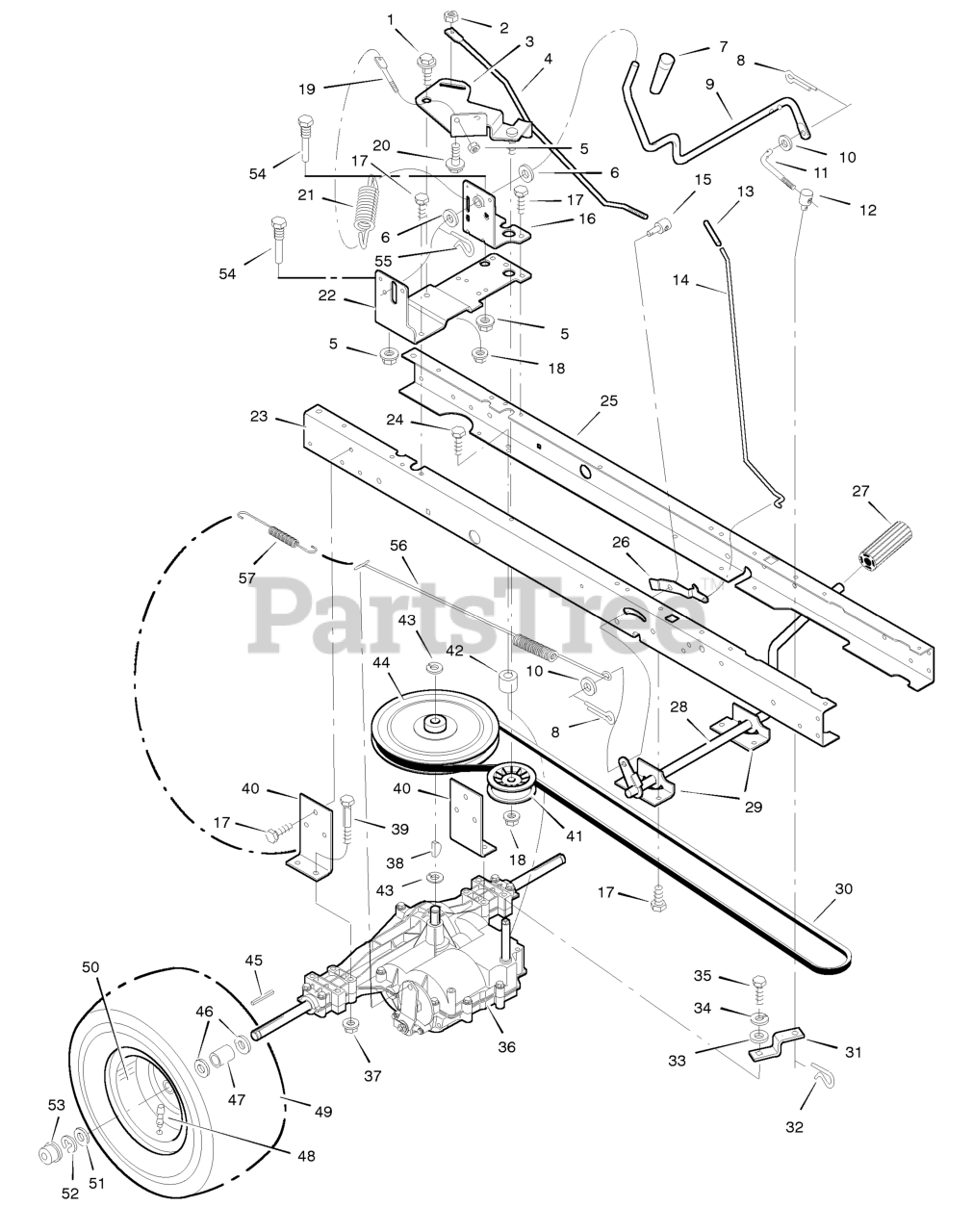

Motion Drive Parts Diagram

  • Title

1

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 6

0

2

Murray 015X89MA

Nut, Hex

$4.49

$

Usually ships in 2-12 days

0

3

Murray 094040 Z

Arm, Idler

$

$

Currently unavailable

4

Murray 094041 Z

Rod, Clutch

$

$

Currently unavailable

5

Murray 015X79MA

Nut
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Murray 17X102MA

Washer
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

7

Murray 092697MA

Grip
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

8

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Murray 094043 Z

Lever, Shift

$

$

Currently unavailable

10

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

11

Murray 094044ZMA

Link, Shift

$6.99

$

Usually ships in 2-12 days

0

12

Murray 021920ZMA

Nut, Adjuster

$17.99

$

Usually ships in 2-12 days

0

13

Murray 091079MA

Grip

$3.49

$

Usually ships in 2-12 days

0

14

Murray 095005 Z

Rod, Parking Brake

$

$

Currently unavailable

15

Murray 094815ZMA

Nut, Adjuster

$21.99

$

Usually ships in 2-12 days

0

16

Murray 094034E700

Bracket, Shift

$

$

Not available

17

Murray 26X249MA

Screw

$

$

Not available

18

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Murray 094042ZMA

Mount, Stud Spring

$4.49

$

Usually ships in 2-12 days

0

20

Murray 009X54MA

Bolt, Shoulder

$5.49

$

In Stock, only 1 left!

0

21

Murray 165X116MA

Spring, Extension

$8.49

$

Usually ships in 2-12 days

0

22

Murray 094033E700

Bracket, Shifter

$49.99

$

Usually ships in 2-12 days

0

23

Murray 94000E700

Frame, Right

$

$

Currently unavailable

24

Murray 025X12

Screw

$5.99

$

Usually ships in 2-12 days

0

25

Murray 94001E700

Frame, Left

$

$

Currently unavailable

26

Murray 094045 Z

Latch, Parking Brake

$

$

Currently unavailable

27

Murray 021544MA

Pedal
(Superseded to 1727261SM)

$9.99

$

In Stock, Qty 5

0

28

Murray 094038E701MA

Lever, Brake/Clutch
(Superseded to 7400256ZMA)

$72.99

$

Usually ships in 2-12 days

0

29

Murray 094035E700

Bracket, Pedal

$

$

Currently unavailable

30

Murray 037X87MA

Belt, Motion Drive

$28.99

$

In Stock, Qty 16

0

31

Murray 094031ZMA

Yoke, Shift

$15.99

$

Usually ships in 2-12 days

0

32

Murray 0031X6MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

33

Murray 17X148MA

Washer

$3.99

$

Usually ships in 2-12 days

0

34

Murray 018X32MA

Washer

$3.49

$

Usually ships in 2-12 days

0

35

Murray 01X145MA

Bolt

$4.49

$

Usually ships in 2-12 days

0

36

Transaxle **

$

$

Not available

37

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

38

Murray 020697MA

Key, Woodruff

$3.99

$

In Stock, only 1 left!

0

39

Murray 01X155MA

Bolt
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

40

Murray 094008E701MA

Bracket, Transaxle

$34.99

$

Usually ships in 2-12 days

0

41

Murray 091179MA

Pulley

$17.99

$

In Stock, Qty 16

0

42

Murray 094132MA

Spacer

$16.99

$

In Stock, only 1 left!

0

43

Murray 0011X7MA

E-Ring

$3.99

$

In Stock, Qty 5

0

44

Murray 095094MA

Pulley, Drive

$55.99

$

In Stock, only 1 left!

0

45

Murray 021553MA

Key, Square

$4.99

$

In Stock, only 2 left!

0

46

Murray 17X160MA

Washer

$4.99

$

In Stock, Qty 20+

0

47

Murray 87X105 Z

Spacer, Transaxle

$

$

Currently unavailable

48

Murray 024373MA

Stem, Valve

$

$

Not available

49

Murray 092374MA

Tire *

$179.99

$

Usually ships in 2-12 days

0

--

Murray 407049MA

Tube

$68.99

$

Usually ships in 2-12 days

0

50

Murray 092290601

Wheel & Tire Assembly

$262.99

$

Usually ships in 2-12 days

0

51

Murray 17X195MA

Washer

$4.99

$

In Stock, only 4 left!

0

52

Murray 0011X3MA

E-Ring

$5.49

$

In Stock, Qty 20+

0

53

Murray 094618MA

Hub Cap

$5.99

$

In Stock, only 4 left!

0

54

Murray 093349MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

55

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

56

Murray 165X115MA

Spring, Extension

$21.99

$

Usually ships in 2-12 days

0

57

Murray 165X92MA

Spring, Extension

$5.49

$

In Stock, only 2 left!

0
