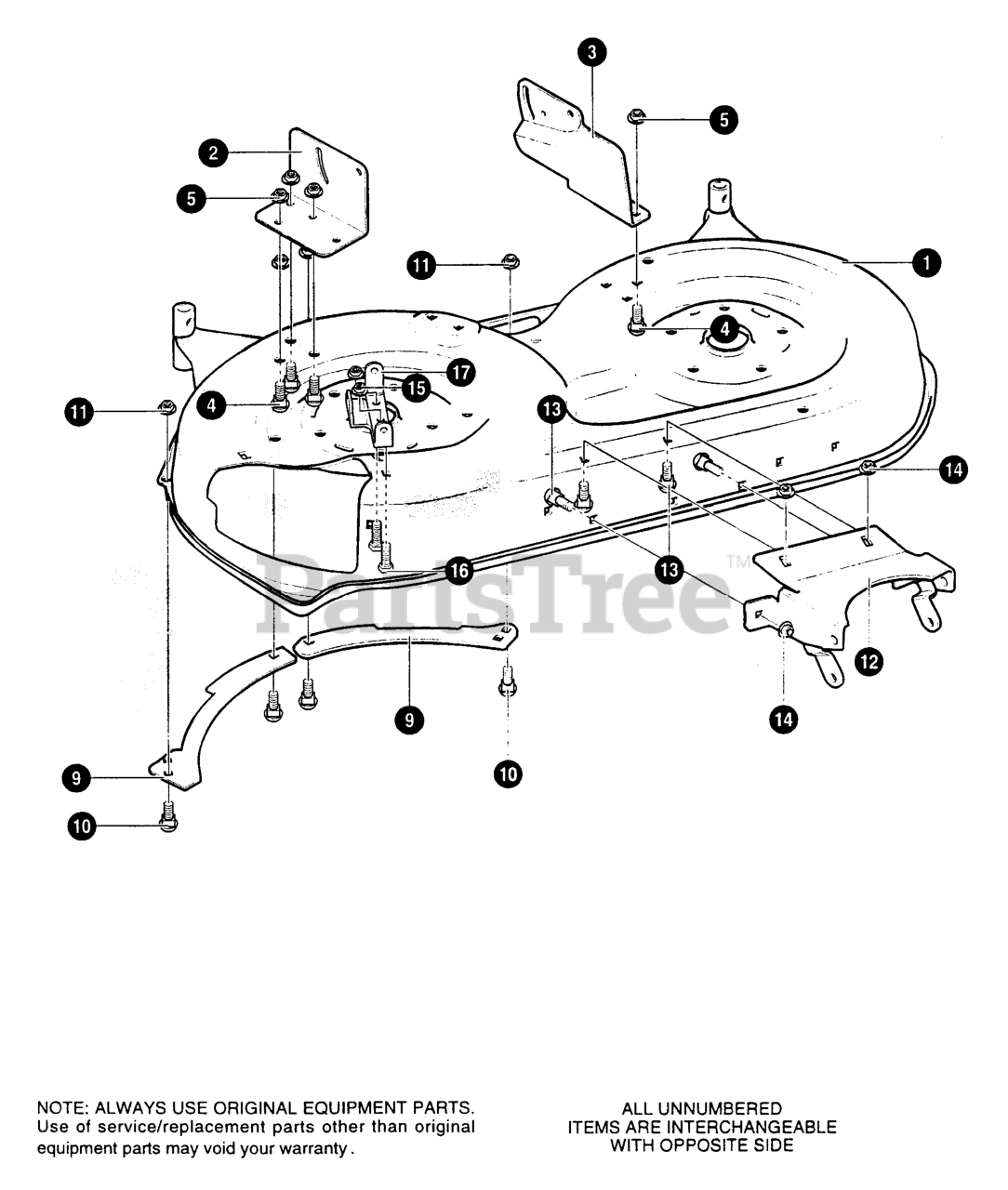

42502x8C - Scotts 42" Lawn Tractor (2000) Pre-painted Deck Assembly Parts Diagram

42" Lawn Tractor

Pre-painted Deck Assembly Parts Diagram

  • Title

1

Murray 710144

ASSY, WELD BLD HSING 42"

$186.99

$

Usually ships in 2-12 days

0

2

Murray 94191

BRACKET, DECK RH

$

$

Currently unavailable

3

Murray 94192

BRACKET, DECK LH

$4.99

$

Usually ships in 2-12 days

0

4

Murray 57072

BOLT, 5/16-18X.63 CARR.

$

$

Not available

5

Murray 710204

NUT, 5/16-18 HEXWDFLLK WHIZ

$5.49

$

Usually ships in 2-12 days

0

9

Murray 92426

TOEGUARD, FLANGE
(Superseded to 092426E701MA)

$10.99

$

In Stock, only 1 left!

0

10

Murray 57072

BOLT, 5/16-18X.63 CARR.

$

$

Not available

11

Murray 710205

NUT, 5/16-18 WDFLLK (15X88)

$14.99

$

In Stock, only 2 left!

0

12

Murray 710143

ASSY, FRONT BRACKET ROLLER

$

$

Currently unavailable

13

Murray 57072

BOLT, 5/16-18X.63 CARR.

$

$

Not available

14

Murray 710204

NUT, 5/16-18 HEXWDFLLK WHIZ

$5.49

$

Usually ships in 2-12 days

0

15

Murray 710205

NUT, 5/16-18 WDFLLK (15X88)

$14.99

$

In Stock, only 2 left!

0

16

Murray 57072

BOLT, 5/16-18X.63 CARR.

$

$

Not available

17

Murray 94956

BRACKET, CHUTE ATTACHMENT
(Superseded to 094956E701MA)

$22.99

$

Usually ships in 2-12 days

0
