42502x8C - Scotts 42" Lawn Tractor (2000) Front Chassis Assembly Parts Diagram

42" Lawn Tractor

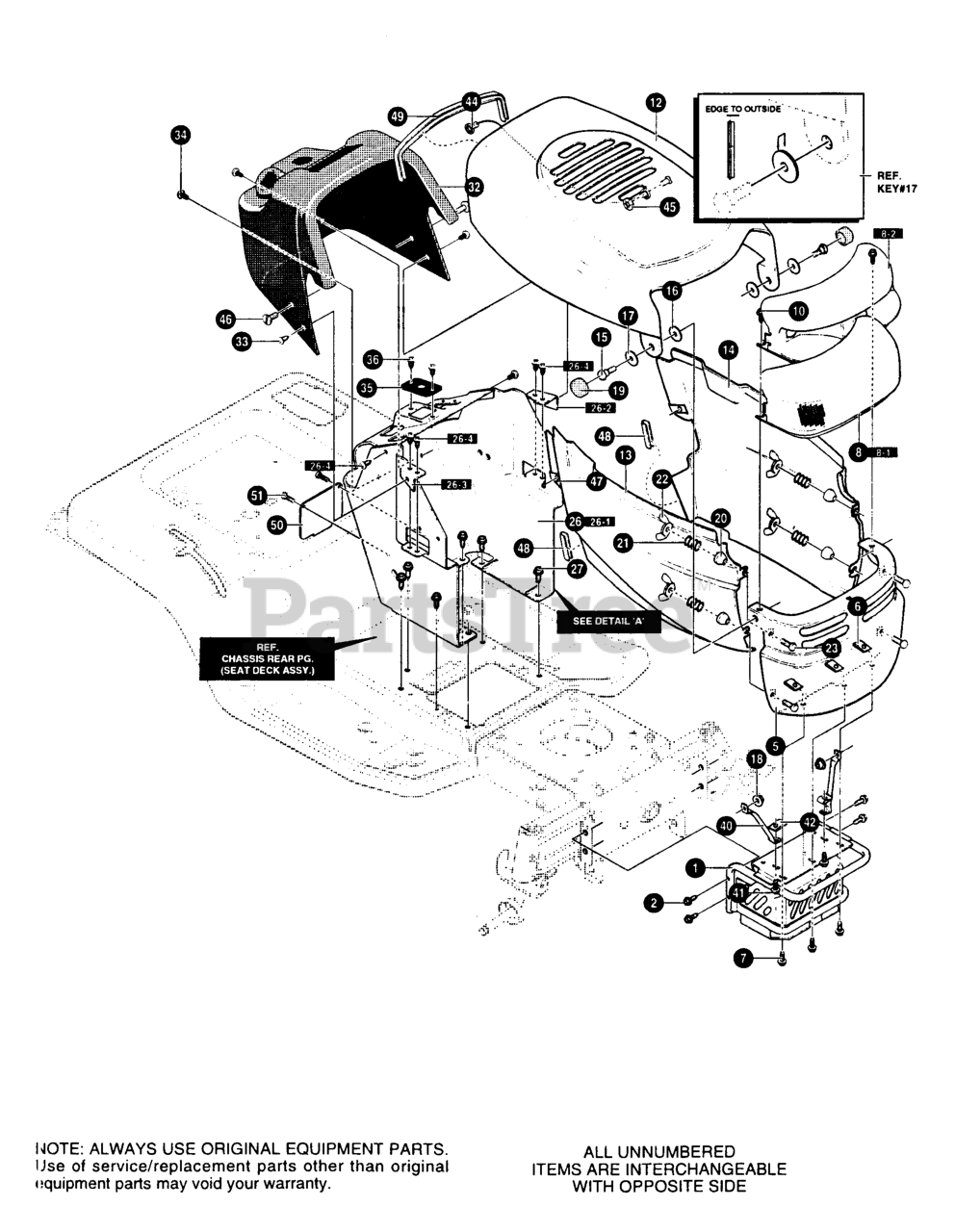

Front Chassis Assembly Parts Diagram

  • Title

1

Murray 94529-821

WELD. ASM. COMMON BUMP/GRIL MNT

$139.99

$

Usually ships in 2-12 days

0

2

Murray 711653

SCREW 5/16-18X1.50 HHWATAP

$1.99

$

Usually ships in 2-12 days

0

5

Murray 94455-898

GRILLE

$25.99

$

Usually ships in 2-12 days

0

6

Murray 710313

NUT, "J" TINNERMAN #C702-14202

$1.99

$

Usually ships in 2-12 days

0

7

Murray 711642MA

SCREW 1/4-20X.63 HHWATAPSERBZ
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

8

Murray 95234

ASM. LENS & REFLECTOR
(Superseded to 95234GS)

$45.99

$

In Stock, only 1 left!

0

8-1

Murray 94459

LENS

$4.99

$

Usually ships in 2-12 days

0

8-2

Murray 94460

REFLECTOR

$9.49

$

Usually ships in 2-12 days

0

10

Murray 710197

SCREW, 1/4-14X.50 PANCR

$12.99

$

Usually ships in 2-12 days

0

12

Murray 690052-898

WELD ASSEMBLY HOOD

$

$

Not available

13

Murray 94458-898

PANEL, SIDE RH

$37.99

$

Usually ships in 2-12 days

0

14

Murray 94457-898

PANEL, SIDE LH

$37.99

$

Usually ships in 2-12 days

0

15

Murray 711625

BOLT, .497X.215HHSH 3/8-16

$

$

Currently unavailable

16

Murray 710067

WASHER, PLASTIC

$4.49

$

Usually ships in 2-12 days

0

17

Murray 094472

PIVOT BASE

$3.99

$

Usually ships in 2-12 days

0

18

Murray 711622

NUT, 3/8-16 HWDFLLK MACK 15X84

$

$

Currently unavailable

19

Murray 94471MA

CAP, PIVOT

$3.99

$

Usually ships in 2-12 days

0

20

Murray 094474

QUICK RELEASE-CAM

$31.99

$

Usually ships in 2-12 days

0

21

Murray 710314

SPRING, COMP.500DX.5LG
(Superseded to 94628)

$11.99

$

Usually ships in 2-12 days

0

22

Murray 325232MA

NUT, WING 1/4-20 NYLON

$4.49

$

Usually ships in 2-12 days

0

23

Murray 313674MA

SCREW, 1/4-20X1.25

$3.99

$

Usually ships in 2-12 days

0

26

Murray 95291-898

CONSOLE ASSY

$

$

Currently unavailable

26-1

Murray 095173

CONSOLE DASH MAN PTO

$319.99

$

Usually ships in 2-12 days

0

26-2

Murray 094465

BRACKET, HOME DEPOT LH

$4.49

$

Usually ships in 2-12 days

0

26-3

Murray 094464

BRACKET, HOME DEPOT RH

$4.49

$

Usually ships in 2-12 days

0

26-4

Murray 710196

SCREW, 10-24X.500 SEGI

$1.49

$

Usually ships in 2-12 days

0

27

Murray 711606MA

SCREW 5/16-18HHWATAP

$7.99

$

In Stock, only 2 left!

0

32

Murray 690009

DASH

$

$

Currently unavailable

33

Murray 711629

SCREW 10-24X.500TRSEGI

$

$

Not available

34

Murray 711629

SCREW 10-24X.500TRSEGI

$

$

Not available

35

Murray 094075

BRACKET, STEERING

$

$

Currently unavailable

36

Murray 710197

SCREW, 1/4-14X.50 PANCR

$12.99

$

Usually ships in 2-12 days

0

40

Murray 94519-898

STRUT, GRILLE

$3.49

$

Usually ships in 2-12 days

0

41

Murray 711642MA

SCREW 1/4-20X.63 HHWATAP
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

42

Murray 710979

SPEED NUT

$9.99

$

Usually ships in 2-12 days

0

44

Murray 643129

LANYARD, HOOD

$

$

Not available

45

Murray 711677

PUSHNUT

$8.49

$

Usually ships in 2-12 days

0

46

Murray 711674MA

SCREW, 1/4-20X.63 PHPNHD

$3.49

$

Usually ships in 2-12 days

0

47

Murray 710313

NUT, "J" TINNERMAN #C702-14202

$1.99

$

Usually ships in 2-12 days

0

48

Murray 779022

TRIM, PIECE PLASTIC

Note: (2 required)

$16.99

$

Usually ships in 2-12 days

0

49

Murray 779024

TRIM, PIECE PLASTIC

$

$

Not available

50

Murray 93007-898

ACCESS PANEL W/O SLOT

$

$

Currently unavailable

51

Murray 711629

SCREW 10-24X.500TRSEGI

$

$

Not available

--

Murray 713013

OWNER'S MANUAL

$

$

Currently unavailable
