42502x8C - Scotts 42" Lawn Tractor (2000) Electrical System Parts Diagram

42" Lawn Tractor

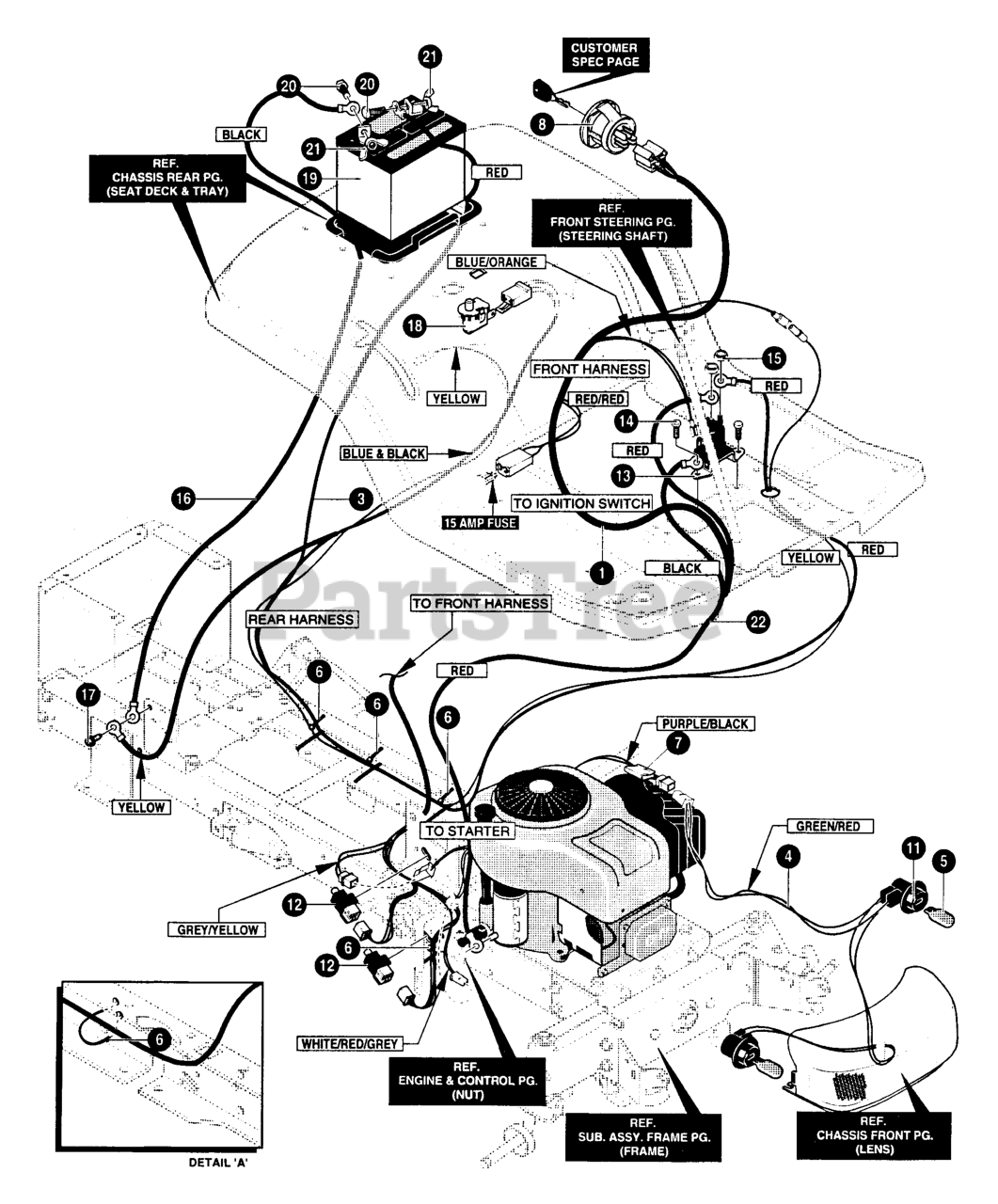

Electrical System Parts Diagram

  • Title

1

Murray 95201

HARNESS, 17HP INTEK

$37.99

$

Usually ships in 2-12 days

0

3

Murray 340530

WIRE HARNESS, REAR

$

$

Currently unavailable

4

Murray 340513

WIRE HARNESS, HEADLIGHTS

$

$

Currently unavailable

5

Murray 090084MA

BULB, HEADLIGHT
(Superseded to 1677371SM)

$30.99

$

In Stock, only 1 left!

0

6

Murray 57444

TIE, CABLE BLACK NYLON 5.62L

$

$

Not available

7

Murray 055939MA

WIRE CLIP ADHESIVE

$4.99

$

Usually ships in 2-12 days

0

8

Murray 094762

SWITCH, IGNITION DELTA 7 TERM

$24.99

$

Usually ships in 2-12 days

0

9

Murray 327350MA

KEY,IGNITION
(Superseded to 1714054SM)

$7.49

$

In Stock, Qty 20+

0

11

Murray 092372

SOCKET, LAMP

$7.99

$

In Stock, Qty 5

0

12

Murray 094136MA

SWITCH LIMIT DELTA

$12.99

$

Usually ships in 2-12 days

0

13

Murray 094613

SOLENOID

$27.99

$

In Stock, only 3 left!

0

14

Murray 711619

SCREW,HHWATAP 1/4X.50

$1.99

$

Usually ships in 2-12 days

0

15

Murray 711632

NUT, 1/4-20 HEXNYL 15X116

$

$

Currently unavailable

16

Murray 710228

WIRE, GROUND (24X32)

$47.99

$

In Stock, only 2 left!

0

17

Murray 711619

SCREW, HHWATAP 1/4 X.50

$1.99

$

Usually ships in 2-12 days

0

18

Murray 094159MA

SWITCH, SEAT
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

19

Murray 092693

BATTERY 6 PLATE

$

$

Currently unavailable

20

Murray 711680

BOLT, 1 /4-20X.63CAR
(Superseded to 711682)

$7.49

$

In Stock, only 1 left!

0

21

Murray 711636

NUT, WING 1/4-20 NC (14X79)

$

$

Not available

22

Murray 711579

WIRE, LEAD SOLENOID TO STARTER 1

$

$

Currently unavailable

--

Murray 302031MA

FUSE, 15 AMP

$6.49

$

Usually ships in 2-12 days

0
