42502x8C - Scotts 42" Lawn Tractor (2000) Deck Assembly (part 1) Parts Diagram

42" Lawn Tractor

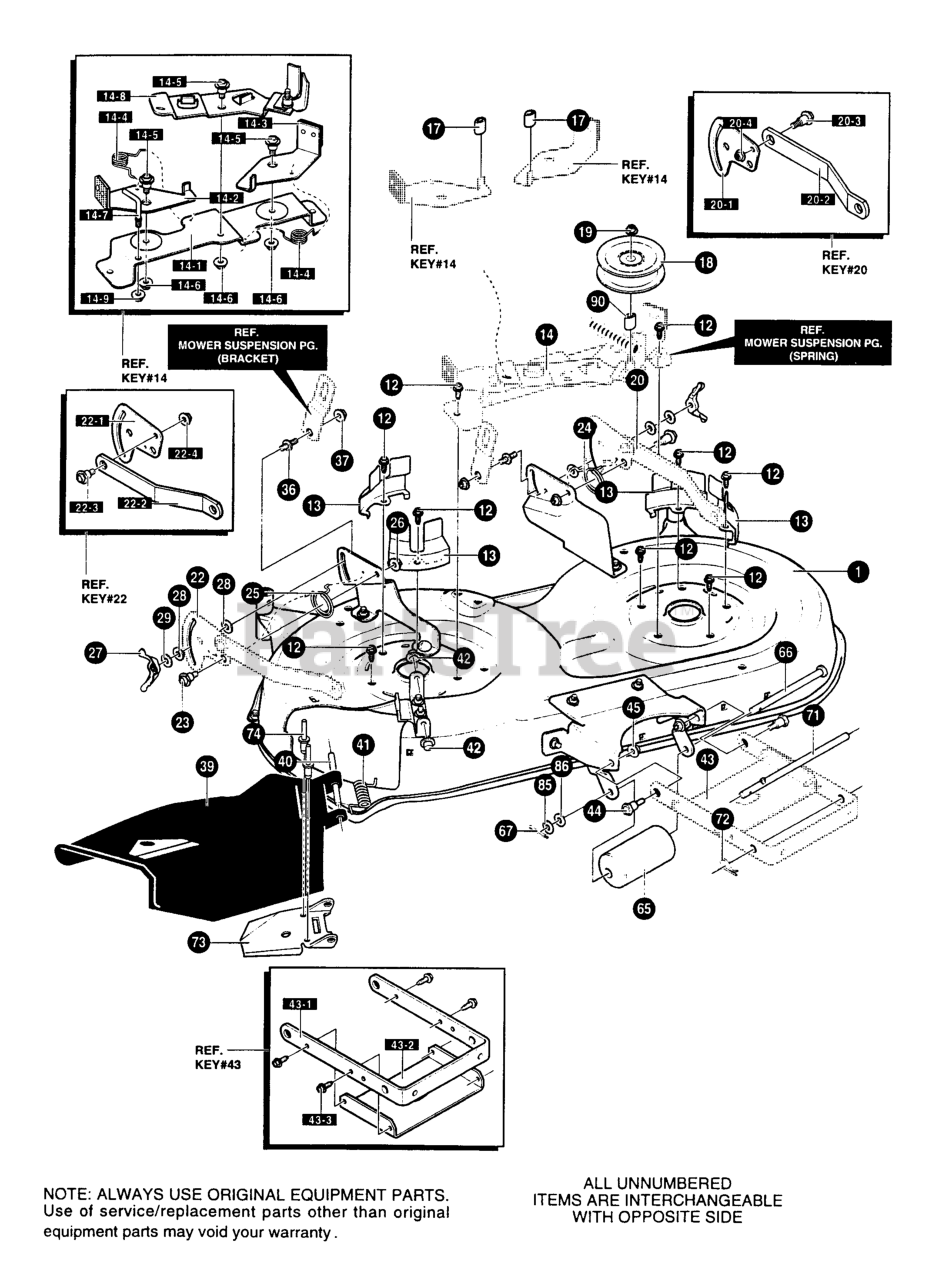

Deck Assembly (part 1) Parts Diagram

  • Title
1

Murray 710774-821

SUB ASSY 42" MOWER DECK DELUXE

$

$

Currently unavailable

12

Murray 710199

SCREW, 3/8-16 x 1.25 WAHHSPTAPP

$66.99

$

Usually ships in 2-12 days

0

13

Murray 94051-821

COVER, SEGMENT BELT GUIDE

$

$

Currently unavailable

14

Murray 690138-821

ASM., BRACKET SUP W/BRAKES 42"

$

$

Currently unavailable

14-1

Murray 94193

BRACKET, BRAKE MT

$

$

Currently unavailable

14-2

Murray 94047

ASSY, BRAKE RH
(Superseded to 691633)

$4.99

$

In Stock, only 1 left!

0

14-3

Murray 94049

ASSY, BRAKE LH

$

$

Currently unavailable

14-4

Murray 710227

TORSION SPRING (166X41)

$33.99

$

Usually ships in 2-12 days

0

14-5

Murray 710098

BOLT.50X.75 HHSH 3/8-16 (9X39)
(Superseded to 710634)

$12.99

$

Usually ships in 2-12 days

0

14-6

Murray 710140

NUT, 3/8-16 HWDFLLK MACK (15X84)

$10.99

$

Usually ships in 2-12 days

0

14-7

Murray 094781MA

SCREW GUIDE

$60.99

$

Usually ships in 2-12 days

0

14-8

Murray 690408

IDLER ARM ASSY

$6.49

$

Usually ships in 2-12 days

0

14-9

Murray 710205

NUT, 5/16-18 WDFLLK (15X88)

$14.99

$

In Stock, only 1 left!

0

17

Murray 779090

TUBE, BRAKE TAB PAD

Note: (2 REQUIRED)

$

$

Currently unavailable

18

Murray 690451

PULLEY, IDLER

$2.99

$

Usually ships in 2-12 days

0

19

Murray 711920MA

NUT,3/8-16HWDFLLK MACK

$4.49

$

Usually ships in 2-12 days

0

20

Murray 341594-821

ASM.PLATE,REAR SUS.BRKT.LH

$

$

Currently unavailable

20-1

Murray 94128

PLATE - SUSPENSION
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

20-2

Murray 94055

SUSPENSION BRKT REAR

$

$

Currently unavailable

20-3

Murray 710095

BOLT, SHOULDER 3/8-16 (9X52)

$4.99

$

Usually ships in 2-12 days

0

20-4

Murray 710140

NUT,3/8-16HWDFLLK MACK 15X84 Z

$10.99

$

Usually ships in 2-12 days

0

22

Murray 341593-821

ASM.PLATE,REAR SUS.BRKT.RH

$8.49

$

Usually ships in 2-12 days

0

22-1

Murray 94128

PLATE - SUSPENSION
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

22-2

Murray 94055

SUSPENSION BRKT REAR

$

$

Currently unavailable

22-3

Murray 710095

BOLT, SHOULDER 3/8-16 (9X52)

$4.99

$

Usually ships in 2-12 days

0

22-4

Murray 710140

NUT,3/8-16HWDFLLK MACK 15X84 Z

$10.99

$

Usually ships in 2-12 days

0

23

Murray 711611

BOLT, SHOULDER.375 (9X51)

$1.49

$

Usually ships in 2-12 days

0

24

Murray 710113

SPRING,TORSION.68LG LH 166X43

$

$

Not available

25

Murray 710112

SPRING,TORSION.68LG RH 166X42

$11.99

$

In Stock, only 2 left!

0

26

Murray 711622

NUT,3/8-16HWDFLLK MACK 15X84 Z

$

$

Currently unavailable

27

Murray 711600

WING KNOB 5/16-18

$

$

Currently unavailable

28

Murray 094137MA

PAD, FRICTION

$6.99

$

In Stock, Qty 8

0

29

Murray 711628MA

WASHER, (17X45)
(Superseded to 017X45MA)

$

$

Not available

36

Murray 711595

PIN, HANGER

$

$

Not available

37

Murray 711622

NUT, 3/8-16 HWDFLLK MACK

$

$

Currently unavailable

39

Murray 094687MA

CHUTE DEFLECTOR

$78.99

$

Usually ships in 2-12 days

0

40

Murray 95303MA

ROD, CHUTE DEFLECTOR
(Superseded to 094957ZMA)

$10.99

$

In Stock, only 1 left!

0

41

Murray 710194

SPRING, TORSION .44X2.06X

$

$

Currently unavailable

42

Murray 711627MA

NUT, PUSH CAP.375 (28X23) Z

$

$

Not available

43

Murray 690058-821

ASM.,BRACKET & STIFFNER

$18.99

$

Usually ships in 2-12 days

0

43-1

Murray 94058

BRACKET, FRONT SUSPENSION

$3.99

$

Usually ships in 2-12 days

0

43-2

Murray 95057

STIFFNER

$

$

Currently unavailable

43-3

Murray 710079

SCREW, 5/16-18 x 0.75

$

$

Not available

44

Murray 711611

BOLT, SHOULDER.375 (9X51)

$1.49

$

Usually ships in 2-12 days

0

45

Murray 711622

NUT,3/8-16HWDFLLK MACK 15X84 Z

$

$

Currently unavailable

65

Murray 310071MA

ROLLER 6 X.515 I.D.X 2.5 O.D.

$91.99

$

Usually ships in 2-12 days

0

66

Murray 95275MA

ROD, SUPPORT ZINC

$10.99

$

Usually ships in 2-12 days

0

67

Murray 711667

PIN, COTTER.125 DIAX1.00LG Z

$1.49

$

Usually ships in 2-12 days

0

71

Murray 95295

ZINC ROD HANGER

$

$

Currently unavailable

72

Murray 711676

HAIR PIN (31X4)

$

$

Currently unavailable

73

Murray 94686-821

SUPPORT, DEFLECTOR

$

$

Currently unavailable

74

Murray 711624MA

RIVET - SEMI .244X.250 (7X125)

$3.99

$

Usually ships in 2-12 days

0

85

Murray 711617

FLATWASHER

$5.49

$

In Stock, Qty 11

0

86

Murray 711739

WAVE WASHER.501D

$18.99

$

Usually ships in 2-12 days

0

90

Murray 690369MA

SPACER 1/2 TO 17MM

$

$

Not available
