425018x00A - Murray 42" Lawn Tractor (2007) Motion Drive Parts Diagram

42" Lawn Tractor

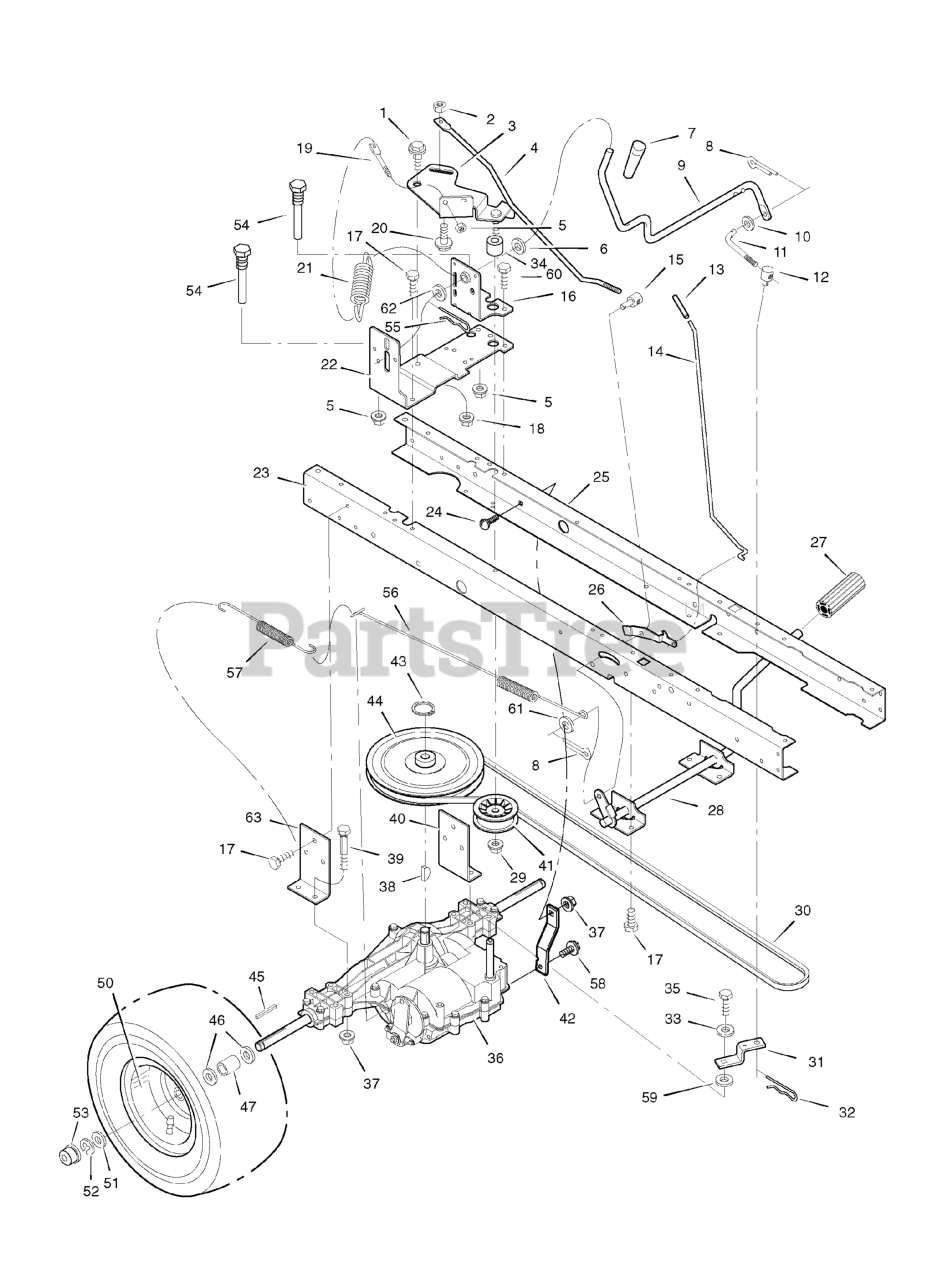

Motion Drive Parts Diagram

  • Title
1

Murray 009X39MA

BOLT, Shoulder

$6.49

$

In Stock, Qty 5

0

2

Murray 015X89MA

NUT, Hex

$4.49

$

Usually ships in 2-12 days

0

3

Murray 690173ZMA

ARM, Idler

$28.99

$

Usually ships in 2-12 days

0

4

Murray 094041ZMA

ROD, Clutch

$33.99

$

Usually ships in 2-12 days

0

5

Murray 015X79MA

NUT
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

$

$

Not available

7

Murray 092697MA

GRIP
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

8

Murray 030X20MA

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Murray 094043ZMA

LEVER, Shift

$47.99

$

In Stock, only 1 left!

0

10

$

$

Currently unavailable

11

Murray 094044ZMA

LINK, Shift

$6.99

$

Usually ships in 2-12 days

0

12

Murray 021920ZMA

NUT, Adjuster

$17.99

$

Usually ships in 2-12 days

0

13

$3.49

$

Usually ships in 2-12 days

0

14

Murray 1001271ZMA

ROD, Parking Brake

$4.49

$

Usually ships in 2-12 days

0

15

Murray 094815ZMA

NUT, Adjuster

$21.99

$

Usually ships in 2-12 days

0

16

Murray 1001303ZMA

BRACKET, Shift Pivot

$20.99

$

Usually ships in 2-12 days

0

17

$

$

Not available

18

Murray 015X84MA

NUT
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Murray 094042ZMA

MOUNT, Stud Spring

$4.49

$

Usually ships in 2-12 days

0

20

Murray 009X54MA

BOLT, Shoulder

$5.49

$

In Stock, only 1 left!

0

21

Murray 165X116MA

SPRING, Extension

$8.49

$

Usually ships in 2-12 days

0

22

Murray 1001978E701MA

BRACKET, Right Shifter

$23.99

$

Usually ships in 2-12 days

0

23

Murray 1001928E701MA

FRAME, Right

$104.99

$

Usually ships in 2-12 days

0

24

Murray 002X53MA

BOLT, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

25

Murray 1001927E701MA

FRAME, Left
(Superseded to 1001269E701MA)

$103.99

$

Usually ships in 2-12 days

0

26

Murray 094045ZMA

LATCH, Parking Brake

$45.99

$

Usually ships in 2-12 days

0

27

Murray 021544MA

PEDAL
(Superseded to 1727261SM)

$9.99

$

In Stock, only 4 left!

0

28

Murray 094038E701MA

LEVER, Brake/Clutch
(Superseded to 7400256ZMA)

$72.99

$

Usually ships in 2-12 days

0

29

Murray 015X98MA

NUT
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

30

Murray 037X87MA

BELT, Motion Drive

$28.99

$

In Stock, Qty 16

0

31

Murray 094031ZMA

YOKE, Shift

$15.99

$

Usually ships in 2-12 days

0

32

Murray 0031X6MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

33

$3.99

$

Usually ships in 2-12 days

0

34

$

$

Not available

35

$3.99

$

In Stock, only 1 left!

0

36

Transaxle, Peerless **

$

$

Not available

37

Murray 015X88MA

NUT
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

38

Murray 020697MA

KEY, Woodruff

$3.99

$

Usually ships in 2-12 days

0

39

Murray 01X155MA

BOLT
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

40

Murray 094008E701MA

BRACKET, Transaxle

$34.99

$

Usually ships in 2-12 days

0

41

$19.99

$

In Stock, Qty 13

0

42

Murray 094433E701MA

BRACKET, Torque Strap, LH
(Superseded to 7300845BMYP)

$13.99

$

Usually ships in 2-12 days

0

43

$3.99

$

In Stock, only 4 left!

0

44

Murray 1002092MA

PULLEY, Drive

$

$

Not available

45

Murray 021553MA

KEY, Square

$4.99

$

In Stock, only 2 left!

0

46

$4.99

$

In Stock, Qty 20+

0

47

Murray 1001043ZMA

SPACER, Wheel

$5.49

$

Usually ships in 2-12 days

0

50

Murray 092300601MA

WHEEL & TIRE ASSEMBLY, 20 x 10
(Superseded to 7101800YP)

$222.99

$

Usually ships in 2-12 days

0

51

$4.99

$

In Stock, Qty 5

0

52

$5.49

$

In Stock, Qty 17

0

53

Murray 094618MA

HUB CAP

$5.99

$

In Stock, only 4 left!

0

54

Murray 093349MA

GUIDE, Belt

$4.49

$

Usually ships in 2-12 days

0

55

Murray 0031X4MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

56

Murray 165X115MA

SPRING, Extension

$21.99

$

Usually ships in 2-12 days

0

57

Murray 165X92MA

SPRING, Extension

$5.49

$

In Stock, only 2 left!

0

58

$6.99

$

In Stock, Qty 5

0

59

$3.99

$

Usually ships in 2-12 days

0

60

$4.99

$

In Stock, Qty 20+

0

61

Murray 17X169MA

WASHER
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0
