425018x00A - Murray 42" Lawn Tractor (2007) Electrical System Parts Diagram

42" Lawn Tractor

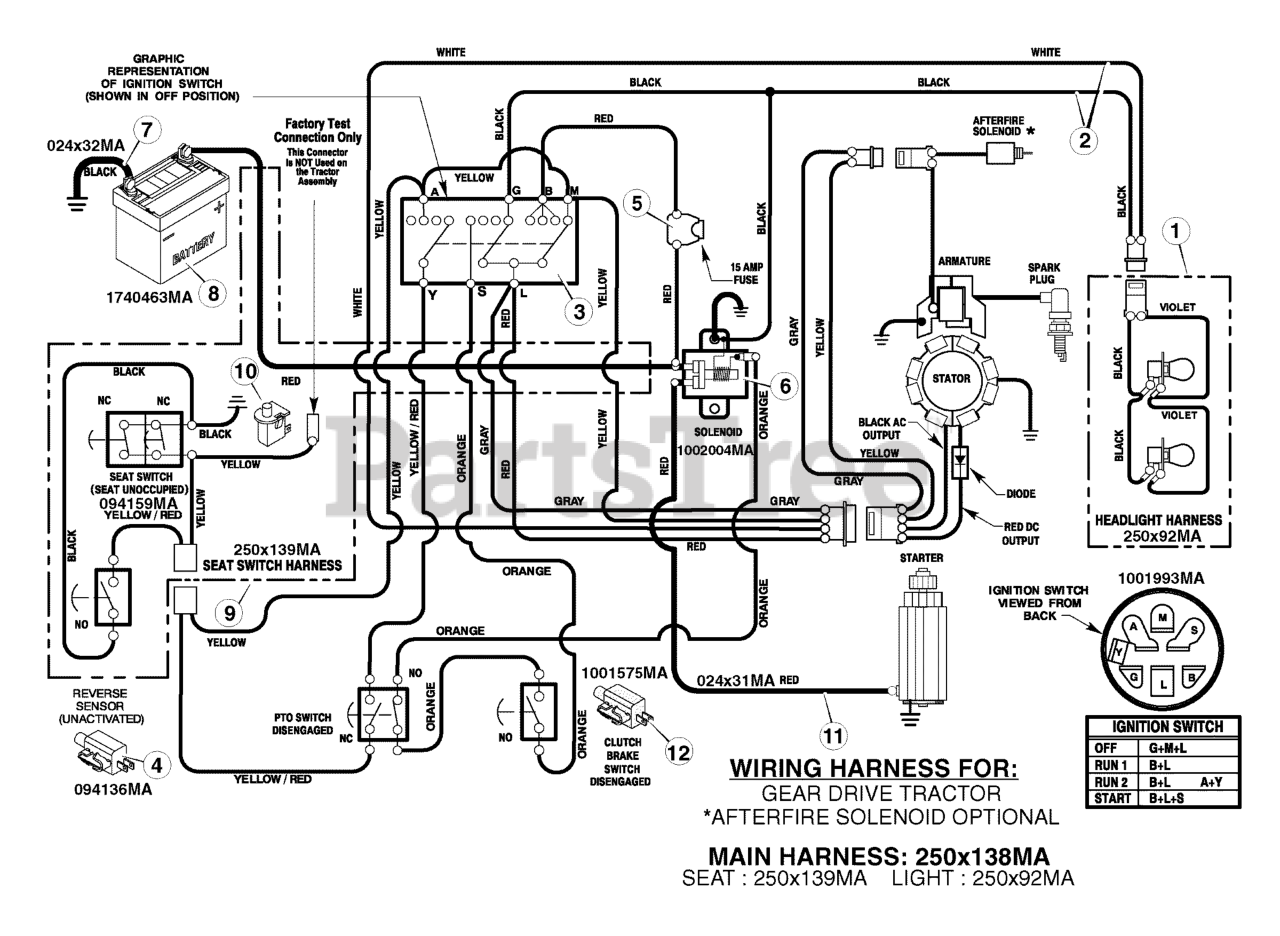

Electrical System Parts Diagram

  • Title
1

Murray 250X92MA

HARNESS, Light Wire

$16.99

$

Usually ships in 2-12 days

0

--

Murray 092372MA

SOCKET, Light
(Superseded to 1001716MA)

$7.99

$

In Stock, Qty 7

0

--

Murray 090084MA

BULB, Light
(Superseded to 1677371SM)

$30.99

$

In Stock, only 1 left!

0

2

Murray 250X138MA

HARNESS, Chassis Wire

$134.99

$

Usually ships in 2-12 days

0

3

Murray 1001993MA

SWITCH, Ignition

$45.99

$

In Stock, only 1 left!

0

--

Murray 1001304MA

KEY, Ignition

$5.49

$

In Stock, only 1 left!

0

--

Murray 091489MA

NUT, Hex
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

--

Murray 091488MA

CAP, Ignition

$4.99

$

Usually ships in 2-12 days

0

4

Murray 094136MA

SWITCH, Limit

$12.99

$

Usually ships in 2-12 days

0

$6.49

$

Usually ships in 2-12 days

0

--

Murray 407078MA

HOLDER, Fuse

$20.99

$

Usually ships in 2-12 days

0

6

Murray 1002004MA

SOLENOID
(Superseded to 7701100MA)

$27.99

$

In Stock, only 3 left!

0

--

$4.49

$

In Stock, only 1 left!

0

--

Murray 15X116MA

LOCKNUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

7

Murray 024X32MA

CABLE, Battery Ground

$8.49

$

Usually ships in 2-12 days

0

--

Murray 26X229MA

SCREW, Ground Cable

$4.49

$

In Stock, only 1 left!

0

8

$

$

Currently unavailable

--

Murray 002X82MA

BOLT, Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

--

Murray 014X79MA

WINGNUT

$4.99

$

Usually ships in 2-12 days

0

9

Murray 250X139MA

HARNESS, Seat Switch Wire

$28.99

$

In Stock, only 1 left!

0

10

Murray 094159MA

SWITCH, Seat Sensor
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

11

$7.49

$

In Stock, only 1 left!

0

12

Murray 1001575MA

SWITCH, Limit

$9.99

$

In Stock, only 1 left!
