425009x31A - Scotts 42" Lawn Tractor (2002) Utility Dump Cart (part 2) Parts Diagram

42" Lawn Tractor

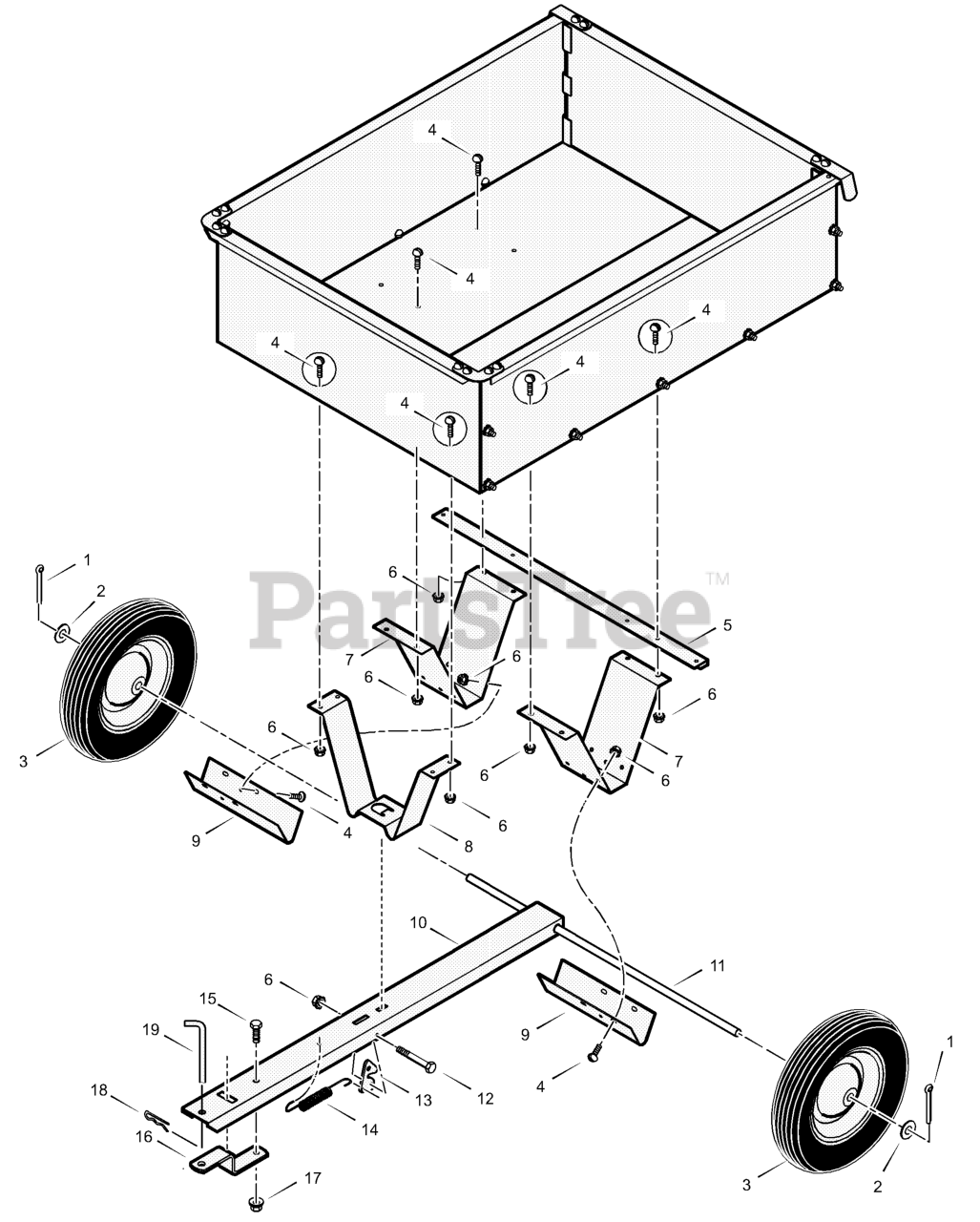

Utility Dump Cart (part 2) Parts Diagram

  • Title

1

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 11

0

2

Murray 17X197MA

Washer

$8.49

$

In Stock, only 3 left!

0

3

Murray 1001488MA

Wheel

$39.99

$

Usually ships in 2-12 days

0

4

Murray 004X24MA

Screw 14-20x0.50

$4.49

$

Usually ships in 2-12 days

0

5

Murray 1001472E701

Support, Bottom

$26.99

$

Usually ships in 2-12 days

0

6

Murray 015X66MA

Nut, Keps 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 16

0

7

Murray 1001466E701MA

Support, Axle

$76.99

$

Usually ships in 2-12 days

0

8

Murray 1001465E701

Support, Tongue

$

$

Not available

9

Murray 1001481E701MA

Retainer, Axle

$66.99

$

Usually ships in 2-12 days

0

10

Murray 1001464E701

Tongue (Black)

$

$

Not available

11

Murray 1001473MA

Axle

$68.99

$

Usually ships in 2-12 days

0

12

Murray 01X117

Bolt, Hex 1/4-20x3.25

$3.99

$

Usually ships in 2-12 days

0

13

Murray 1001480E701MA

Latch

$19.99

$

Usually ships in 2-12 days

0

14

Murray 165X75MA

Spring

$8.49

$

Usually ships in 2-12 days

0

15

Murray 001X85MA

Bolt, Hex 3/8-16x0.75

$3.99

$

Usually ships in 2-12 days

0

16

Murray 1001479E701MA

Hitch

$26.99

$

Usually ships in 2-12 days

0

17

Murray 015X84MA

Nut, Lock 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

18

Murray 0031X6MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

19

Murray 1001489 Z

Pin, Drawbar

$

$

Currently unavailable

--

Murray F-020903L

Book, Instruction

$

$

Currently unavailable

--

Murray 48X1101

Decal, Warning

$

$

Currently unavailable
