425007x92B - Briggs & Stratton 42" Lawn Tractor (2003) Engine Mount Parts Diagram

42" Lawn Tractor

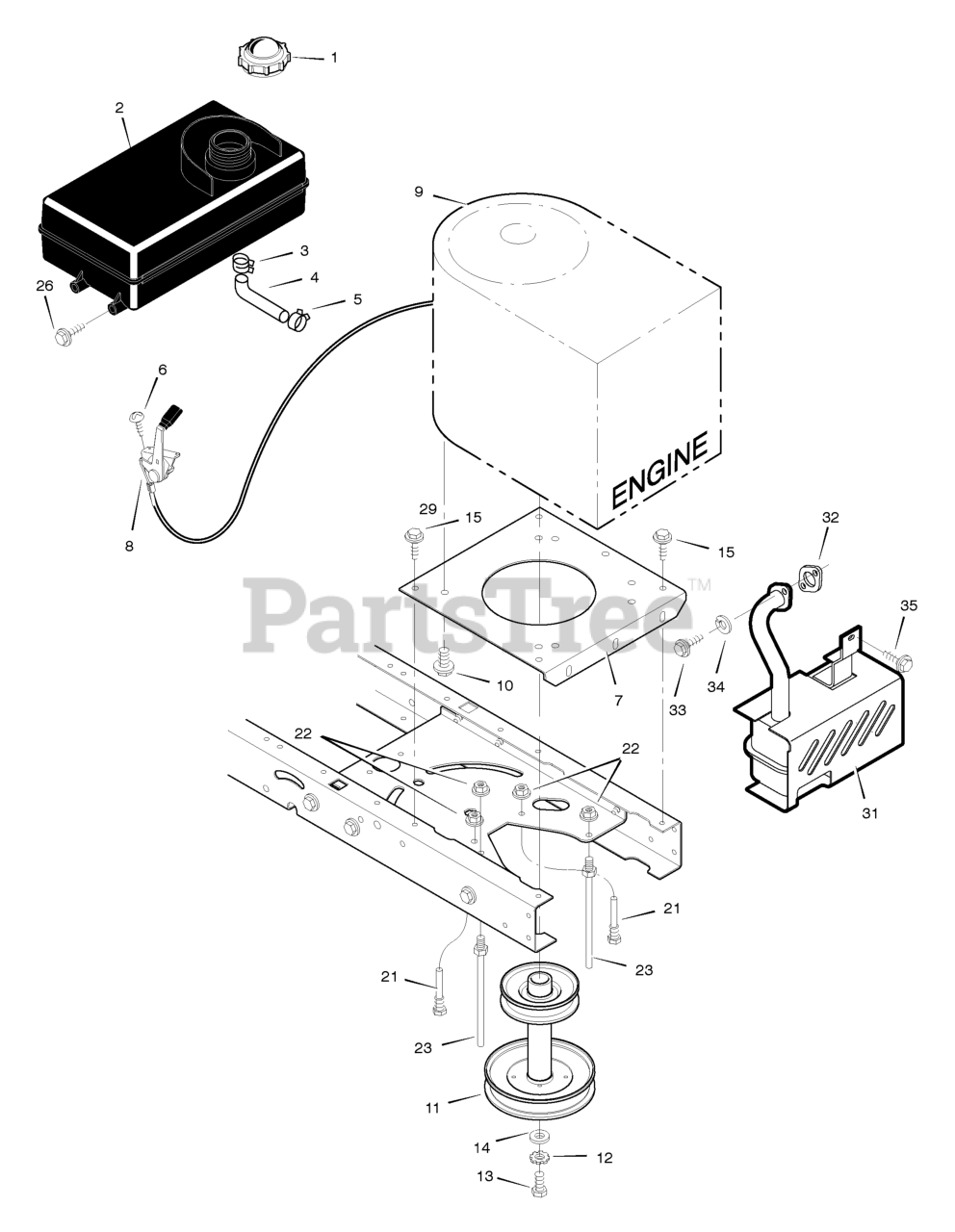

Engine Mount Parts Diagram

  • Title

1

Murray 092317MA

Fuel Cap

Note: (Included with Ref. No. 2)

$10.99

$

In Stock, Qty 7

0

2

Murray 7601092MA

TANK, Fuel 1.4 Gal.

$78.99

$

In Stock, only 1 left!

0

3

Murray 095197MA

Hose Clamp
(Superseded to 791850)

Note: (Included with Ref. No. 2)

$3.49

$

In Stock, Qty 20+

0

4

Murray 7601033MA

Fuel Line (Must cut to length)

Note: (Included with Ref. No. 2)

$22.99

$

Usually ships in 2-12 days

0

5

Murray 095197MA

Hose Clamp
(Superseded to 791850)

Note: (Included with Ref. No. 2)

$3.49

$

In Stock, Qty 20+

0

6

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

7

Murray 094006E700

Plate, Engine

$

$

Currently unavailable

8

Murray 092371MA

Throttle Control

$37.99

$

Usually ships in 2-12 days

0

9

Engine

$

$

Not available

10

Murray 0025X7MA

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

11

Murray 690439MA

STACK PULLEY ASSEMBLY

$64.99

$

In Stock, Qty 5

0

12

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, Qty 11

0

13

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, Qty 15

0

14

Murray 17X170MA

Washer

$

$

Not available

15

Murray 26X249MA

Screw

$

$

Not available

21

Murray 094384MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

22

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

23

Murray 094066MA

Guide, Belt

$14.99

$

In Stock, only 2 left!

0

26

Murray 26X253MA

Screw

$4.49

$

In Stock, only 1 left!

0

31

Murray 1001432MA

Muffler

$128.99

$

Usually ships in 2-12 days

0

32

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

33

Murray 06X103MA

Screw

$6.49

$

Usually ships in 2-12 days

0

34

Murray 018X15MA

Washer

$3.99

$

In Stock, only 1 left!

0

35

Murray 026X263

Screw

$4.99

$

In Stock, only 1 left!

0
