425002x99B - Briggs & Stratton 42" Lawn Tractor (2004) (AAFES) Engine Mount Parts Diagram

42" Lawn Tractor

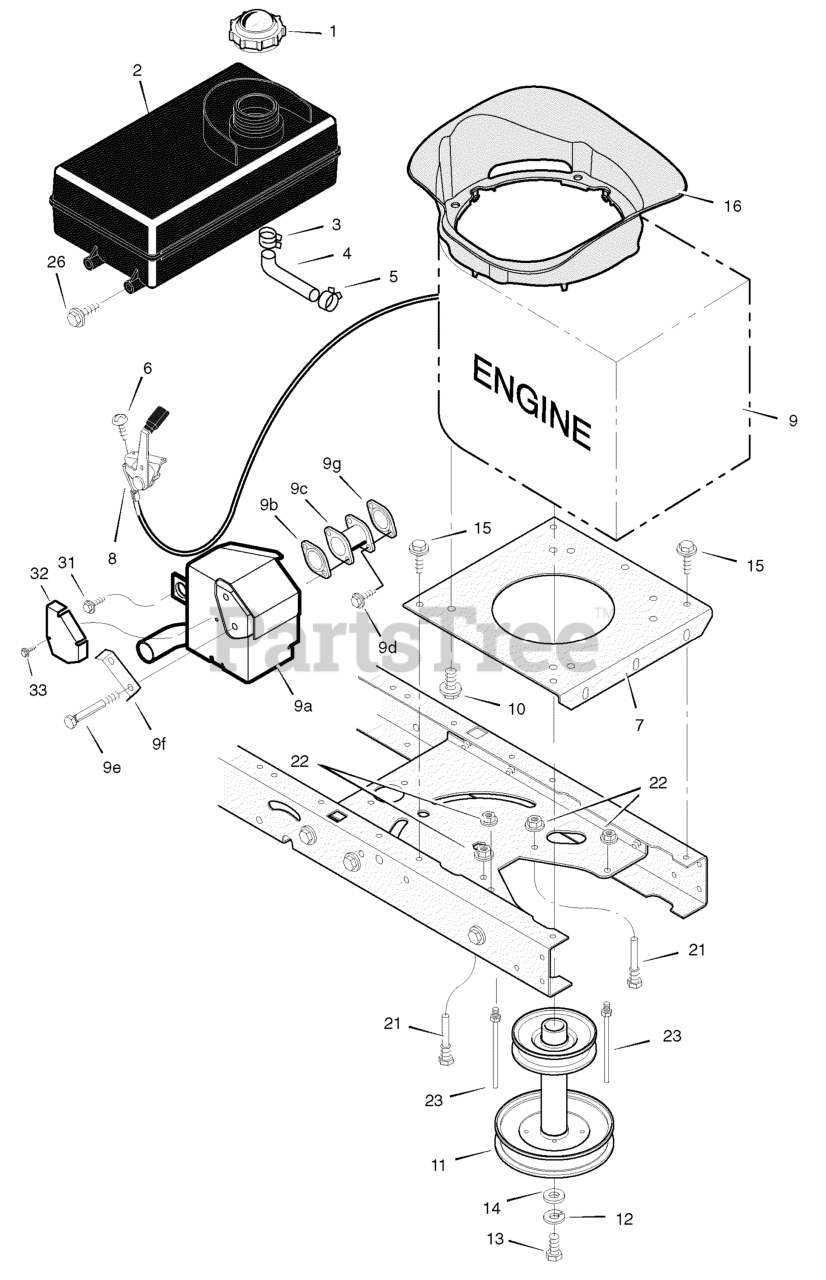

Engine Mount Parts Diagram

  • Title
1

Murray 92317

Fuel Cap
(Superseded to 691077)

Note: (Included with Ref. No. 2)

$3.49

$

In Stock, only 2 left!

0

2

Murray 7601092MA

TANK, Fuel 1.4 Gal.

$78.99

$

In Stock, only 2 left!

0

3

Murray 95197

Hose Clamp

Note: (Included with Ref. No. 2)

$

$

Not available

4

Murray 7601033

Fuel Line (Must cut to length)

Note: (Included with Ref. No. 2)

$22.99

$

Usually ships in 2-12 days

0

5

Murray 95197

Hose Clamp

Note: (Included with Ref. No. 2)

$

$

Not available

6

Murray 26X201

Screw
(Superseded to 26X201MA)

$4.49

$

In Stock, only 2 left!

0

7

Murray 094006E700

Plate, Engine

$

$

Currently unavailable

8

Murray 92371

Throttle Control

$

$

Not available

9

Engine, BRIGGS & STRATTON *

$

$

Not available

9a

Murray 1001657

Muffler and Heat Shield

$

$

Not available

9b

Murray 91309

Gasket, Muffler
(Superseded to 7091309YP)

$43.99

$

Usually ships in 2-12 days

0

9c

Murray 95207

Adapter, Muffler

$43.99

$

In Stock, Qty 6

0

9d

Murray 06X103

Screw, Adapter
(Superseded to 06X103MA)

$6.49

$

Usually ships in 2-12 days

0

9e

Murray 01X134

Bolt, Muffler

$10.99

$

Usually ships in 2-12 days

0

9f

Murray 92378

Lock, Screw

$5.49

$

In Stock, Qty 9

0

9g

Murray 711851

Gasket, Muffler

$4.49

$

Usually ships in 2-12 days

0

10

Murray 0025X7

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

11

Murray 690439MA

STACK PULLEY ASSEMBLY

$64.99

$

In Stock, Qty 5

0

12

Murray 019X35

Lockwasher
(Superseded to 019X35MA)

$4.99

$

In Stock, Qty 11

0

13

Murray 01X140

Bolt, Hex
(Superseded to 01X140MA)

$5.49

$

In Stock, Qty 15

0

14

Murray 17X170

Washer
(Superseded to 17X170MA)

$

$

Not available

15

Murray 26X249

Screw
(Superseded to 26X249MA)

$

$

Not available

16

$38.99

$

Usually ships in 2-12 days

0

21

Murray 94384

Guide, Belt

$

$

Not available

22

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

23

Murray 94066

Guide, Belt

$14.99

$

In Stock, only 2 left!

0

26

$4.49

$

Usually ships in 2-12 days

0

31

Murray 26X263

Screw
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

32

Murray 1001615

Shield, Heat

$7.99

$

In Stock, only 1 left!

0

33

$

$

Not available
