425002x99B - Briggs & Stratton 42" Lawn Tractor (2004) (AAFES) Chassis & Hood Parts Diagram

42" Lawn Tractor

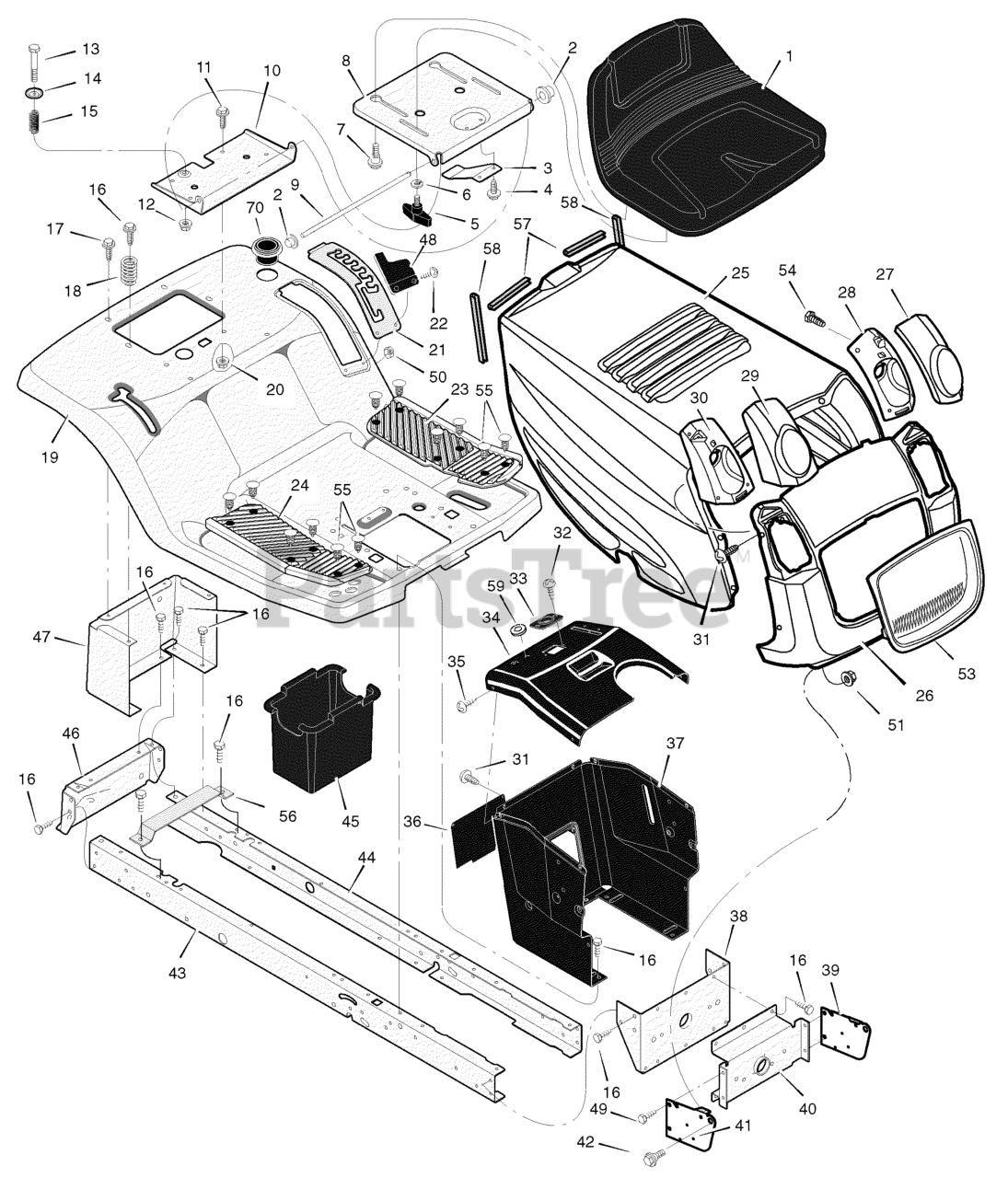

Chassis & Hood Parts Diagram

  • Title
1

$20.99

$

Usually ships in 2-12 days

0

2

Murray 028X23

Cap, Push 0n
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

3

Murray 94057

Spring
(Superseded to 94124)

$14.99

$

In Stock, only 1 left!

0

4

Murray 26X229

Screw
(Superseded to 26X229MA)

$4.49

$

In Stock, only 1 left!

0

5

Murray 1001054

Bolt, Wing
(Superseded to 1001054MA)

$6.99

$

Usually ships in 2-12 days

0

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56

Bolt, Shoulder
(Superseded to 009X56MA)

$3.49

$

Usually ships in 2-12 days

0

8

Murray 094154E701

Support, Seat

$

$

Not available

9

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 1001648E700

Bracket, Pivot

$

$

Currently unavailable

11

Murray 001X45

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

12

Murray 015X89

Nut
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55

Bolt, Shoulder
(Superseded to 009X55MA)

$3.49

$

Usually ships in 2-12 days

0

14

$

$

Currently unavailable

15

Murray 164X31

Spring
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

16

Murray 26X249

Screw
(Superseded to 26X249MA)

$

$

Not available

17

Murray 26X263

Screw
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

18

Murray 164X30

Spring
(Superseded to 164X30MA)

$15.99

$

Usually ships in 2-12 days

0

19

Murray 1001558E245

Deck, Seat

$

$

Not available

20

Murray 15X123

Nut
(Superseded to 15X123MA)

$3.99

$

Usually ships in 2-12 days

0

21

Murray 094151E701

Plate, Index

$16.99

$

Usually ships in 2-12 days

0

22

Murray 009X47

Screw
(Superseded to 009X47MA)

$4.49

$

Usually ships in 2-12 days

0

23

Murray 1001582

Mat, Left

$24.99

$

Usually ships in 2-12 days

0

24

Murray 1001578

Mat, Right

$23.99

$

Usually ships in 2-12 days

0

$267.99

$

Usually ships in 2-12 days

0

26

$113.99

$

In Stock, only 1 left!

0

27

Murray 1001546

Lens, Left

$13.99

$

In Stock, only 2 left!

0

28

Murray 1001544

Housing, Left Headlamp

$28.99

$

Usually ships in 2-12 days

0

29

Murray 1001545

Lens, Right

$13.99

$

In Stock, only 2 left!

0

30

Murray 1001543

Housing, Right Headlamp

$

$

Not available

31

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

32

$3.99

$

Usually ships in 2-12 days

0

33

Murray 1001491

Bearing, Steering
(Superseded to 1001491MA)

$5.49

$

Usually ships in 2-12 days

0

$71.99

$

Usually ships in 2-12 days

0

35

Murray 26X201

Screw
(Superseded to 26X201MA)

$4.49

$

In Stock, only 2 left!

0

36

Murray 093007E701

Panel, Access

$31.99

$

Usually ships in 2-12 days

0

37

Murray 095318E701

Support, Dash

$155.99

$

Usually ships in 2-12 days

0

38

Murray 1001270E701

Bracket, Rear Hanger

$165.99

$

Usually ships in 2-12 days

0

39

Murray 094085E701MA

Support, Left Grille

$

$

Not available

40

Murray 094007E701

Axle, Hanger

$32.99

$

Usually ships in 2-12 days

0

41

Murray 094084E701MA

Support, Right Grille

$

$

Not available

42

Murray 009X58

Bolt, Shoulder
(Superseded to 702315)

$6.99

$

Usually ships in 2-12 days

0

43

Murray 1001268E701

Frame, Right

$

$

Not available

44

Murray 1001269E701

Frame, Left

$103.99

$

Usually ships in 2-12 days

0

45

Murray 690424

Container, Battery

$8.99

$

Usually ships in 2-12 days

0

46

Murray 1001002E701

Plate, Hitch

$

$

Not available

47

Murray 690434E700

Panel, Rear

$87.99

$

Usually ships in 2-12 days

0

48

Murray 94610

Cover, Detent

$5.49

$

In Stock, only 1 left!

0

49

Murray 26X277

Screw
(Superseded to 26X277MA)

$4.99

$

Usually ships in 2-12 days

0

50

Murray 015X81

Nut
(Superseded to 015X81MA)

$4.99

$

Usually ships in 2-12 days

0

51

$

$

Not available

53

Murray 1001540

Insert, Grille

$34.99

$

In Stock, only 1 left!

0

54

$4.49

$

In Stock, only 4 left!

0

55

Murray 193X1

Fastener, Panel

$3.99

$

In Stock, only 1 left!

0

56

Murray 690482E701

Support, Battery

$

$

Not available

57

Murray 1001652

Trim, Hood (3.75")

$

$

Not available

58

Murray 1001653

Trim, Hood (6.5")

$10.99

$

Usually ships in 2-12 days

0

59

Murray 1001755

Grommet, Parking Brake

$3.49

$

Usually ships in 2-12 days

0

70

Murray 1001542

Holder, Cup

$11.99

$

Usually ships in 2-12 days

0

--

Murray 94451

Parts Bag, Assembly
(Superseded to 94451GS)

$14.99

$

Usually ships in 2-12 days

0

--

Murray F-040708L

Instruction Book & Parts List

$

$

Currently unavailable
