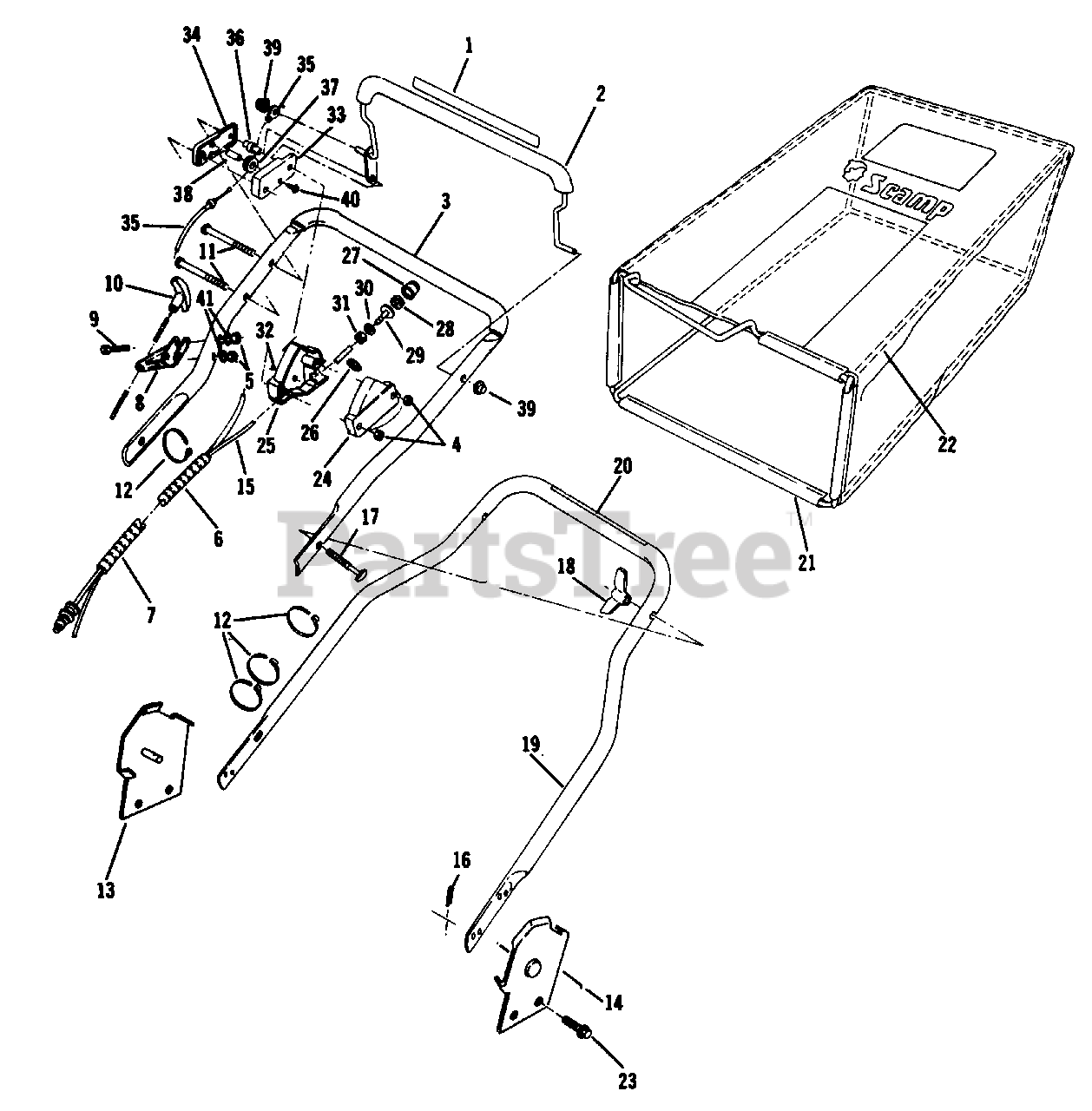

4250 - Lawn-Boy Walk-Behind Mower (SN: B00000001 - B99999999) (1983) HANDLE AND REAR BAGGER GROUP MODEL: 4250 Parts Diagram

Walk-Behind Mower

HANDLE AND REAR BAGGER GROUP MODEL: 4250 Parts Diagram

  • Title
1

Lawn-Boy 611244

Decal-Engine/Blade Control

$

$

Not available

2

Lawn-Boy 682930

Control Lever and Cable Ass'y
(Superseded to 683480)

$

$

Not available

3

Lawn-Boy 682695

Top Handle and Grip Assembly
(Superseded to 611277)

$

$

Not available

4

Lawn-Boy 611258

Locknut-Hex

$3.49

$

Usually ships in 3-6 days

0

5

Lawn-Boy 602315

Locknut

$4.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 611460

Spiral Tubing

$

$

Not available

7

Lawn-Boy 609857

Spiral Tubing

$

$

Not available

8

Lawn-Boy 682684

Rope Guide Assembly

$

$

Not available

9

Lawn-Boy 611233

Screw-Truss Head

$

$

Not available

10

Lawn-Boy 611340

Handle-Starter

$

$

Not available

11

$

$

Not available

12

Lawn-Boy 320107

Tie Strap
(Superseded to 614249)

$1.49

$

In Stock, Qty 6

0

13

Lawn-Boy 682878

Bracket-Handle-R.H.

$

$

Not available

14

Lawn-Boy 682879

Bracket-Handle-L.H.
(Superseded to 684543)

$

$

Not available

15

$

$

Not available

16

Lawn-Boy 605803

Hairpin

$

$

Not available

17

Lawn-Boy 611184

Screw-Folding Handle

$8.49

$

In Stock, only 1 left!

0

18

Lawn-Boy 607544

Knob-Folding Handle

$25.99

$

In Stock, only 4 left!

0

19

Lawn-Boy 611477

Handle-Bottom
(Superseded to 612787)

$

$

Not available

20

Lawn-Boy 611238

Decal-Starting Inst.

$

$

Not available

21

Lawn-Boy 682895

Bag Assemble
(Superseded to 683799)

$262.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 682894

Frame-Support-Bag

$

$

Not available

23

Lawn-Boy 611487

Screw-Bracket Handle to Hsg.

$

$

Not available

24

Lawn-Boy 611252

Console Left

$

$

Not available

25

Lawn-Boy 611253

Console Right

$

$

Not available

26

Lawn-Boy 611232

Plug Button

$

$

Not available

27

Lawn-Boy 611072

Primer Bulb

$

$

Not available

28

$3.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 607311

Primer Base

$

$

Not available

30

$

$

Not available

31

Lawn-Boy 608027

Locknut

$2.49

$

In Stock, Qty 6

0

32

Lawn-Boy 611249

Screw Truss Head
(Superseded to 611381)

$1.99

$

In Stock, only 3 left!

0

33

Lawn-Boy 611539

Control Case-Inner
(Superseded to 683171)

$

$

Not available

34

Lawn-Boy 611540

Control Case-Outer
(Superseded to 683171)

$

$

Not available

35

Lawn-Boy 682933

Control Cable Assembly
(Superseded to 683041)

$138.99

$

Usually ships in 3-6 days

0

36

$14.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 611195

Pulley
(Superseded to 612564)

$5.99

$

Usually ships in 3-6 days

0

$

$

Not available

39

Lawn-Boy 605546

Push Nut
(Superseded to 32112-11)

$1.49

$

In Stock, only 3 left!

0

40

Lawn-Boy 611543

Screw Truss Head

$4.49

$

In Stock, Qty 6

0

41

$

$

Not available
