425 A (190-425-100) - Cub Cadet 17 Cubic Feet Utility Cart 17 Cu. Ft. Utility Cart (Super) - Yellow Parts Diagram

17 Cubic Feet Utility Cart

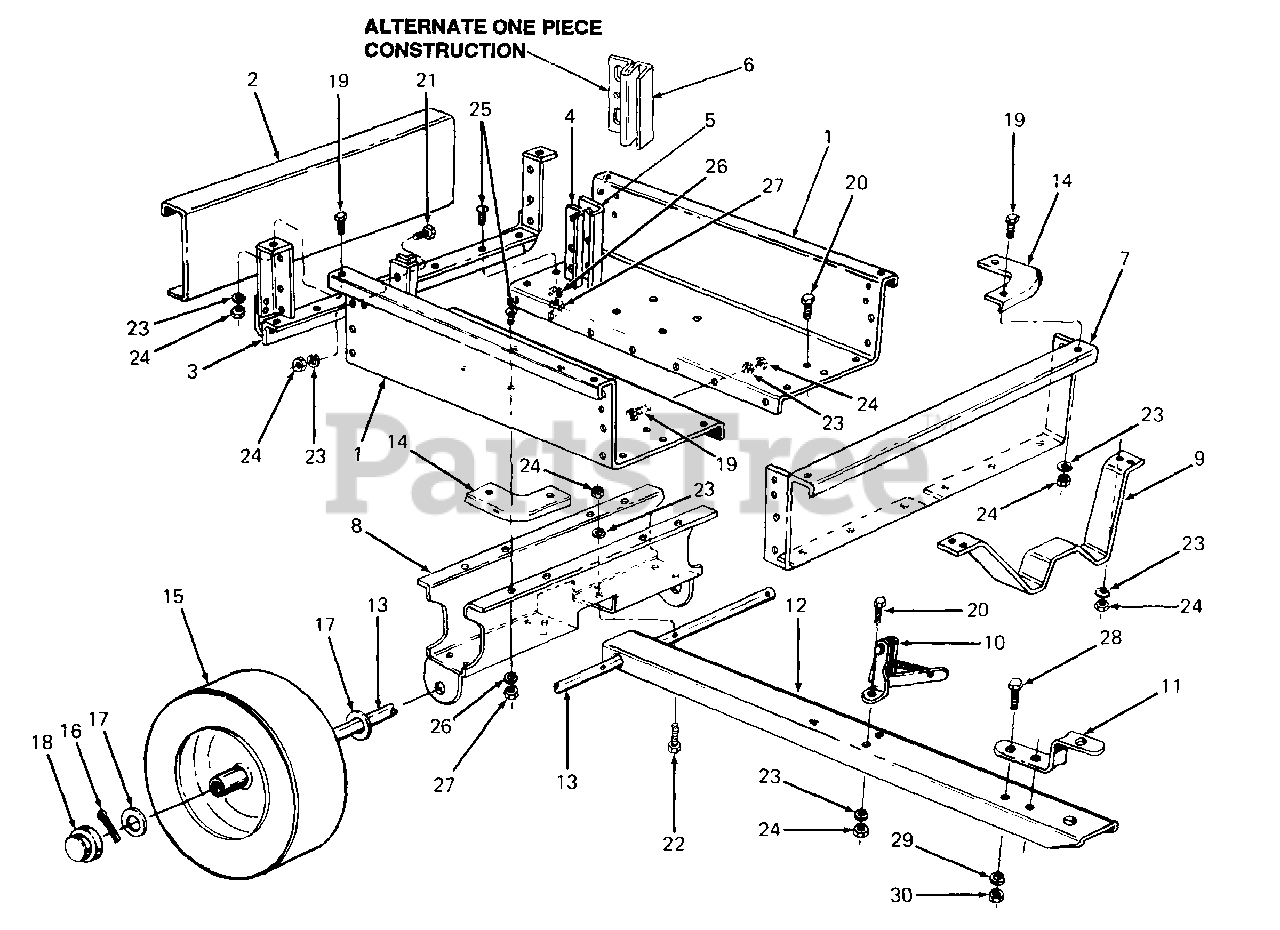

17 Cu. Ft. Utility Cart (Super) - Yellow Parts Diagram

  • Title

1

Cub Cadet AF-23984

Body, Cart

Variations

Cub Cadet AF-23984-0498

BODY-CART - OLD CUB YELLOW (0498)

$

$

Not available

$266.99

$

Usually ships in 3-6 days

0

Cub Cadet AF-46246

Graphic, RH

$

$

Not available

Cub Cadet AF-46247

Graphic, LH

$

$

Not available

2

Cub Cadet AF-23504

Tailgate

Variations

Cub Cadet AF-23504-0498

TAILGATE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet AF-23504-0499

TAILGATE - CUB BEIGE (0499)

$

$

Not available

$

$

Cub Cadet AF-46250

Graphic, Reflective

$

$

Not available

3

Cub Cadet AF-62457

Angle Assy, Rear
(Superseded to AF-62457-0637)

Variations

Cub Cadet AF-62457-0637

ANGLE ASSY-REAR - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet AF-23548

Guide, Tailgate - Inside

$

$

Not available

5

Cub Cadet AF-23549

Guide, Tailgate - Outside
(Superseded to AF-23548)

$

$

Not available

6

Cub Cadet AF-23767

Guide, Tailgate - One Piece 2
(Superseded to AF-23548)

$

$

Not available

7

Cub Cadet AF-23490

Panel, Front

Variations

Cub Cadet AF-23490-0498

FRONT PANEL (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet AF-23490-0499

FRONT PANEL (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

$

$

8

Cub Cadet AF-23487

Support, Wheel
(Superseded to AF-23487-0637)

Variations

Cub Cadet AF-23487-0637

SUPPORT-WHEEL - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet AF-23297

Bracket, Latch Stand
(Superseded to AF-23297-0637)

Variations

Cub Cadet AF-23297-0637

Latch Stan Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet AF-62455

Lock Assy, Latch

$

$

Not available

11

Cub Cadet AF-23014

Bracket, Hitch
(Superseded to AF-23014-0637)

Variations

Cub Cadet AF-23014-0637

Hitch Bracket - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

12

Cub Cadet AF-23989

Tongue, Draw Bar
(Superseded to AF-23989-0637)

Variations

Cub Cadet AF-23989-0637

TONGUE-DRAW BAR - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet AF-23488

Axle, Wheel, 1.0 Dia

Variations

Cub Cadet AF-23488-0637

USE AF-23488 AXLE-WHEEL 1.0 D - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet AF-23484

Cap, Front Corner

Variations

Cub Cadet AF-23484-0498

CAP-FRONT CORNER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet AF-23484-0499

FRONT CORNER CAP (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

Cub Cadet AF-23484-0650

CAP-FRONT CORNER - RED METALLIC (0650)

$

$

Not available

$

$

15

Cub Cadet AF-43594

Wheel Assy, 16 X 6.5 X 8.0
(Superseded to AF-41483)

Variations

Cub Cadet AF-43594-0499

Wheel Assembly, 16X6.5X8 - CUB BEIGE (0499)

$

$

Not available

$

$

16

Cub Cadet 714-3001

Pin, Cotter, 1/8 Dia X 1.5 Lg
(Superseded to 914-3001)

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet AF-43601

Washer, Flat, 1.03 ID

$8.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 731-0484A

Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 X .50 Lg

$4.99

$

In Stock, Qty 11

0

20

Cub Cadet 710-0258

Screw, Hex Cap, 1/4-20 X .62 Lg
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 X .75 Lg

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0136

Screw, Hex Cap, 1/4-20 X 1.75 Lg

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

24

Cub Cadet 712-0287

Nut, Hex, 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

25

Cub Cadet 710-0323

Screw, Truss Hd, 5/16-18 X .75 Lg 14

$4.99

$

In Stock, only 2 left!

0

26

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 712-3017

Nut, Hex, 3/8-16

$4.49

$

In Stock, Qty 20+

0
