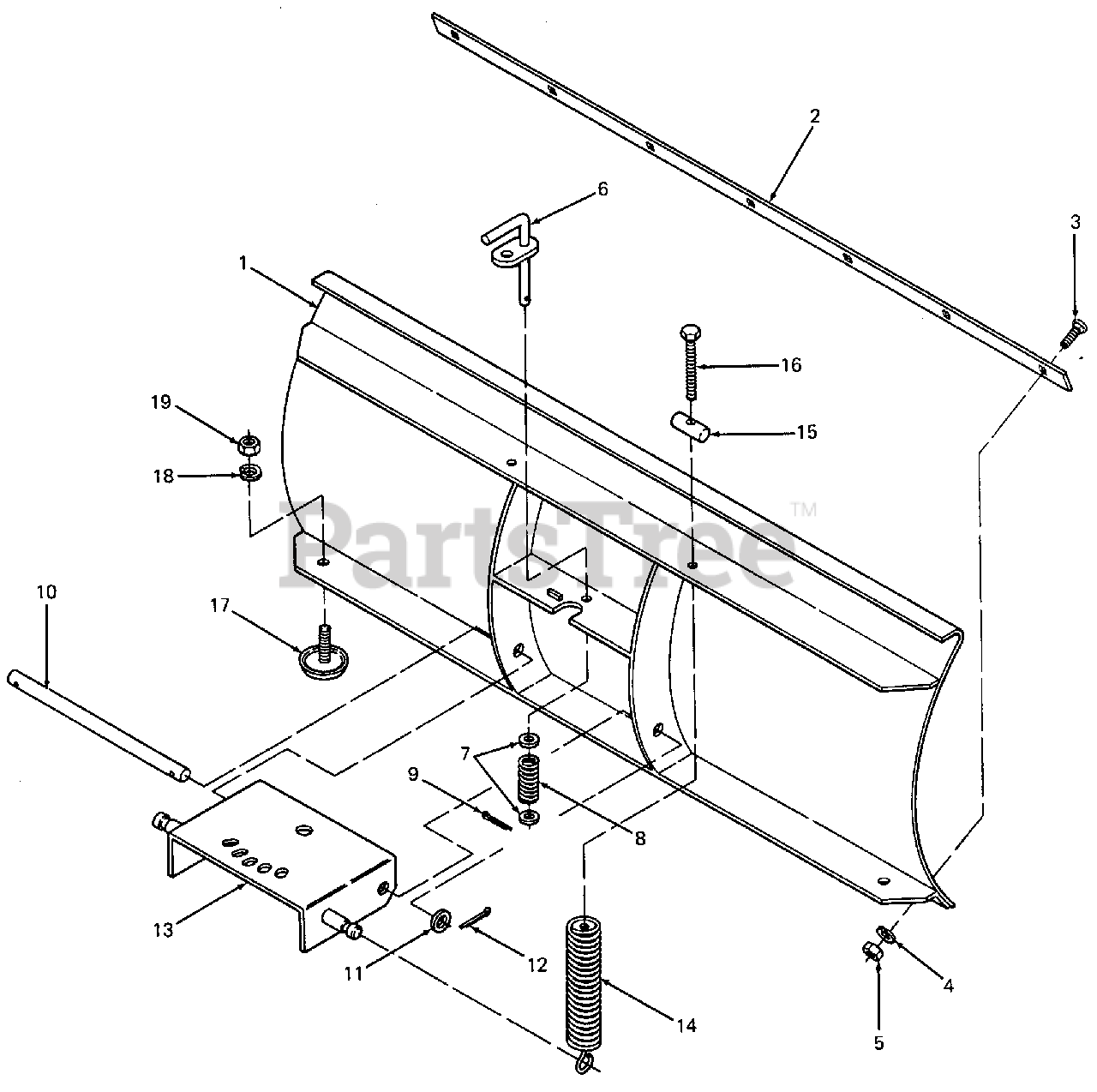

424 (190-424-100) - Cub Cadet 42" Snow Blade Blade Parts Diagram

42" Snow Blade

Blade Parts Diagram

  • Title

1

Cub Cadet 703-1683

Snowblade - 42 inch

$

$

Not available

2

Cub Cadet 703-0658

Edge, Blade Cutting

Variations

Cub Cadet 703-0658-0498

Edger Blade, Yellow - OLD CUB YELLOW (0498)

$113.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-0658-0716

Edger Blade, Yellow - CUB YELLOW-99 (0716)

$113.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-0658-0499

Edger Blade, Beige - CUB BEIGE (0499)

$113.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-0658-0637

Edger Blade - POWDER BLACK (0637)

$113.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-0658-4021

Edger Blade - CUB YELLOW 2 (4021)

$113.99

$

Usually ships in 3-6 days

0

$113.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-3105

Bolt, Sq Neck Carriage, 5/16-18 X 7/8 Lg

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 703-0648

Lock, Spring Trip

$

$

Not available

7

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.99

$

In Stock, only 3 left!

0

8

Cub Cadet 732-3036

Spring, Compression

$

$

Not available

9

Cub Cadet 714-3022

Pin, Cotter, 7/64 Dia X 7/8 Lg

$

$

Currently unavailable

10

Cub Cadet 747-3087

Rod, Blade Pivot

$

$

Not available

11

Cub Cadet 736-0237

Washer, Flat, .64 X 1.25 X .100 Thk

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 714-0162

Pin, Cotter, 5/32 Dia X 1.25 Lg

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 703-0664

Frame, Pivot

Variations

Cub Cadet 703-0664-0498

FRAME ASSEMBLY-PIVOT - OLD CUB YELLOW (0498)

$

$

Not available

$

$

14

Cub Cadet 703-1633

Spring Assy, Extension
(Superseded to 903-1633-0499)

Variations

Cub Cadet 703-1633-0499

Extension Spring, Beige - CUB BEIGE (0499)

$90.99

$

Usually ships in 3-6 days

0

$90.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 711-3247

Roller, Spring

$20.99

$

In Stock, only 2 left!

0

16

Cub Cadet 710-3198

Screw, Hex Cap, 3/8-16 X 3.5 Lg GR5

$9.49

$

In Stock, only 1 left!

0

17

Cub Cadet 703-0650

Shoe, Skid

Variations

Cub Cadet 703-0650-0637

Snow Skid Shoe - POWDER BLACK (0637)

$47.99

$

In Stock, only 3 left!

0

$47.99

$

In Stock, only 3 left!

0

18

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 5

0

19

Cub Cadet 712-3048

Nut, Hex Jam, 1/2-13 GR5

$4.99

$

In Stock, Qty 7

0
