422437-4146-E1 - Briggs & Stratton Horizontal Engine Carburetor (3 Screw Mount) Parts Diagram

Horizontal Engine

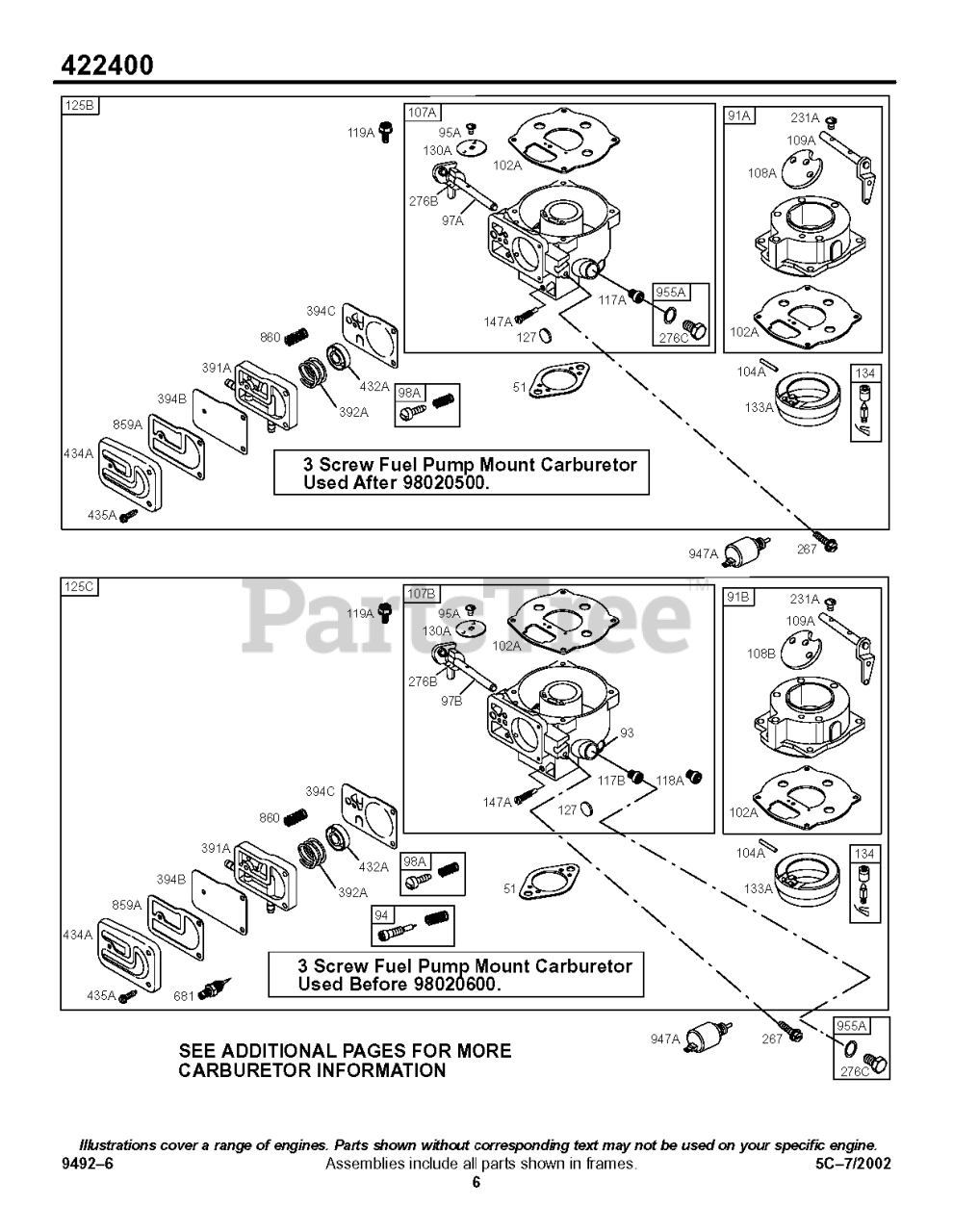

Carburetor (3 Screw Mount) Parts Diagram

  • Title

91A

Briggs & Stratton 499281

Body-Upper Carburetor
(Superseded to 694026)

$

$

Not available

91B

Briggs & Stratton 495035

Body-Upper Carburetor
(Superseded to 694026)

$

$

Not available

93

Briggs & Stratton 690513

Bushing-Throttle Shaft

Note: Used Before Code Date 98020600

$8.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 491538

Kit-Idle Mixture

$14.99

$

Usually ships in 2-12 days

0

95A

Briggs & Stratton 691437

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 3 left!

0

97A

Briggs & Stratton 691485

Shaft-Throttle

Note: (Used On 3 Screw Fuel Pump Mount Carburetors) Used After Code Date 98020500

$11.99

$

Usually ships in 2-12 days

0

97B

Briggs & Stratton 690629

Shaft-Throttle

Note: (Used On 3 Screw Fuel Pump Mount Carburetors) Used Before Code Date 98020600

$38.99

$

Usually ships in 2-12 days

0

98A

Briggs & Stratton 693942

Kit-Idle Speed

$8.99

$

Usually ships in 2-12 days

0

102A

Briggs & Stratton 273186S

Gasket-Carburetor Body

$6.99

$

In Stock, Qty 9

0

104A

Briggs & Stratton 691775

Pin-Float Hinge

$3.99

$

In Stock, only 1 left!

0

107A

Briggs & Stratton 499655

Body-Lower Carburetor

$63.99

$

Usually ships in 2-12 days

0

107B

Briggs & Stratton 491543

Body-Lower Carburetor

$

$

Not available

108A

Briggs & Stratton 691233

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

108B

Briggs & Stratton 223534

Valve-Choke

$7.99

$

Usually ships in 2-12 days

0

109A

Briggs & Stratton 691957

Shaft-Choke

$45.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 691253

Jet-Main

Note: (Standard)

$18.99

$

Usually ships in 2-12 days

0

117B

Briggs & Stratton 691773

Jet-Main

Note: (Standard)

$5.99

$

Usually ships in 2-12 days

0

118A

Briggs & Stratton 231333

Jet-Main

Note: (High Altitude)

$28.99

$

Usually ships in 2-12 days

0

119A

Briggs & Stratton 691090

Screw

Note: (Upper To Lower Carburetor Body)

$3.99

$

Usually ships in 2-12 days

0

125B

Briggs & Stratton BLANK

Carburetor

Note: (3 Screw Fuel Pump Mount)(Service With Reference 125A) Used After Code Date 98020500

$

$

Currently unavailable

125C

Briggs & Stratton BLANK

Carburetor

Note: (3 Screw Fuel Pump Mount)(Service With Reference 125A) Used Before Code Date 98020600

$

$

Currently unavailable

127

Briggs & Stratton 691739

Plug-Welch

$4.49

$

Usually ships in 2-12 days

0

130A

Briggs & Stratton 691727

Valve-Throttle

$6.99

$

Usually ships in 2-12 days

0

133A

Briggs & Stratton 692265

Float-Carburetor

$11.99

$

In Stock, Qty 8

0

134

Briggs & Stratton 394682

Kit-Needle/Seat

$9.99

$

In Stock, only 2 left!

0

147A

Briggs & Stratton 691431

Jet-Pilot

$13.99

$

Usually ships in 2-12 days

0

231A

Briggs & Stratton 691437

Screw

Note: (Choke Valve)

$3.99

$

In Stock, only 3 left!

0

276B

Briggs & Stratton 691319

Washer-Sealing

Note: (Throttle Shaft)

$5.49

$

In Stock, only 1 left!

0

276C

Briggs & Stratton 691872

Washer-Sealing

Note: (Carburetor Plug)

$7.49

$

Usually ships in 2-12 days

0

391A

Briggs & Stratton 691896

Body-Fuel Pump

$15.99

$

In Stock, Qty 6

0

392A

Briggs & Stratton 691801

Spring-Pump Diaphragm

$4.99

$

In Stock, Qty 9

0

394B

Briggs & Stratton 691871

Diaphragm-Carburetor

$6.49

$

In Stock, only 1 left!

0

394C

Briggs & Stratton 272638S

Diaphragm-Carburetor

$6.99

$

In Stock, only 4 left!

0

432A

Briggs & Stratton 690766

Cap-Spring

$4.99

$

In Stock, only 3 left!

0

434A

Briggs & Stratton 690434

Cover-Diaphragm

$

$

Not available

435A

Briggs & Stratton 691085

Screw

Note: (Diaphragm Cover)

$4.99

$

Usually ships in 2-12 days

0

859A

Briggs & Stratton 691873

Gasket-Carburetor Pump

$8.49

$

In Stock, only 1 left!

0

860

Briggs & Stratton 691799

Spring-Diaphragm

$7.49

$

In Stock, only 1 left!

0

947A

Briggs & Stratton 397266

Solenoid-Fuel

Note: (Used On 3 Screw Fuel Pump Mount Carburetors)

$

$

Not available

955A

Briggs & Stratton 397882

Plug-Carburetor

$

$

Not available
