422023BVE (85684) - Snapper 42" Rear-Engine Riding Mower, 20hp 42" MOWER DECK ASSEMBLY PT.1 Parts Diagram

42" Rear-Engine Riding Mower, 20hp

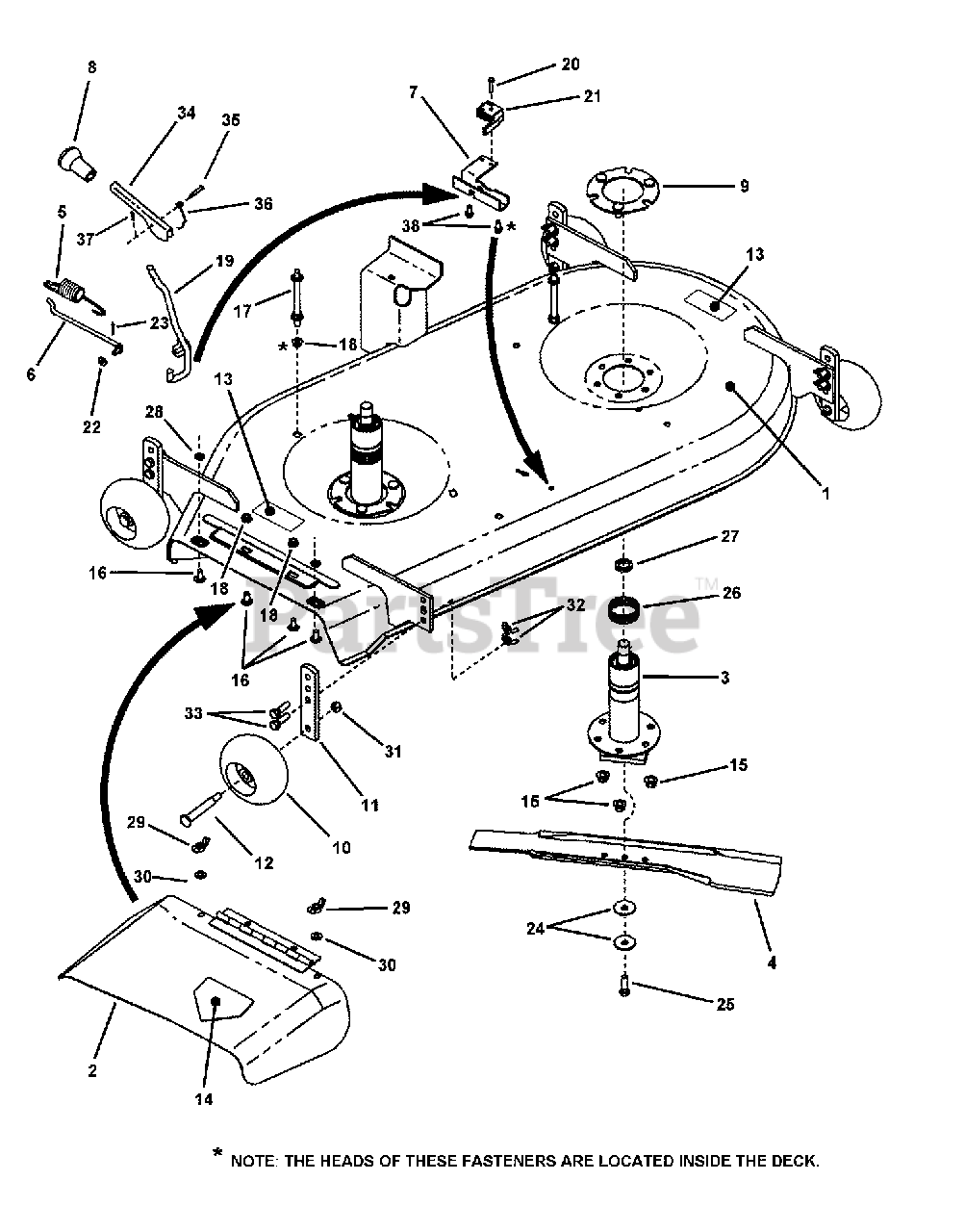

42" MOWER DECK ASSEMBLY PT.1 Parts Diagram

  • Title

1

Snapper 7063040

WELDMENT, 42" Deck
(Superseded to 7063040YP)

Note: Was 42645

$900.99

$

Usually ships in 2-12 days

0

2

Snapper 7051401

ASSEMBLY, Side Chute (Includes decal 26831)
(Superseded to 7051401YP)

$159.99

$

Usually ships in 2-12 days

0

3

Snapper 7059628

ASSEMBLY, Spindle
(Superseded to 7059628BMYP)

$341.99

$

Usually ships in 2-12 days

0

4

Snapper 7026691

BLADE, 21" Standard Lift
(Superseded to 7026691BZYP)

$23.99

$

In Stock, Qty 20+

0

5

Snapper 7014168

SPRNG, Blade Handle
(Superseded to 7014168YP)

$6.49

$

In Stock, Qty 9

0

6

Snapper 7012055

ROD, Idler Control
(Superseded to 7012055YP)

$15.99

$

In Stock, only 3 left!

0

7

Snapper 7038021

MOUNT, Handle/Switch
(Superseded to 7038021YP)

$13.99

$

Usually ships in 2-12 days

0

8

Snapper 7046874

GRIP, Handle
(Superseded to 7046874YP)

$9.99

$

In Stock, Qty 9

0

9

Snapper 7053034

ASSEMBLY, Spindle Ring
(Superseded to 7053034YP)

$27.99

$

Usually ships in 2-12 days

0

10

Snapper 7029264

WHEEL, Gage
(Superseded to 7029264YP)

$14.99

$

In Stock, only 2 left!

0

11

Snapper 7035835

POST, Anti-Scalp
(Superseded to 7035835SM)

$20.99

$

In Stock, only 2 left!

0

12

Snapper 7029265

BOLT, Gage Wheel, 3/8-16 x 3-3/8" Hex Head Shoulder
(Superseded to 7029265SM)

$10.99

$

In Stock, Qty 5

0

13

Snapper 7014852

DECAL, Caution
(Superseded to 7101665YP)

$14.99

$

In Stock, Qty 6

0

14

Snapper 7013010

DECAL, Danger
(Superseded to 7013010SM)

Note: Was 26831

$9.49

$

In Stock, Qty 11

0

15

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

16

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

17

Snapper 7029303

STAND-OFF, 3-1/2" long, 5/16-18 top, 3/8-16 bottom threads
(Superseded to 7029303YP)

$48.99

$

Usually ships in 2-12 days

0

18

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

19

Snapper 7059254

WELDMENT, Blade Engagement Handle
(Superseded to 7059254YP)

$39.99

$

Usually ships in 2-12 days

0

20

Snapper 7090299

SCREW, #10-32 x 1" Hex Washer Head Self-Tap
(Superseded to 7090299YP)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 7018524

SWITCH, Deck Interlock (NO)
(Superseded to 7018524YP)

$19.99

$

In Stock, Qty 12

0

22

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

23

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

24

Snapper 7012063

WASHER, 13/32" I.D. Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

25

Snapper 7090824

SCREW, 3/8-24 x 1-1/4" Hex Head Cap, GR5
(Superseded to 7090824YP)

$4.99

$

In Stock, Qty 9

0

26

Snapper 7012670

TOLERANCE RING, 2.0
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 6

0

27

Snapper 7014526

SPACER

$

$

Not available

28

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7091537

WING-NUT, 5/16-18 Lock
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

30

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, Qty 6

0

31

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 1 left!

0

32

Snapper 7091049

WING-NUT, 3/8-16 Nyloc
(Superseded to 7091049SM)

$5.49

$

In Stock, only 2 left!

0

33

Snapper 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap, GR5
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

34

Snapper 7046567

HANDLE, Blade Engagement
(Superseded to 7046567BMYP)

$13.99

$

In Stock, only 1 left!

0

35

Snapper 7091974

PIN, 3/16 x 1" Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 6

0

36

Snapper 7046648

SPRING, Torsion
(Superseded to 7046648YP)

$5.49

$

In Stock, Qty 5

0

37

Snapper 7091597

PIN, 3/32 x 1/2" Cotter
(Superseded to 703312)

Note: Was 90555

$3.99

$

In Stock, Qty 20+

0

38

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Head Self-Tap
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0
