421823BVE (84880) - Snapper 42" Rear-Engine Riding Mower, 18hp SMOOTH CLUTCH ASSEMBLY Parts Diagram

42" Rear-Engine Riding Mower, 18hp

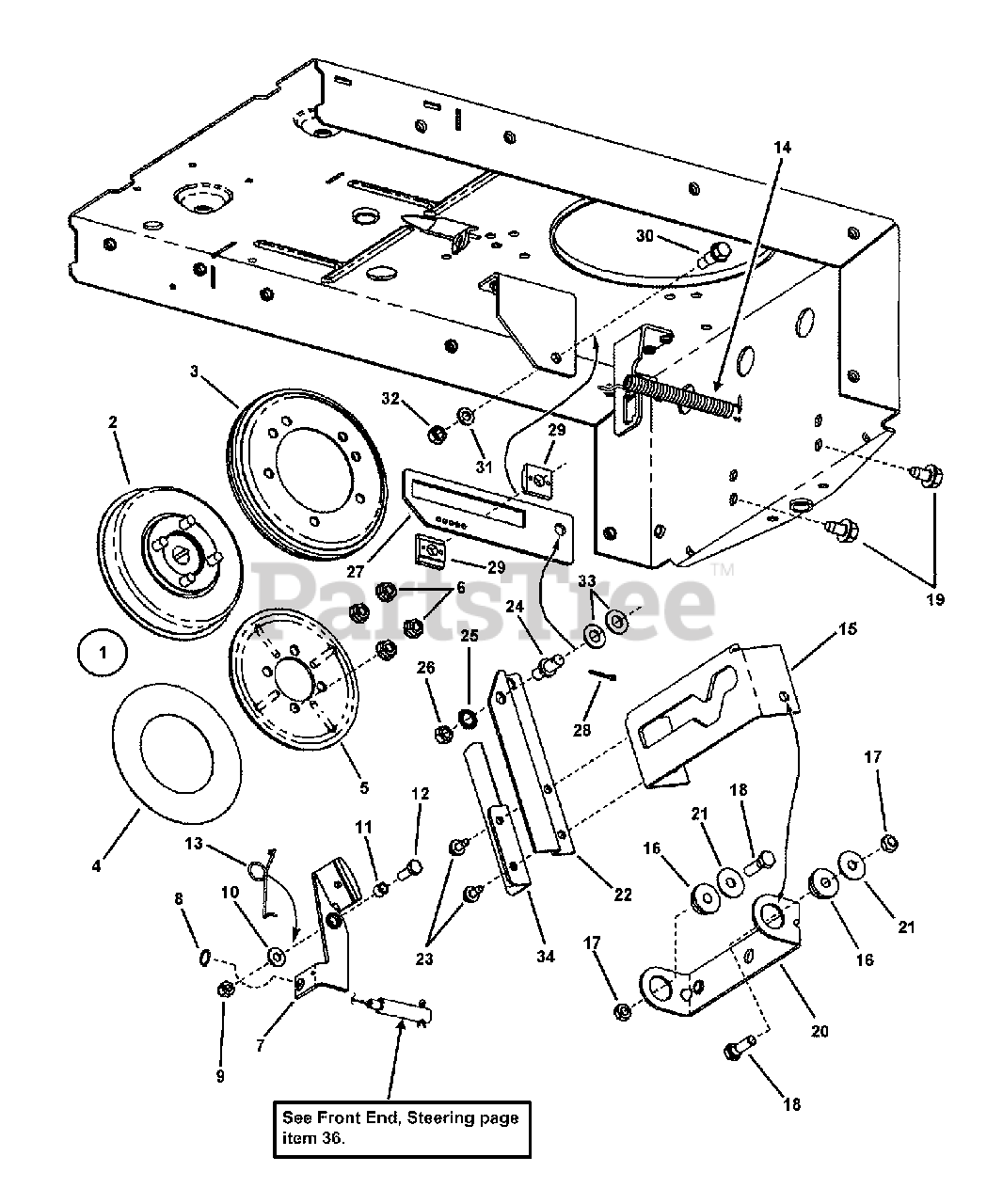

SMOOTH CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Snapper 7053114

ASSEMBLY, Smooth Clutch (Incl. items 2 thru 6)
(Superseded to 7600208YP)

Note: Non-Asbestos

$

$

Not available

2

Snapper 7059443

ASSEMBLY, Driven Disc Hub
(Superseded to 7600142YP)

Note: Was 54243

$42.99

$

In Stock, Qty 20+

0

3

Snapper 7053103

DISC, Driven (rubber tire bonded to rim)
(Superseded to 7600135YP)

$42.99

$

In Stock, Qty 20+

0

4

Snapper 7014523

THRUST WASHER
(Superseded to 7014523YP)

$4.99

$

In Stock, Qty 20+

0

5

Snapper 7032331

PLATE, Drive Disc
(Superseded to 7032331YP)

$18.99

$

In Stock, Qty 20+

0

6

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

7

Snapper 7052497

ASSEMBLY, Brake Lever (Includes brake pad & rivet)
(Superseded to 7052497YP)

$13.99

$

In Stock, Qty 20+

0

8

Snapper 7012313

RING, 3/8" External Retaining
(Superseded to 7012313SM)

$3.99

$

In Stock, Qty 12

0

9

Snapper 7090303

NUT, 1/4-28 Hex Top Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 7

0

10

Snapper 7091294

WASHER, .28 x .63 x .06 Flat, GR5
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7072593

SPACER, Brake Arm Pivot
(Superseded to 7072593YP)

$5.49

$

In Stock, only 3 left!

0

12

Snapper 7091504

SCREW, 1/4-28 x 1" Hex Head Cap, (Washer Face) GR5
(Superseded to 7091504YP)

$4.49

$

In Stock, only 4 left!

0

13

Snapper 7072406

SPRING, Torsional Brake Return
(Superseded to 7072406YP)

$

$

Not available

14

Snapper 7013885

SPRING, Clutch & Brake
(Superseded to 7013885YP)

$

$

Not available

15

Snapper 7046162

LIFT, Yoke
(Superseded to 7046162BMYP)

$22.99

$

In Stock, only 2 left!

0

16

Snapper 7011048

BEARING, Yoke
(Superseded to 7011048YP)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7092062

NUT, 5/16-24 Hex Center Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap, GR5
(Superseded to 703301)

$3.99

$

In Stock, only 3 left!

0

19

Snapper 7091198

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap
(Superseded to 7091198SM)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 7033291

COLLAR, Yoke
(Superseded to 7033291YP)

$56.99

$

Usually ships in 2-12 days

0

21

Snapper 7011763

FENDER WASHER, 5/16"
(Superseded to 7011763SM)

$4.49

$

In Stock, only 3 left!

0

22

Snapper 7073733

ARM, Yoke
(Superseded to 7073733YP)

$9.49

$

Usually ships in 2-12 days

0

23

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 7

0

24

Snapper 7015464

STUD, Clutch Link (3/8-24 thread)
(Superseded to 7015464YP)

$7.49

$

In Stock, only 1 left!

0

25

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

26

Snapper 7091630

NUT, 3/8-24 Hex, GR5 or B
(Superseded to 703895)

$4.49

$

In Stock, only 1 left!

0

27

Snapper 7047190

BRACKET, Slide
(Superseded to 7047190BMYP)

$12.99

$

In Stock, only 1 left!

0

28

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7014663

SLIDE HALF
(Superseded to 7014663YP)

$4.49

$

In Stock, only 4 left!

0

30

Snapper 7014664

BOLT, 5/16-18 Shoulder
(Superseded to 7014664SM)

$1.99

$

Usually ships in 2-12 days

0

31

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

32

Snapper 7091511

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

33

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

34

Snapper 7059068

ASSEMBLY, Leaf Spring
(Superseded to 7600141YP)

$59.99

$

In Stock, only 1 left!

0
