421823BVE (84880) - Snapper 42" Rear-Engine Riding Mower, 18hp RAILS, LIFT ARMS, CAM LIFT PT.1 Parts Diagram

42" Rear-Engine Riding Mower, 18hp

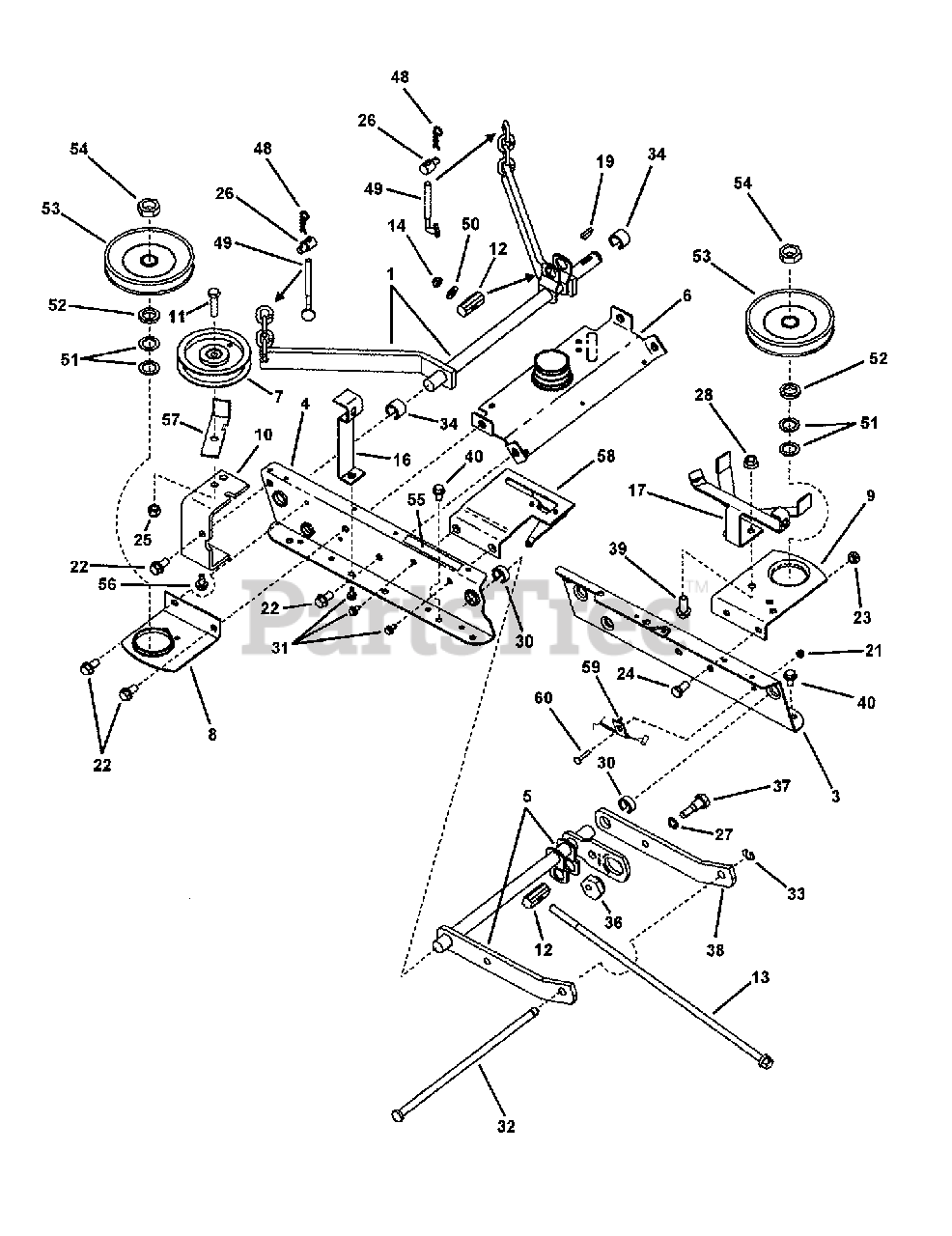

RAILS, LIFT ARMS, CAM LIFT PT.1 Parts Diagram

  • Title

1

Snapper 7041248

ASSEMBLY, Rear Lift Arm
(Superseded to 7041248YP)

$188.99

$

Usually ships in 2-12 days

0

3

Snapper 7073269

RAIL, Left Half
(Superseded to 7073269YP)

$27.99

$

Usually ships in 2-12 days

0

4

Snapper 7036430

RAIL, Deck Lift, Right Hand
(Superseded to 7036430YP)

Note: Was 43848

$54.99

$

In Stock, only 1 left!

0

5

Snapper 7041578

STUCTURE, Front Lift Arm

$

$

Not available

6

Snapper 7040502

WELDMENT, Top Brace
(Superseded to 7040502YP)

$81.99

$

Usually ships in 2-12 days

0

7

Snapper 7018574

IDLER, 4-1/8" Flat
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 20+

0

8

Snapper 7034759

BRACE, R.H. Spindle
(Superseded to 7034759YP)

$23.99

$

Usually ships in 2-12 days

0

9

Snapper 7038096

BRACE, L.H. Spindle
(Superseded to 7038096YP)

$16.99

$

Usually ships in 2-12 days

0

10

Snapper 7034763

BRACE/IDLER Mounting Bracket

$12.99

$

In Stock, only 1 left!

0

11

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, GR5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

12

Snapper 7034213

PIVOT, Leveling
(Superseded to 7034213YP)

$4.99

$

Usually ships in 2-12 days

0

13

Snapper 7027944

ROD, Leveling

$4.99

$

In Stock, only 1 left!

0

14

Snapper 7090499

NUT, 3/8-24 Hex Top Lock
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7034857

BELT GUIDE, 42"

$

$

Not available

17

Snapper 7042613

GUIDE, Belt, 42" RER (Weldment)

$

$

Not available

19

Snapper 7013861

KEY, 3/16 x 7/8" Woodruff
(Superseded to 7013861YP)

$3.49

$

In Stock, Qty 5

0

21

Snapper 7091290

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

22

Snapper 7090815

SCREW, 3/8-16 x 3/4" Hex Washer Self-Tap
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

23

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

24

Snapper 7090134

SCREW, 3/8-16 x 3/4" Hex Head Cap, GR5
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

25

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

26

Snapper 7028200

SWIVEL, Adjustable
(Superseded to 7028200SM)

$13.99

$

In Stock, only 2 left!

0

27

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

Usually ships in 2-12 days

0

28

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

30

Snapper 7012067

RING, Front Lift Arm (Red)
(Superseded to 7012067YP)

$4.49

$

In Stock, only 2 left!

0

31

Snapper 7090858

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

32

Snapper 7022717

ROD, Deck Support (Front Lift Arm to Front End)
(Superseded to 7022717YP)

$48.99

$

Usually ships in 2-12 days

0

33

Snapper 7017847

RING, .438 External Retaining
(Superseded to 7017847YP)

$4.49

$

Usually ships in 2-12 days

0

34

Snapper 7012068

RING, Rear Lift Arm (Blue)
(Superseded to 7012068YP)

$5.99

$

Usually ships in 2-12 days

0

36

Snapper 7015447

ECCENTRIC, Leveling
(Superseded to 7015447YP)

$22.99

$

Usually ships in 2-12 days

0

37

Snapper 7015495

BOLT, 3/8-24 x 3/4" Shoulder, GR5
(Superseded to 7015495YP)

$

$

Not available

38

Snapper 7032997

ARM, Front Lift (Left Side)
(Superseded to 7032997YP)

$16.99

$

In Stock, only 1 left!

0

39

Snapper 7027198

BOLT, 3/8-16 x 1" Hex Flange Lock, GR5
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

40

Snapper 7090606

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

48

Snapper 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

49

Snapper 7028728

ADJUSTER, Chain (5/16-18 thread)
(Superseded to 703827)

$10.99

$

In Stock, Qty 12

0

50

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

51

Snapper 7010935

WASHER, .77 x 1.13 x .06 Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

52

Snapper 7014526

SPACER

$

$

Not available

53

Snapper 7014532

PULLEY, 5" O. D.
(Superseded to 7014532YP)

$53.99

$

In Stock, only 3 left!

0

54

Snapper 7074467

NUT, 3/4-16 Hex Jam, GR 8
(Superseded to 7074467SM)

$4.49

$

In Stock, Qty 10

0

55

Snapper 7073066

DECAL, Blade Engagement, 42"
(Superseded to 7073066YP)

$5.99

$

Usually ships in 2-12 days

0

56

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

57

Snapper 7032368

BELT GUIDE

$

$

Not available

58

Snapper 7058969

ASSEMBLY, Clutch Plate
(Superseded to 7600140YP)

$41.99

$

In Stock, only 2 left!

0

59

Snapper 7073216

CABLE, No-Mow-In-Reverse
(Superseded to 7073216YP)

$32.99

$

In Stock, only 3 left!

0

60

Snapper 7092051

BOLT, #10-24 x 1" Flat Head Square Neck
(Superseded to 7092051YP)

$5.49

$

Usually ships in 2-12 days

0
