421823BVE (84880) - Snapper 42" Rear-Engine Riding Mower, 18hp MAIN CASE PT.1 Parts Diagram

42" Rear-Engine Riding Mower, 18hp

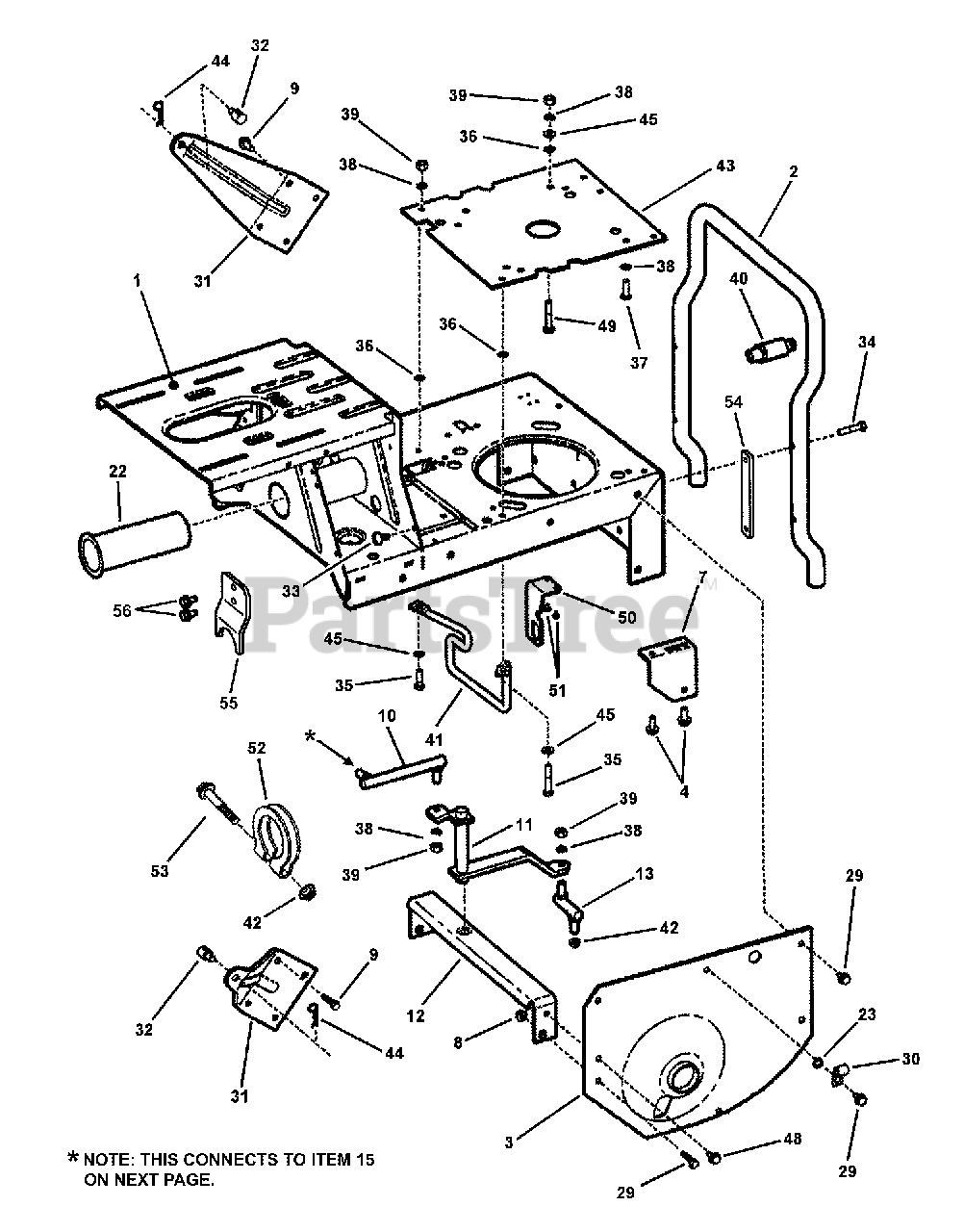

MAIN CASE PT.1 Parts Diagram

  • Title

1

Snapper 7053698

WELDMENT, Main Case (Commercial)
(Superseded to 7053698YP)

$267.99

$

Usually ships in 2-12 days

0

2

Snapper 7033587

BUMPER (1-Piece) (42" Deck)
(Superseded to 7033587YP)

$149.99

$

In Stock, only 1 left!

0

3

Snapper 7037285

FENDER, Left Hand (Standard)
(Superseded to 7301302YP)

Note: see Chain Case, L.H. Fender Page for related parts

$0.00

$

Usually ships in 2-12 days

0

4

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock, GR5
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

7

Snapper 7047189

BRACKET, Drive Support
(Superseded to 7047189BMYP)

$12.99

$

Usually ships in 2-12 days

0

8

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7090793

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 7090793YP)

$3.49

$

In Stock, only 3 left!

0

10

Snapper 7023676

SHIFT LINK, Long
(Superseded to 7023676YP)

$34.99

$

In Stock, only 3 left!

0

11

Snapper 7041384

WELDMENT, Shift Arm
(Superseded to 7041384YP)

$51.99

$

Usually ships in 2-12 days

0

12

Snapper 7033799

CROSS BRACE
(Superseded to 7033799YP)

$15.99

$

Usually ships in 2-12 days

0

13

Snapper 7011018

SHFT LINK, Short (5/16-24 thread)
(Superseded to 7011018YP)

$18.99

$

In Stock, Qty 16

0

22

Snapper 7074650

BUSHING, Pivot
(Superseded to 7074650YP)

$12.99

$

In Stock, only 3 left!

0

23

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

29

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

30

Snapper 7012652

CLIP, Wire
(Superseded to 7012652YP)

$3.99

$

Usually ships in 2-12 days

0

31

Snapper 7034299

WING, Rear Deck
(Superseded to 7034299YP)

$20.99

$

Usually ships in 2-12 days

0

32

Snapper 7028200

SWIVEL, Adjustable
(Superseded to 7028200SM)

$13.99

$

In Stock, only 2 left!

0

33

Snapper 7091272

FASTENER, 1/4" Ratchet
(Superseded to 7091272YP)

$3.99

$

In Stock, Qty 13

0

34

Snapper 7091506

SCREW, 5/16-18 x 1-1/2" Hex Washer Self-Tap
(Superseded to 704318)

$4.49

$

Usually ships in 2-12 days

0

35

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap, GR5
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

36

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

38

Snapper 7091315

WASHER, .32 x .58 x .08 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

39

Snapper 7091297

NUT, 5/16-24 Hex, GR5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

40

Snapper 7027972

ASSEMBLY, Oil Valve
(Superseded to 7027972SM)

$24.99

$

In Stock, Qty 9

0

41

Snapper 7028769

BELT GUIDE, 4216
(Superseded to 7028769YP)

$19.99

$

Usually ships in 2-12 days

0

42

Snapper 7010969

NUT, 5/16-24 Flange Lock (Large)
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

43

Snapper 7074946

PLATE, Engine (Kohler Engine)
(Superseded to 7074946YP)

$22.99

$

Usually ships in 2-12 days

0

44

Snapper 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

45

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 3 left!

0

48

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR5
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 9

0

49

Snapper 7091513

SCREW, 5/16-24 x 1-3/4" Hex Head Cap, GR5
(Superseded to 7091513YP)

$4.49

$

In Stock, Qty 14

0

50

Snapper 7073735

BRACKET, Switch
(Superseded to 7073735YP)

$12.99

$

Usually ships in 2-12 days

0

51

Snapper 7090981

SCREW, #10-32 x 1/4" Hex Washer Self-Tap
(Superseded to 704061)

$3.99

$

In Stock, Qty 16

0

52

Snapper 7031100

TUBE CLAMP
(Superseded to 7031100YP)

$10.99

$

Usually ships in 2-12 days

0

53

Snapper 7090358

SCREW, 5/16-24 x 2-1/2" Hex Head Cap, GR5
(Superseded to 7090358YP)

$4.49

$

In Stock, only 1 left!

0

54

Snapper 7071754

PLATE, Bumper Spacer
(Superseded to 7071754YP)

$23.99

$

Usually ships in 2-12 days

0

55

Snapper 7074210

BRACKET, Belt Adjuster
(Superseded to 7074210YP)

$16.99

$

Usually ships in 2-12 days

0

56

Snapper 7091198

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap
(Superseded to 7091198SM)

$4.49

$

Usually ships in 2-12 days

0
