421823BVE (84880) - Snapper 42" Rear-Engine Riding Mower, 18hp FUEL TANK AND OPERATORS SEAT Parts Diagram

42" Rear-Engine Riding Mower, 18hp

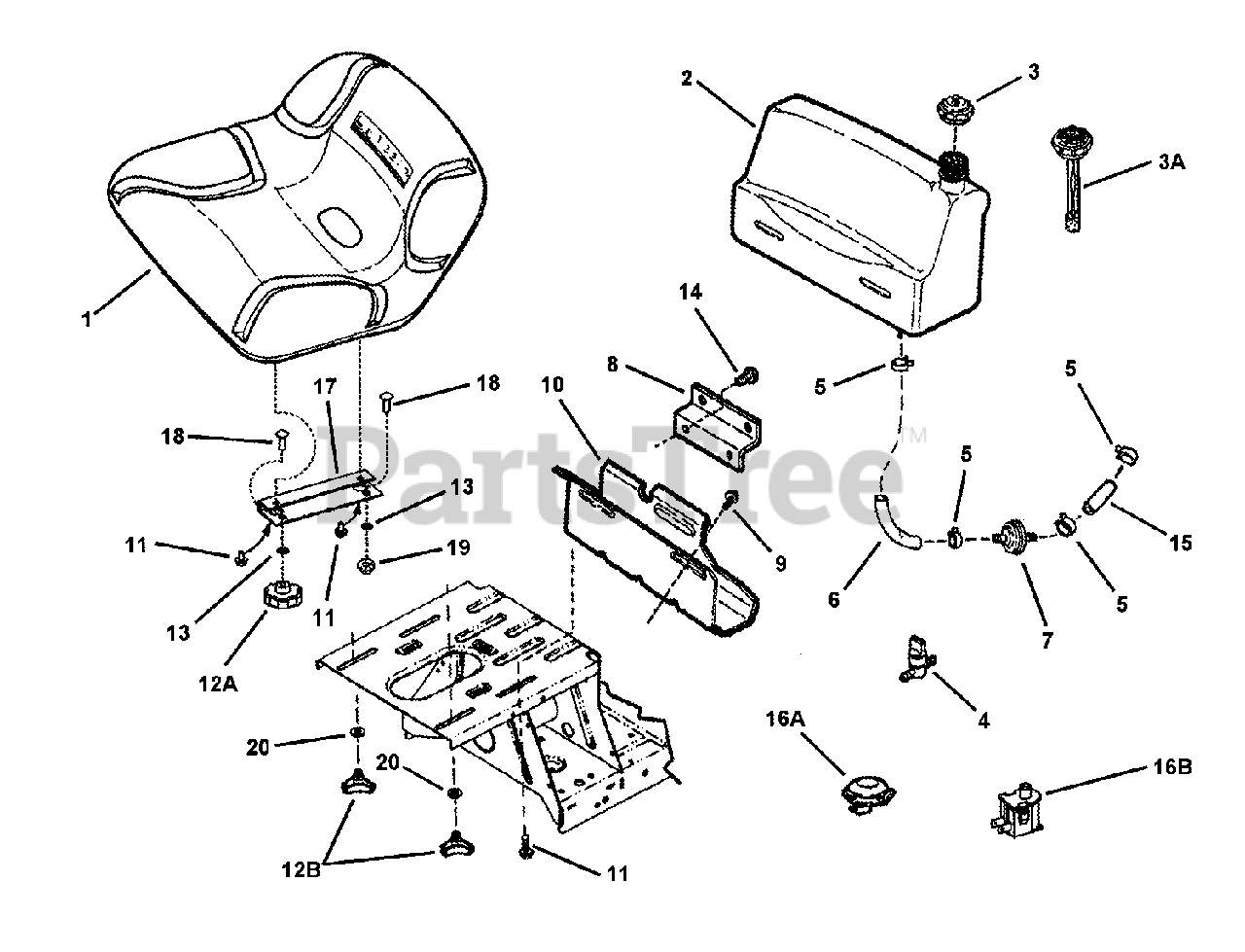

FUEL TANK AND OPERATORS SEAT Parts Diagram

  • Title

1

Snapper 7075071

SEAT, V2400 w/slotted Switch Hole
(Superseded to 7600194YP)

$262.99

$

Usually ships in 2-12 days

0

2

Snapper 7051905

ASSEMBLY, Fuel Tank (Includes item 3)
(Superseded to 7051905YP)

$201.99

$

In Stock, only 2 left!

0

3

Snapper 7012515

CAP, Fuel Tank
(Superseded to 7012515YP)

$19.99

$

In Stock, only 3 left!

0

3A

Snapper 7019377

CAP, Fuel Tank w/Gauge
(Superseded to 7019377YP)

$34.99

$

Usually ships in 2-12 days

0

4

Snapper 7016325

VALVE, Fuel Shut-Off (Accessory)
(Superseded to 7016325SM)

$19.99

$

In Stock, Qty 11

0

5

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: replaces 12222

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7076272

HOSE, Fuel (1/4" I.D. x 8-1/2" long)
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

7

Snapper 7014359

FILTER, Fuel (In-Line)
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

8

Snapper 7036549

BRACKET, Tank, Tall (for Briggs 16HP)
(Superseded to 7036549YP)

$35.99

$

Usually ships in 2-12 days

0

9

Snapper 7091542

SCREW, 5/16-18 x 1/2" Pan Head Self-Tap (Torx #T-40)
(Superseded to 703932)

$4.99

$

Usually ships in 2-12 days

0

10

Snapper 7033377

BRACKET, Fuel Tank (Rear)
(Superseded to 7033377BMYP)

$

$

Not available

11

Snapper 7091038

BOLT, 5/16-18 x 1/2" Hex Flange Nyloc
(Superseded to 7091038YP)

$4.49

$

In Stock, Qty 9

0

12A

Snapper 7023735

KNOB, Seat Adjusting, 5/16-18 thread
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

12B

Snapper 7023191

KNOB, Seat Adjusting (5/16-18 thread)
(Superseded to 7023191SM)

$6.99

$

In Stock, only 2 left!

0

13

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7090858

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

15

Snapper 7073240

HOSE, Fuel (5" long)
(Superseded to 7073240SM)

Note: Was 32038

$24.99

$

Usually ships in 2-12 days

0

16A

Snapper 7029211

SWITCH, Seat (NC) (for 3" round hole)
(Superseded to 1714771SM)

$20.99

$

In Stock, only 1 left!

0

16B

Snapper 7023354

SWITCH, Seat (NC) (for slotted hole)
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

17

Snapper 7075018

BRACKET, Seat
(Superseded to 7075018BMYP)

$15.99

$

Usually ships in 2-12 days

0

18

Snapper 7091303

BOLT, 5/16-18 x 1" Square Neck Carriage, GR5 YZ
(Superseded to 703800)

Note: was 7091714

$3.99

$

In Stock, Qty 7

0

19

Snapper 7090672

NUT, 5/16-18 Hex Flange Top Lock
(Superseded to 7090672YP)

$2.99

$

Usually ships in 2-12 days

0

20

Snapper 7013849

SPACER, .33 x .63 x .156
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0
