421823BVE (84880) - Snapper 42" Rear-Engine Riding Mower, 18hp FRONT END, STEERING Parts Diagram

42" Rear-Engine Riding Mower, 18hp

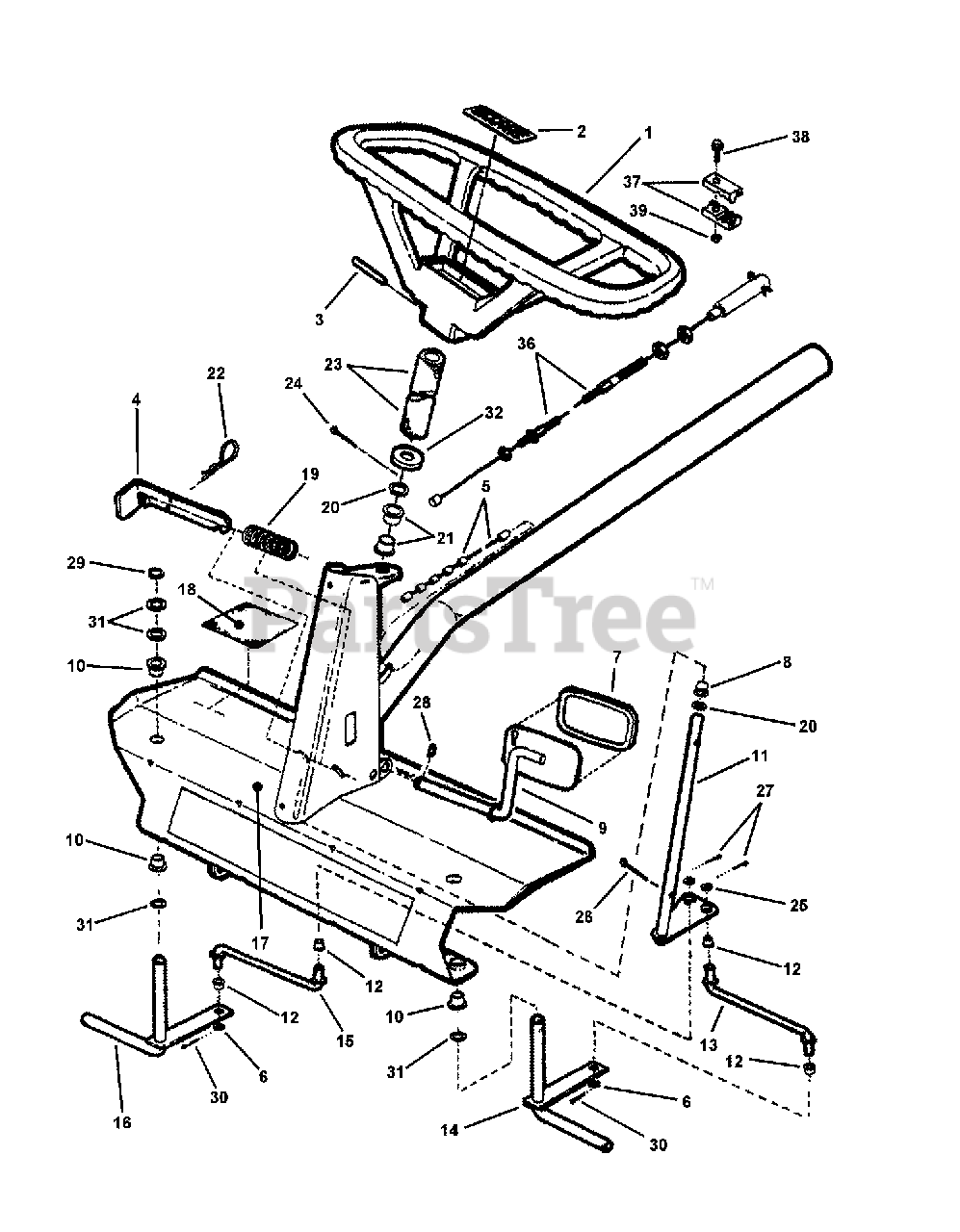

FRONT END, STEERING Parts Diagram

  • Title

1

Snapper 7058030

ASSEMBLY, Steering Wheel (for 5/8" shaft)
(Superseded to 7058030YP)

Note: Includes item 2

$125.99

$

In Stock, only 1 left!

0

2

Snapper 7023781

LOGO, Steering Wheel
(Superseded to 7023781YP)

$15.99

$

In Stock, only 1 left!

0

3

Snapper 7013862

PIN, 1/4 x 1-1/2" Roll
(Superseded to 7013862YP)

$4.49

$

In Stock, Qty 15

0

4

Snapper 7038243D

LATCH, Parking Brake
(Superseded to 7038243DYP)

$18.99

$

Usually ships in 2-12 days

0

5

Snapper 7074131

CABLE, Clutch/Brake (55" long)
(Superseded to 7074131YP)

Note: used on 33" & 42" Models

$24.99

$

In Stock, only 1 left!

0

6

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7011815

PAD, Clutch/Brake Pedal
(Superseded to 7011815YP)

$11.99

$

In Stock, only 4 left!

0

8

Snapper 7010694

BUSHING, Nylon
(Superseded to 7010694YP)

$4.49

$

In Stock, only 2 left!

0

9

Snapper 7047888BM

WELDMENT, Clutch/Brake Pedal
(Superseded to 7047888BMYP)

$45.99

$

Usually ships in 2-12 days

0

10

Snapper 7010986

BEARING, Nylon
(Superseded to 7010986YP)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7046232

WELDMENT, Steering Shaft
(Superseded to 7046232YP)

$

$

Not available

12

Snapper 7013321

BUSHING, Tie Rod
(Superseded to 7013321YP)

$4.49

$

In Stock, Qty 20+

0

13

Snapper 7012541

TIE ROD, Left Hand (9.91" long)
(Superseded to 7012541BMYP)

$14.99

$

In Stock, only 1 left!

0

14

Snapper 7041687

KING PIN Weldment, Left Hand
(Superseded to 7041687BMYP)

$58.99

$

In Stock, only 1 left!

0

15

Snapper 7012540

TIE ROD, Right Hand (9.91" long)
(Superseded to 7012540YP)

$14.99

$

In Stock, only 1 left!

0

16

Snapper 7041688

KING PIN Weldment, Right Hand
(Superseded to 7041688YP)

$59.99

$

In Stock, only 1 left!

0

17

Snapper 7053266

WELDMENT, Front Axle, Wide
(Superseded to 7053266YP)

$428.99

$

Usually ships in 2-12 days

0

18

Snapper 7014048

FOOT PAD, Long
(Superseded to 7104571YP)

$17.99

$

In Stock, Qty 5

0

19

Snapper 7015444

SPRING, Parking Brake Latch
(Superseded to 7015444YP)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 7090183

WASHER, .66 x 1.31 x .09 Flat
(Superseded to 7090183YP)

$4.49

$

In Stock, only 2 left!

0

21

Snapper 7046158

BUSHING, Nylon
(Superseded to 7046158YP)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7011714

HAIR PIN 2-1/4"
(Superseded to 7011714YP)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper 7023667

FOAM COVER, Steering Shaft
(Superseded to 7023667YP)

$8.49

$

In Stock, only 3 left!

0

24

Snapper 7090296

PIN, 3/16 x 1" Cotter
(Superseded to 7090296YP)

$4.49

$

In Stock, Qty 8

0

25

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

26

Snapper 7091515

PIN, 3/16 x 1-1/2" Cotter
(Superseded to 703983)

Note: Was 90753

$4.49

$

In Stock, Qty 13

0

27

Snapper 7091516

PIN, 5/32 x 1" Cotter
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

28

Snapper 7010776

RING, 1/2" External Retaining (Heavy Duty)
(Superseded to 7010776YP)

$3.99

$

In Stock, only 1 left!

0

29

Snapper 7010746

RING, 3/4" External Retaining
(Superseded to 703975)

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7091598

PIN, 1/8 x 3/4" Cotter
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

31

Snapper 7010935

WASHER, .77 x 1.13 x .06 Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

32

Snapper 7023671

COVER, Steering Shaft
(Superseded to 7023671YP)

$4.49

$

In Stock, Qty 5

0

36

Snapper 7072648

CABLE, Brake (29" long)
(Superseded to 7101192YP)

$27.99

$

In Stock, Qty 20+

0

37

Snapper 7034174

CONNECTOR, Cable
(Superseded to 7034174YP)

$4.99

$

Usually ships in 2-12 days

0

38

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap, GR5
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

39

Snapper 7090372

NUT, 1/4-20 Hex Center Lock, GR5 or B
(Superseded to 703954)

$

$

Not available
