421823BVE (84880) - Snapper 42" Rear-Engine Riding Mower, 18hp DECK COVER, BELTS, BLADE BRAKE Parts Diagram

42" Rear-Engine Riding Mower, 18hp

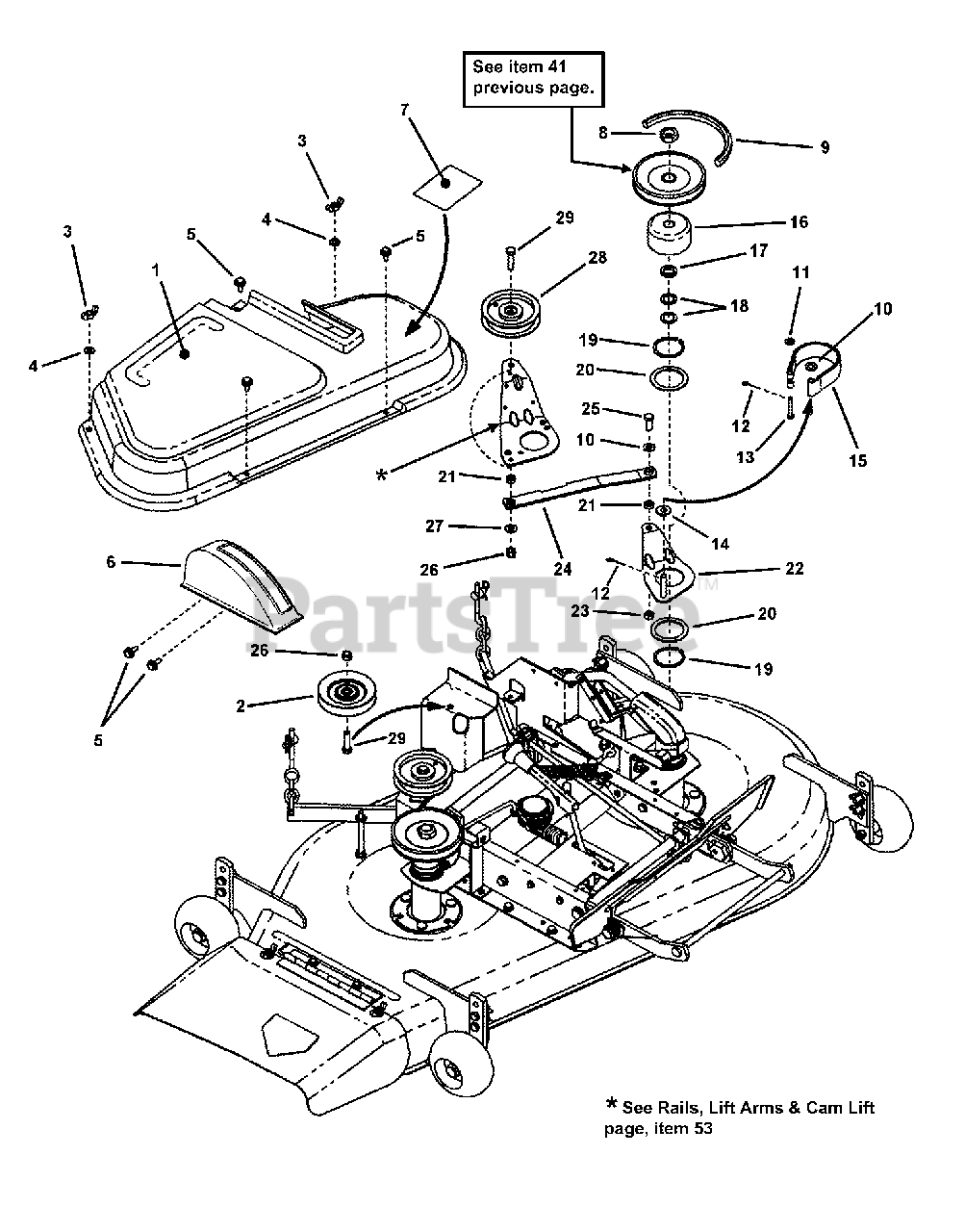

DECK COVER, BELTS, BLADE BRAKE Parts Diagram

  • Title

1

Snapper 7043834

COVER, Belt, 42" RER
(Superseded to 7043834YP)

$231.99

$

Usually ships in 2-12 days

0

2

Snapper 7029624

PULLEY, Seam Welded Idler
(Superseded to 7029624YP)

$35.99

$

In Stock, Qty 7

0

3

Snapper 7091537

WING-NUT, 5/16-18
(Superseded to 7091537YP)

Note: Was 90492

$4.49

$

In Stock, only 3 left!

0

4

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 3 left!

0

5

Snapper 7090741

SCREW, 1/4-20 x 5/8" Hex Head w/Free Spinning Washer
(Superseded to 703054)

Note: Was 91016

$4.49

$

In Stock, Qty 5

0

6

Snapper 7027921

COVER, Lift Quadrant

$

$

Not available

7

Snapper 7028995

DECAL, Brake/Blade Operation

$

$

Not available

8

Snapper 7074467

NUT, 3/4-16 Hex Jam, GR 8
(Superseded to 7074467SM)

$4.49

$

In Stock, Qty 10

0

9

Snapper 7028784

BELT, 5L Section (110.28" effective length)
(Superseded to 7028784YP)

$76.99

$

In Stock, only 1 left!

0

10

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7014304

PIN, 1/4 x 1-5/8" Clevis
(Superseded to 7014304YP)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7014314

SPACER, .39 x 1.0 x .31 Nylon
(Superseded to 7014314YP)

$4.99

$

In Stock, only 1 left!

0

15

Snapper 7034852

BAND, Brake (Formed)
(Superseded to 7600133YP)

$41.99

$

In Stock, Qty 7

0

16

Snapper 7035378

DRUM, Brake Spindle
(Superseded to 7035378YP)

$11.99

$

In Stock, only 2 left!

0

17

Snapper 7014526

SPACER

$

$

Not available

18

Snapper 7010935

WASHER, .77 x 1.13 x .06 Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 3 left!

0

20

Snapper 7014795

WASHER, Nylon

$

$

Not available

21

Snapper 7014527

SPACER
(Superseded to 7014527YP)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 7047862

WELDMENT, Brake Arm
(Superseded to 7047862YP)

$82.99

$

Usually ships in 2-12 days

0

23

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

24

Snapper 7034297

LINK

$

$

Not available

25

Snapper 7090160

SCREW, 3/8-24 x 1" Hex Head Cap, GR5
(Superseded to 7090160YP)

$3.49

$

In Stock, only 2 left!

0

26

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

27

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

28

Snapper 7018574

IDLER, 4-1/8" Flat
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 20+

0

29

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, GR5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0
