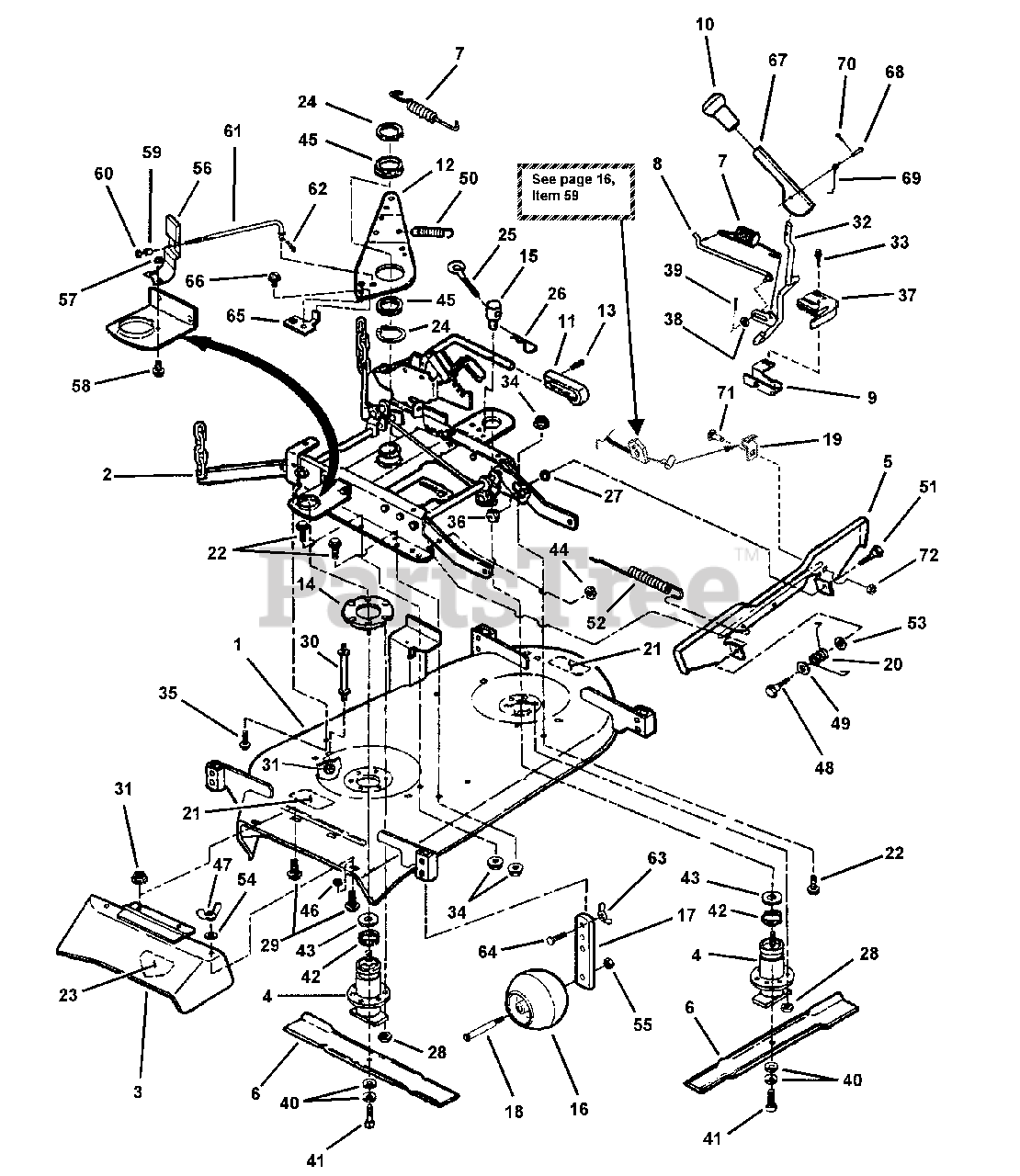

421620BVE (84586) - Snapper 42" Rear-Engine Riding Mower, 16hp Cutting Decks, Deflectors Parts Diagram

42" Rear-Engine Riding Mower, 16hp

Cutting Decks, Deflectors Parts Diagram

  • Title

1

Snapper 7063040

WELDMENT, Deck
(Superseded to 7063040YP)

Note: Was 42645

$900.99

$

Usually ships in 2-12 days

0

2

ASSEMBLY, Rail

Note: (See "Rails, Lift Arms, Cam Lift" illustration & parts list for Parts Breakdown)

$

$

Not available

3

Snapper 7051401

ASSEMBLY, Side Chute
(Superseded to 7051401YP)

Note: (Includes Decal, Item 23)

$159.99

$

Usually ships in 2-12 days

0

4

Snapper 7059628

ASSEMBLY, Spindle
(Superseded to 7059628BMYP)

$341.99

$

Usually ships in 2-12 days

0

5

Snapper 7073267

PEDAL, Blade Stop Control
(Superseded to 7073267YP)

$45.99

$

Usually ships in 2-12 days

0

6

Snapper 7026691

BLADE, 21" Standard. Lift
(Superseded to 7026691BZYP)

$23.99

$

In Stock, Qty 20+

0

7

Snapper 7014168

SPRING, Belt
(Superseded to 7014168YP)

$6.49

$

In Stock, Qty 9

0

8

Snapper 7012055

ROD, Idler
(Superseded to 7012055YP)

$15.99

$

In Stock, only 3 left!

0

9

Snapper 7038021

MOUNT, Handle
(Superseded to 7038021YP)

$13.99

$

Usually ships in 2-12 days

0

10

Snapper 7046874

GRIP, Handle
(Superseded to 7046874YP)

$9.99

$

In Stock, Qty 8

0

11

Snapper 7023658

GRIP, Height Adjustment Lever
(Superseded to 7023658YP)

$5.49

$

Usually ships in 2-12 days

0

12

Snapper 7034758

ARM, Idler
(Superseded to 7034758YP)

$13.99

$

Usually ships in 2-12 days

0

13

Snapper 7090844

PIN, 3/16 x 3/4" Roll
(Superseded to 2816169SM)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7053034

ASSEMBLY, Spindle Ring
(Superseded to 7053034YP)

$27.99

$

Usually ships in 2-12 days

0

15

Snapper 7028200

SWIVEL, Adjustable
(Superseded to 7028200SM)

$13.99

$

In Stock, only 2 left!

0

16

Snapper 7029264

WHEEL, Gage
(Superseded to 7029264YP)

$14.99

$

In Stock, only 2 left!

0

17

Snapper 7035835

POST, Anti-Scalp
(Superseded to 7035835SM)

$20.99

$

In Stock, only 2 left!

0

18

Snapper 7029265

BOLT, Gage Wheel, 3/8-16 x 3-3/8" Hex Head Shoulder
(Superseded to 7029265SM)

$10.99

$

In Stock, Qty 5

0

19

Snapper 7073217

CLIP, Cable
(Superseded to 7073217YP)

$5.99

$

In Stock, Qty 8

0

20

Snapper 7015448

SPRING, Pedal
(Superseded to 7015448YP)

$6.49

$

In Stock, only 1 left!

0

21

Snapper 7014852

DECAL, Caution
(Superseded to 7101665YP)

$14.99

$

In Stock, Qty 5

0

22

Snapper 7090606

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

23

Snapper 7013010

DECAL, Danger
(Superseded to 7013010SM)

Note: Was 26831

$9.49

$

In Stock, Qty 10

0

24

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 3 left!

0

25

Snapper 7029244

BOLT, 5/16-18 x 3" Eye
(Superseded to 7029244YP)

$7.99

$

Usually ships in 2-12 days

0

26

Snapper 7091503

HAIRPIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

27

Snapper 7090390

WASHER, 3/8 Int. Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

28

Snapper 7091619

NUT, 3/8-16 Hex Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

29

Snapper 7091508

BOLT, 5/16-18 X 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

30

Snapper 7029303

STUD, 5/16-18 x 3-1/2"
(Superseded to 7029303YP)

$48.99

$

Usually ships in 2-12 days

0

31

Snapper 7091601

NUT, 5/16-18 Hex Fl. Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

32

Snapper 7046788

LEVER, Blade Engage
(Superseded to 7046788YP)

$54.99

$

Usually ships in 2-12 days

0

33

Snapper 7090299

SCREW, #10-32 x 1" Hex Washer Self-Tap, Grade 2
(Superseded to 7090299YP)

$4.49

$

Usually ships in 2-12 days

0

34

Snapper 7091601

NUT, 5/16-18 Hex Flge. Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

35

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Head, Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

36

Snapper 7015447

ECCENTRIC, Leveling
(Superseded to 7015447YP)

$22.99

$

Usually ships in 2-12 days

0

37

Snapper 7018524

SWITCH, Deck Interlock (NO)
(Superseded to 7018524YP)

$19.99

$

In Stock, Qty 9

0

38

Snapper 7091294

WASHER, 1 /4" Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

39

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

40

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

41

Snapper 7090824

SCREW, 3/8-24 x 1" Hex Head Cap, Grade 5
(Superseded to 7090824YP)

$4.99

$

In Stock, Qty 9

0

42

Snapper 7012670

RING, Tolerance
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 6

0

43

Snapper 7014526

SPACER

$

$

Not available

44

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

45

Snapper 7014795

WASHER, 2" I.D., Nylon

$

$

Not available

46

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

47

Snapper 7091537

WING-NUT, 5/16-18 Lock
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

48

Snapper 7015446

BOLT, 3/8-24 x 9/16" Shoulder
(Superseded to 7015446YP)

$5.49

$

Usually ships in 2-12 days

0

49

Snapper 7090250

WASHER, 1/2" Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

50

Snapper 7024341

SPRING, Return
(Superseded to 7024341YP)

$

$

Not available

51

Snapper 7015495

BOLT, 3/8-24 x 3/4" Shoulder
(Superseded to 7015495YP)

$

$

Not available

52

Snapper 7035669

SPRING, Latch
(Superseded to 7035669YP)

$8.49

$

In Stock, only 1 left!

0

53

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

54

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 2 left!

0

55

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

56

Snapper 7034754

SPRING BRAKE PAD

$

$

Not available

57

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, only 4 left!

0

58

Snapper 7090584

BOLT, 1/4-20 x 1/2" Hex Flange Lock
(Superseded to 7090584YP)

$3.99

$

Usually ships in 2-12 days

0

59

Snapper 7028786

BUSHING, 3/8" Snap Plastic
(Superseded to 7028786YP)

$3.49

$

Usually ships in 2-12 days

0

60

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

61

Snapper 7028754

LINK, Spindle Brake

$

$

Not available

62

Snapper 7090673

COTTER PIN, 1/16 x 1/2"
(Superseded to 703464)

$4.49

$

In Stock, only 1 left!

0

63

Snapper 7091049

WING-NUT, 3/8-16 Nyloc
(Superseded to 7091049SM)

$5.49

$

In Stock, only 2 left!

0

64

Snapper 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap, Grade 5
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

65

Snapper 7043806

EXTENSION, Idler Arm

$

$

Not available

66

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Head, Self-Tap
(Superseded to 703583)

Note: Was 90302

$4.99

$

In Stock, Qty 20+

0

67

Snapper 7046567

HANDLE, Blade Engagement
(Superseded to 7046567BMYP)

$13.99

$

In Stock, only 2 left!

0

68

Snapper 7091974

PIN, 3/16 x 1" Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 5

0

69

Snapper 7046648

SPRING, Torsion
(Superseded to 7046648YP)

$5.49

$

In Stock, only 4 left!

0

70

Snapper 7091604

PIN, 3/32 x 1/2" Cotter
(Superseded to 703978)

Note: Was 90005

$3.99

$

In Stock, Qty 20+

0

71

Snapper 7091530

BOLT, 1/4-20 x 3/4" Carriage
(Superseded to 7091530SM)

Note: Was 91776

$3.99

$

In Stock, only 1 left!

0

72

Snapper 7091576

NUT, 1/4-20 Hex, Grade 5 or B
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0
